| Capacity | : | 784 lb |
| Color | : | Gray |
| Domestic/Import | : | Domestic |
| Height | : | 3 in |
| Length | : | 52 in |
| Material | : | Concrete/Foam |
| Mounting Type | : | Belly Band |
| Width | : | 52 in |

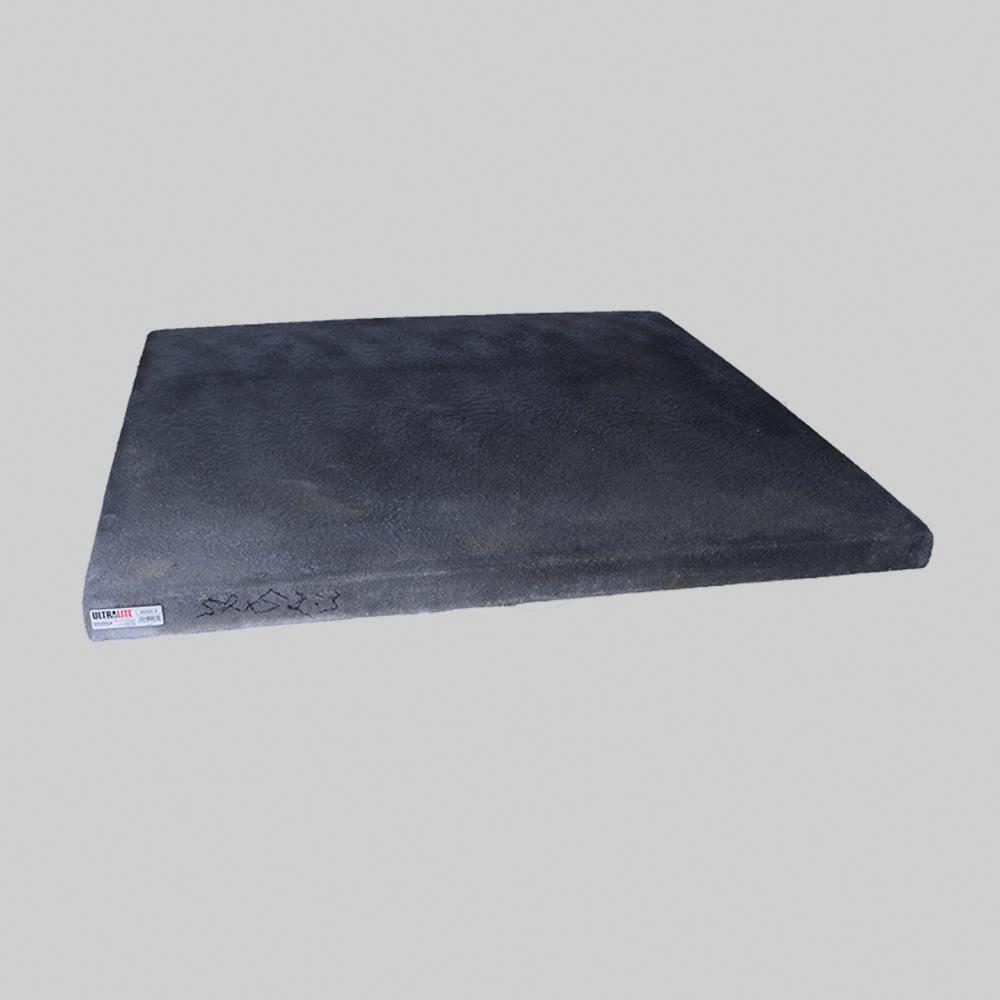

The UltraLite® equipment pads are composed of type I expanded polystyrene foam (EPS) having a nominal 1 lb/cu-ft (16 kg/cu-m) density. The pads are molded-in a form in which a cement slurry and polypropylene ber mat are bonded to five sides of the EPS foam. The pad is offered in both a 2 in (51 mm) or 3 in (76 mm) THK. The composite coating is approximately 7/32 in (5.6 mm) to 1/4 in (6.4 mm) THK on the pad surface. The products are available in various sizes as indicated in package metrics.
DiversiTech® UltraLite® Equipment Pad, 784 lb Capacity, Belly Band Mounting, Concrete/Foam, Gray, 52 in Length, 52 in Width, 3 in Height, Domestic/Import: Domestic
- Extremely lightweight, The UltraLite® pad is a concrete pad at the weight of plastic, about 2.5 lb/sq-ft
- Concrete outer skin and EPS foam core provide flexibility and vibration dampening
- Flat bottom design provides excellent resistance to sinking and settling
- The textured surface of The UltraLite® prevents equipment sliding and allows water drainage
- Drillable for securing unit (1/4 x 1-1/4 in Tapcon® recommended), either side or top surface
- Freeze/thaw, UV, chemical and flame-resistant for long-term life outdoors
- Tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution
- Resistant to heating caused by the compressor and the surface is resistant to heat from incidental torch flame during installation
