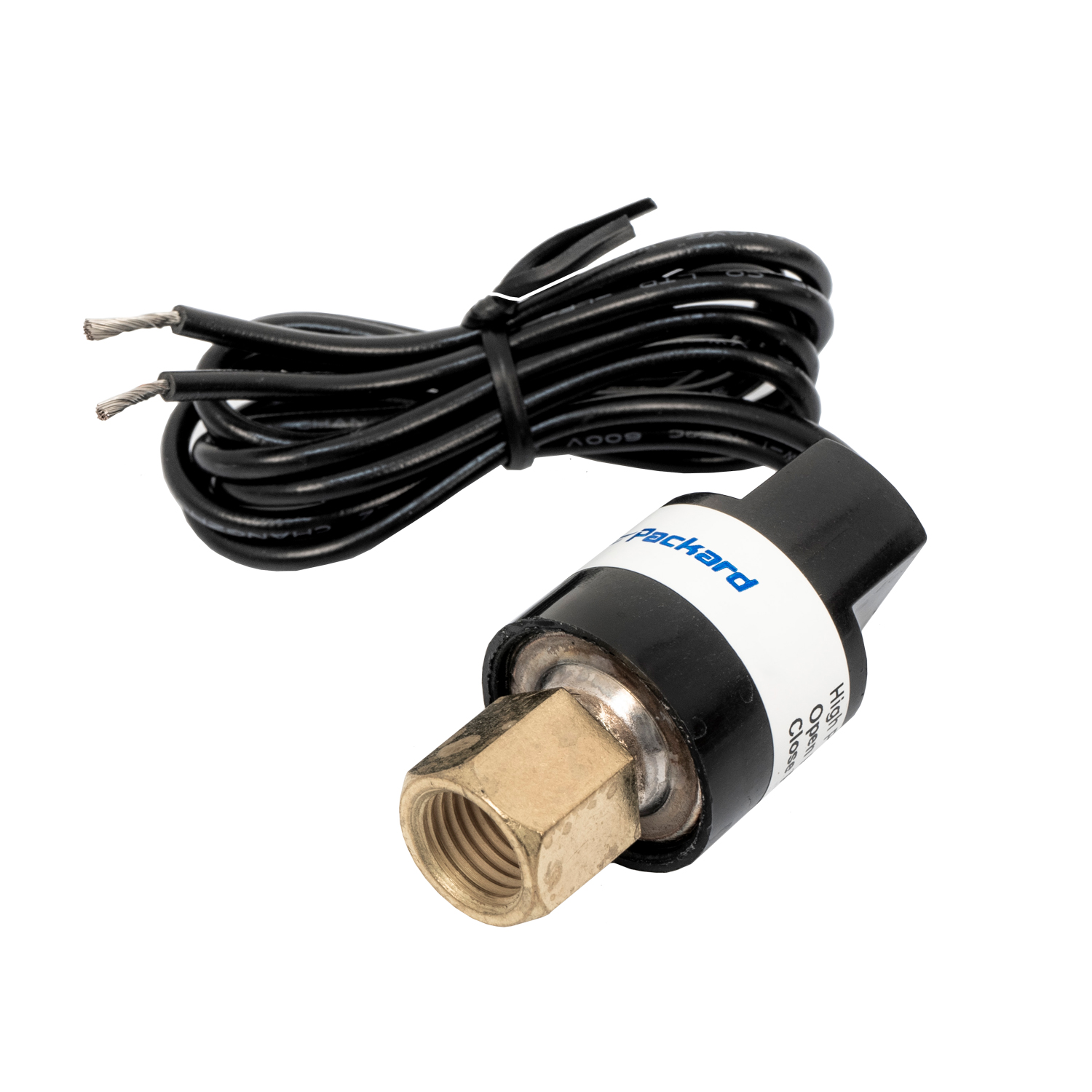

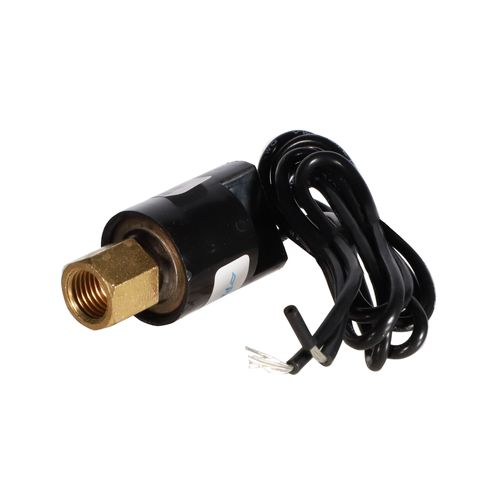

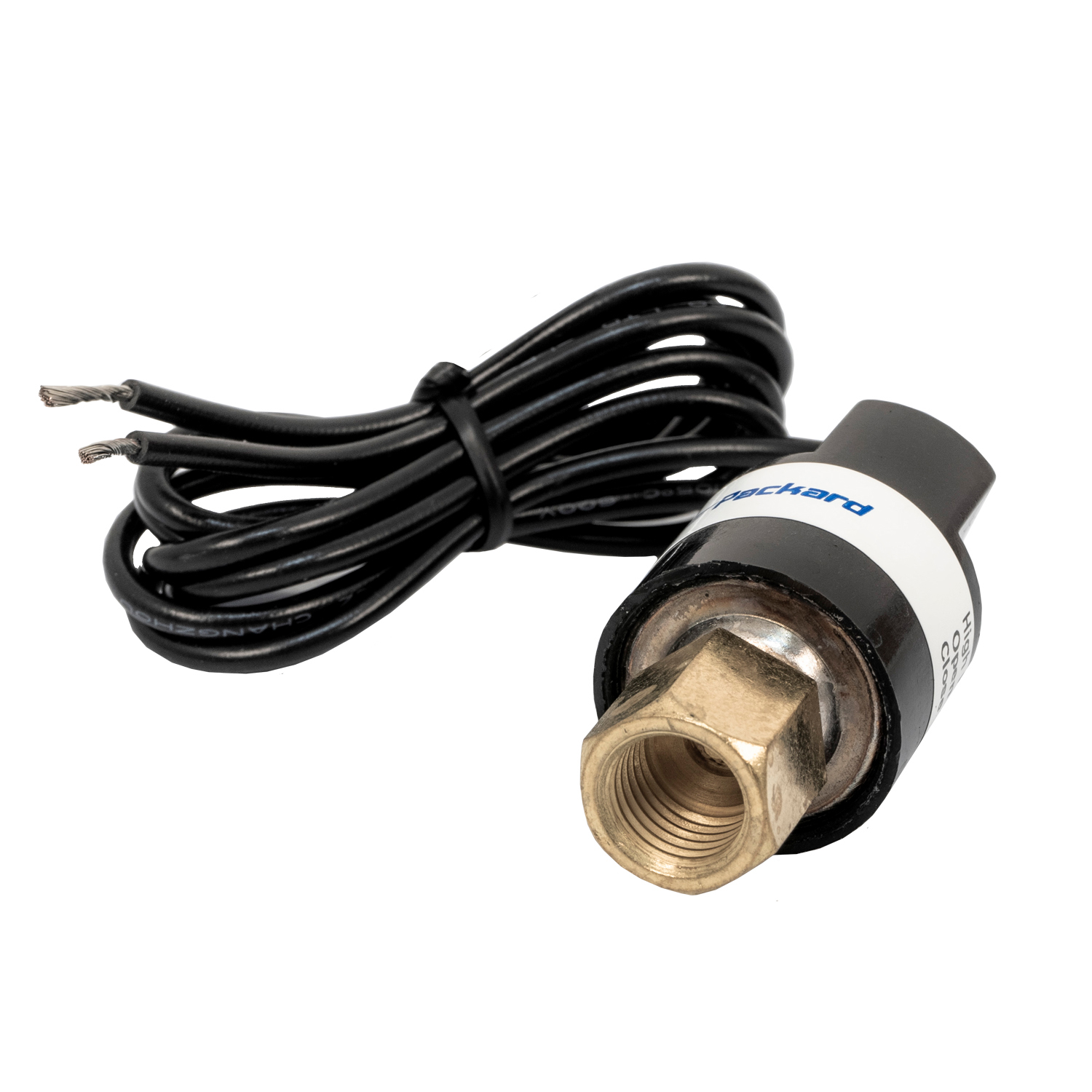

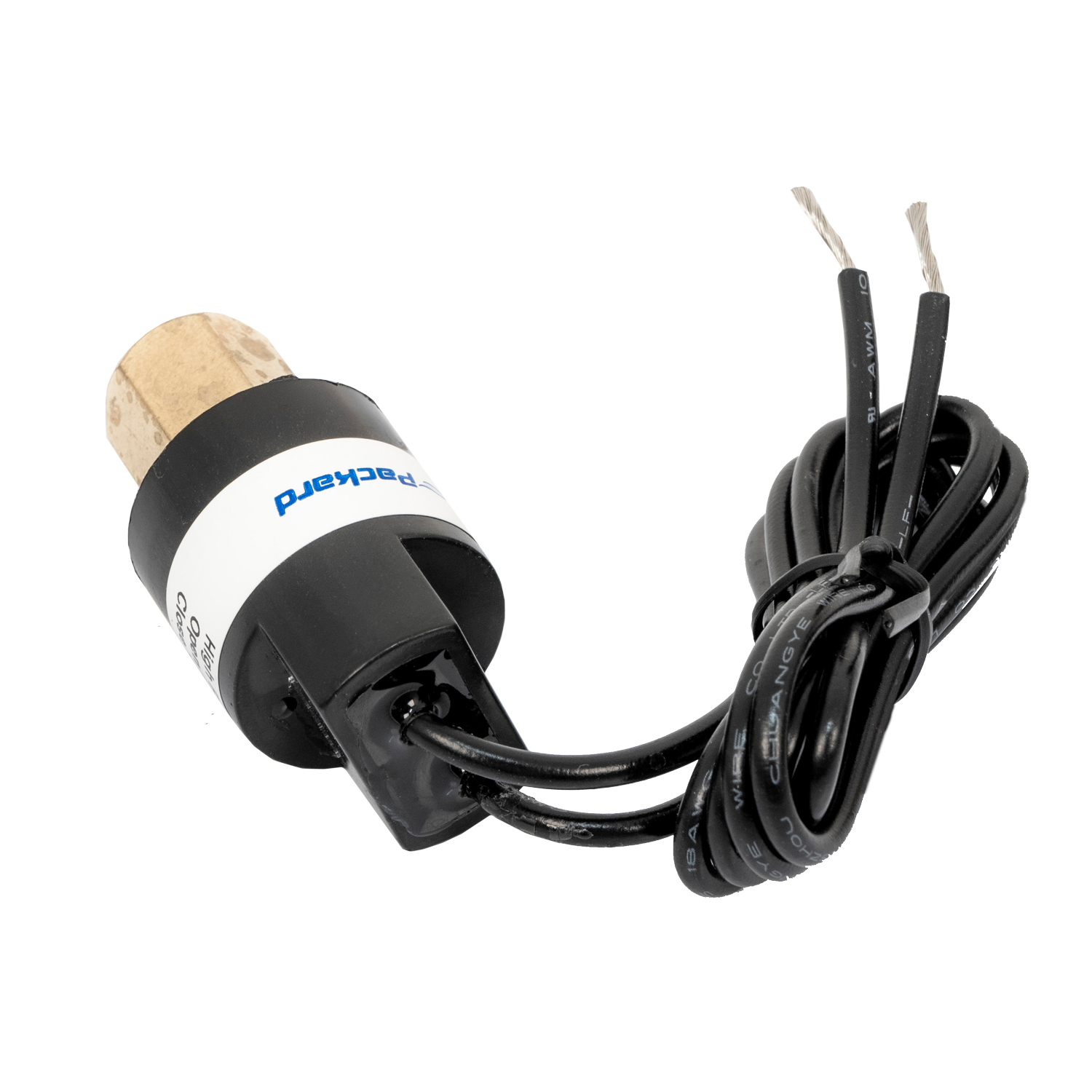

DiversiTech PHP400300 High Pressure Control, 400 PSI (Open), 300 PSI (Close) Set Points, SPST (Open On Rise), SAE Female Flare (Valve Core Depressor), 1/4" Connection Size, 208-240 VAC, 2.9 A (RLA, 208-240 VAC); 5.8 A (RLA, 110-120 VAC); 5 A (RLA, 48 V); 10 A (RLA, 12-28V), 0-650 PSI (Working)

Accuracy	:	± 15 PSI
Amperage Rating	:	2.9 A (RLA, 208-240 VAC); 5.8 A (RLA, 110-120 VAC); 5 A (RLA, 48 V); 10 A (RLA, 12-28V)
Close Pressure	:	300 PSI
Connection Size	:	1/4 "
Connection Type	:	SAE Female Flare (Valve Core Depressor)
Lead Length	:	18 "
Maximum Pressure	:	5,000 PSI (Burst)
Mounting Type	:	Direct Mount
Open Pressure	:	400 PSI
Pressure Rating	:	0-650 PSI (Working)
Rated Life Cycle	:	100,000 cycles
Reset Type	:	Automatic Reset
Set Points	:	400 PSI (Open), 300 PSI (Close)
Suitable For Use With	:	Refrigeration Systems, Air Conditioning Systems, Heat Pump Systems
Switching Action	:	SPST (Open On Rise)
Temperature Rating	:	20-176 °F (Ambient), 60-250 °F (Fluid)
Voltage Rating	:	208-240 VAC

DiversiTech High Pressure Control, 400 PSI (Open), 300 PSI (Close) Set Points, SPST (Open On Rise), SAE Female Flare (Valve Core Depressor), 1/4" Connection Size, 208-240 VAC, 2.9 A (RLA, 208-240 VAC); 5.8 A (RLA, 110-120 VAC); 5 A (RLA, 48 V); 10 A (RLA, 12-28V), 0-650 PSI (Working), 5,000 PSI (Burst), 20-176 °F (Ambient), 60-250 °F (Fluid), Automatic Reset, ± 15 PSI Accuracy, 100,000 Cycles, Direct Mount, 18" Lead Length

Provides high-pressure system protection with automatic reset functionality.Factory calibrated to open at 400 PSI and close at 300 PSI (±15 PSI tolerance).Features SPST, open-on-rise switching action with a hermetically sealed sensor.Connects via a 1/4" SAE female flare fitting with a valve core depressor.Designed for direct mounting with 18" wire leads included.Rated for 100,000 cycles for long service life.Suitable for use in air conditioning, refrigeration, and heat pump systems.UL certified for safety and reliability.
