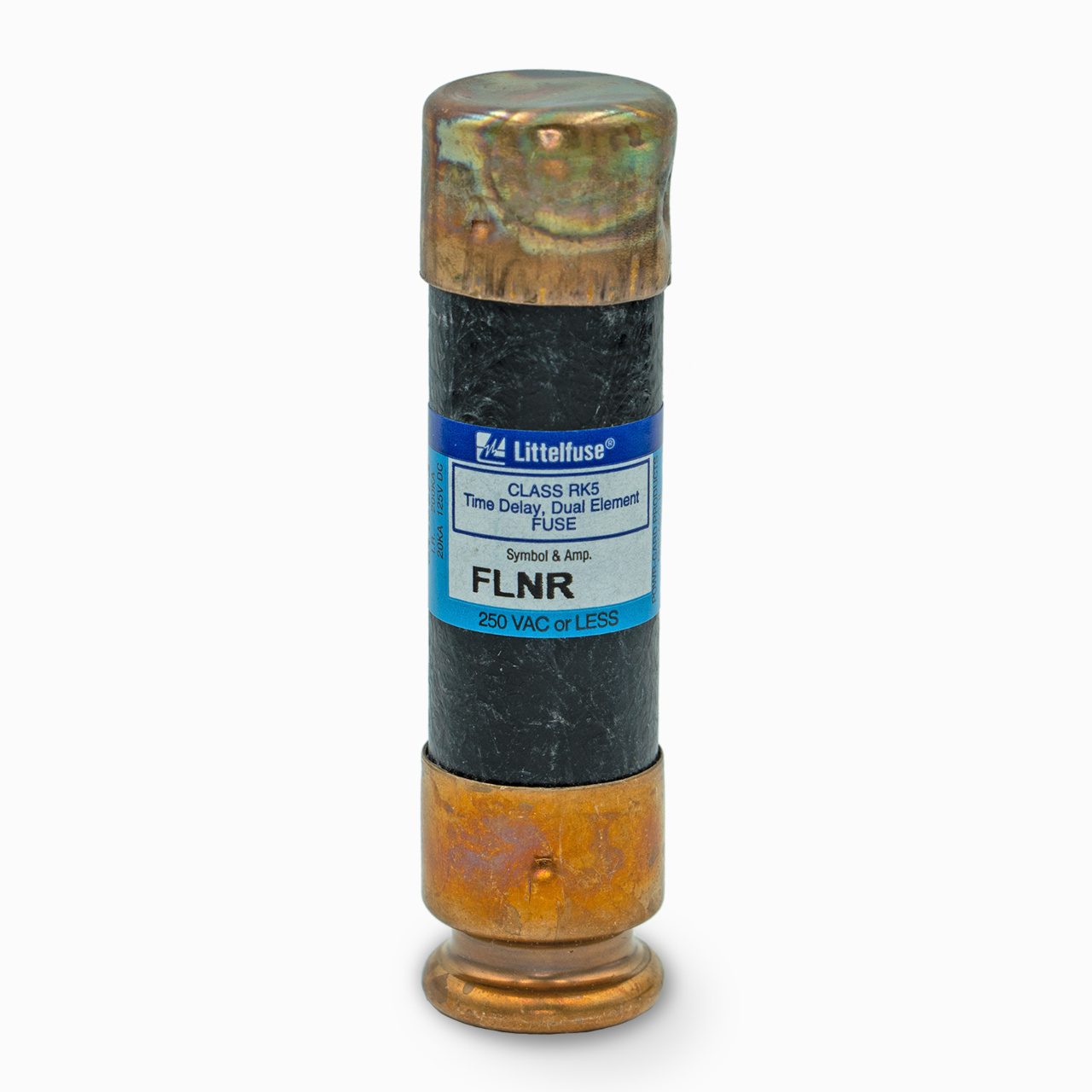

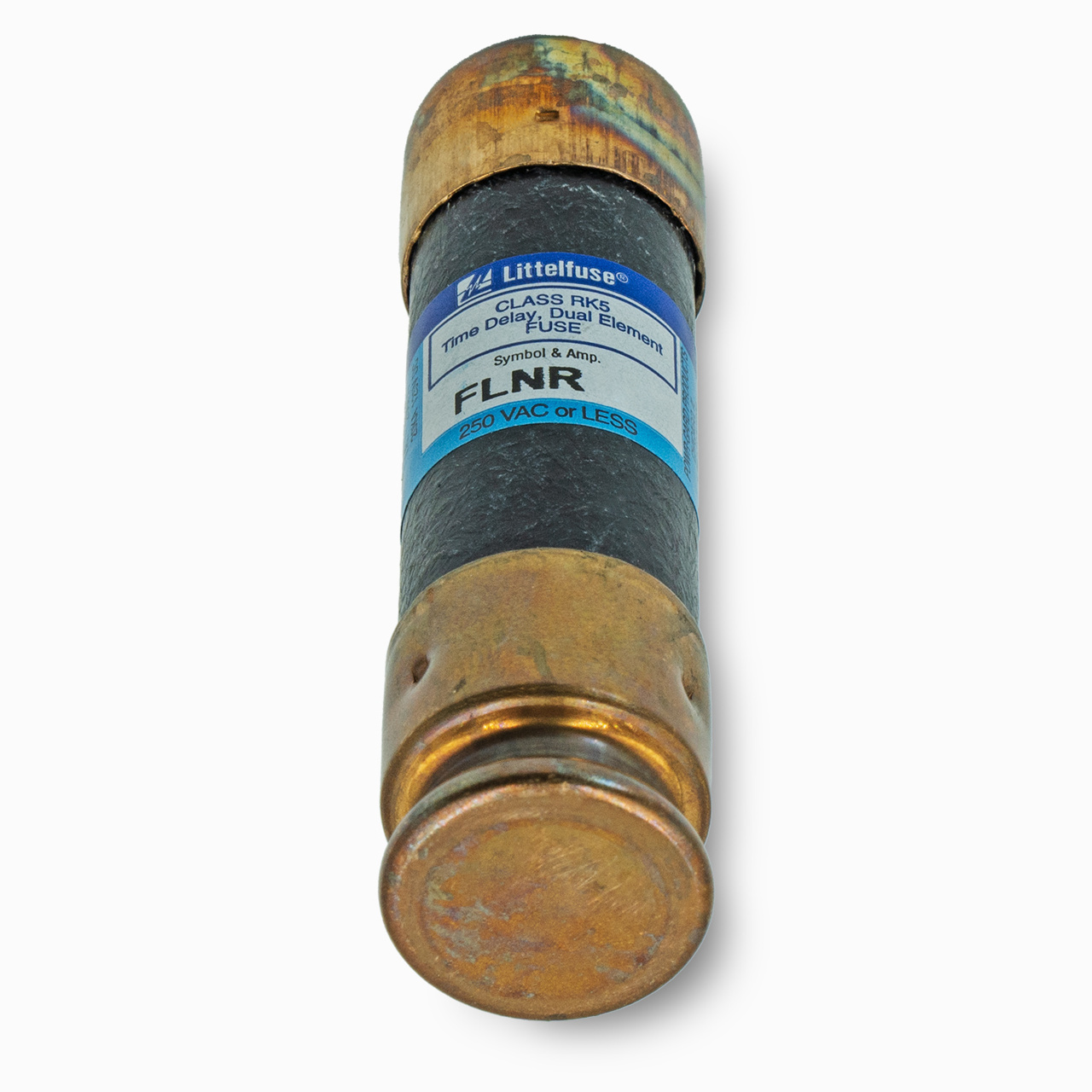

DiversiTech FLNR Series FLNR050T Class RK5 Fuse, 50 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount

Amperage Rating	:	50 A
Body Type	:	Cylindrical, Cartridge
Class	:	RK5
Diameter	:	13/16 "
Element Type	:	Dual Element
Frequency Rating	:	50 Hz, 60 Hz
Indicating/Non-Indicating	:	Non-Indicating
Interrupt Rating	:	200 kA (AC), 20 kA (DC)
Length	:	3 "
Mounting Type	:	Fuse Block, Clip Mount, Holder Mount
Rejection/Non-Rejection	:	Rejection
Response Time	:	Time-Delay
Series	:	FLNR Series
Short Circuit Rating	:	200 kA (AC), 20 kA (DC)
Terminal Type	:	Ferrule
Voltage Rating	:	250 VAC, 125 VDC

DiversiTech Class RK5 Fuse, Model: FLNR Series, 50 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 13/16" Diameter, 3" Length, 50 Hz, 60 Hz

Dual-element, time-delay design handles temporary inrush currents without nuisance opening.Provides current-limiting protection against short circuits and overloads.Rated for 50 Amps and 250 VAC / 125 VDC circuits.Features a high interrupt rating of 200 kA AC and 20 kA DC.Suitable for motor circuits, transformers, service entrance switches, and general-purpose protection.UL Listed and CSA Certified.
