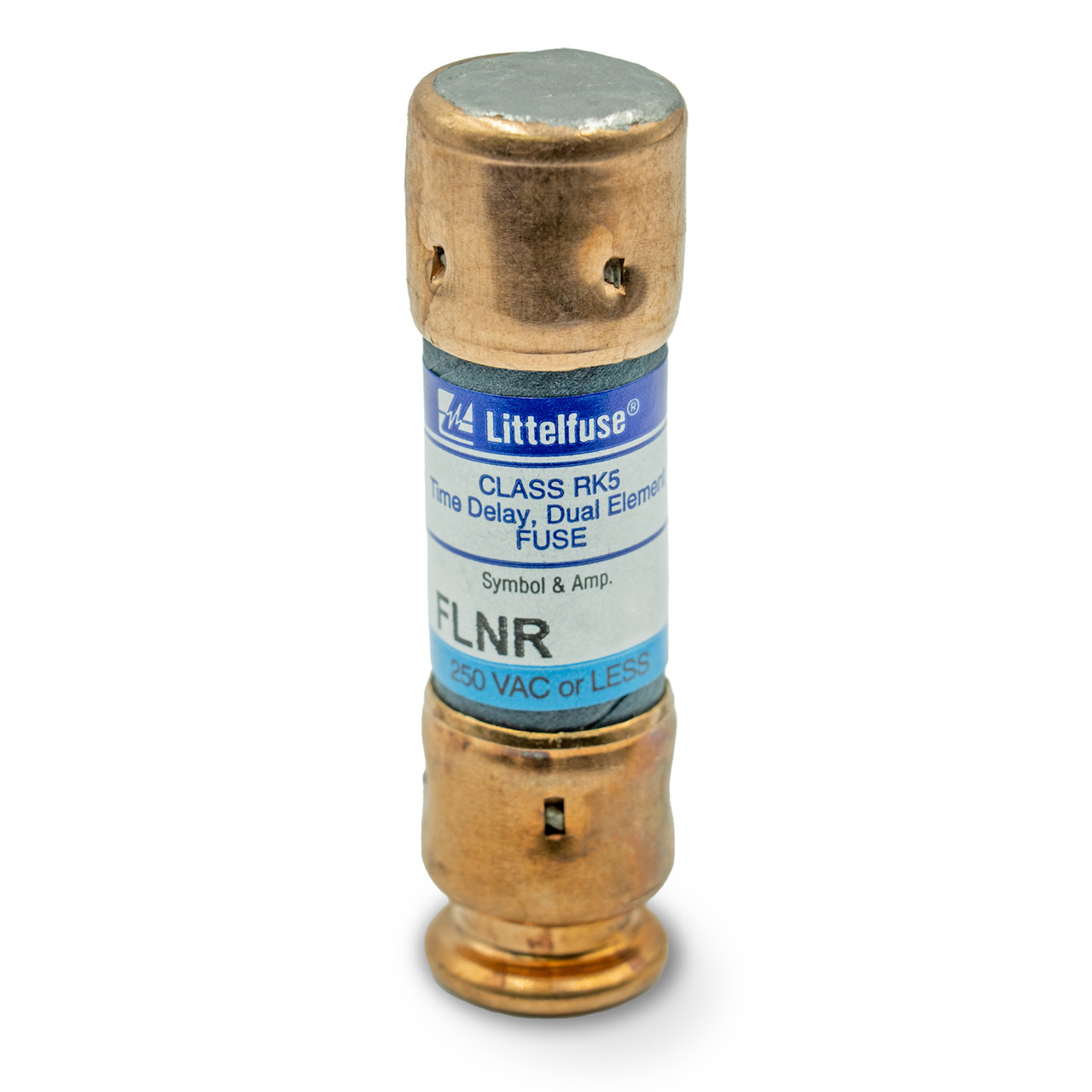

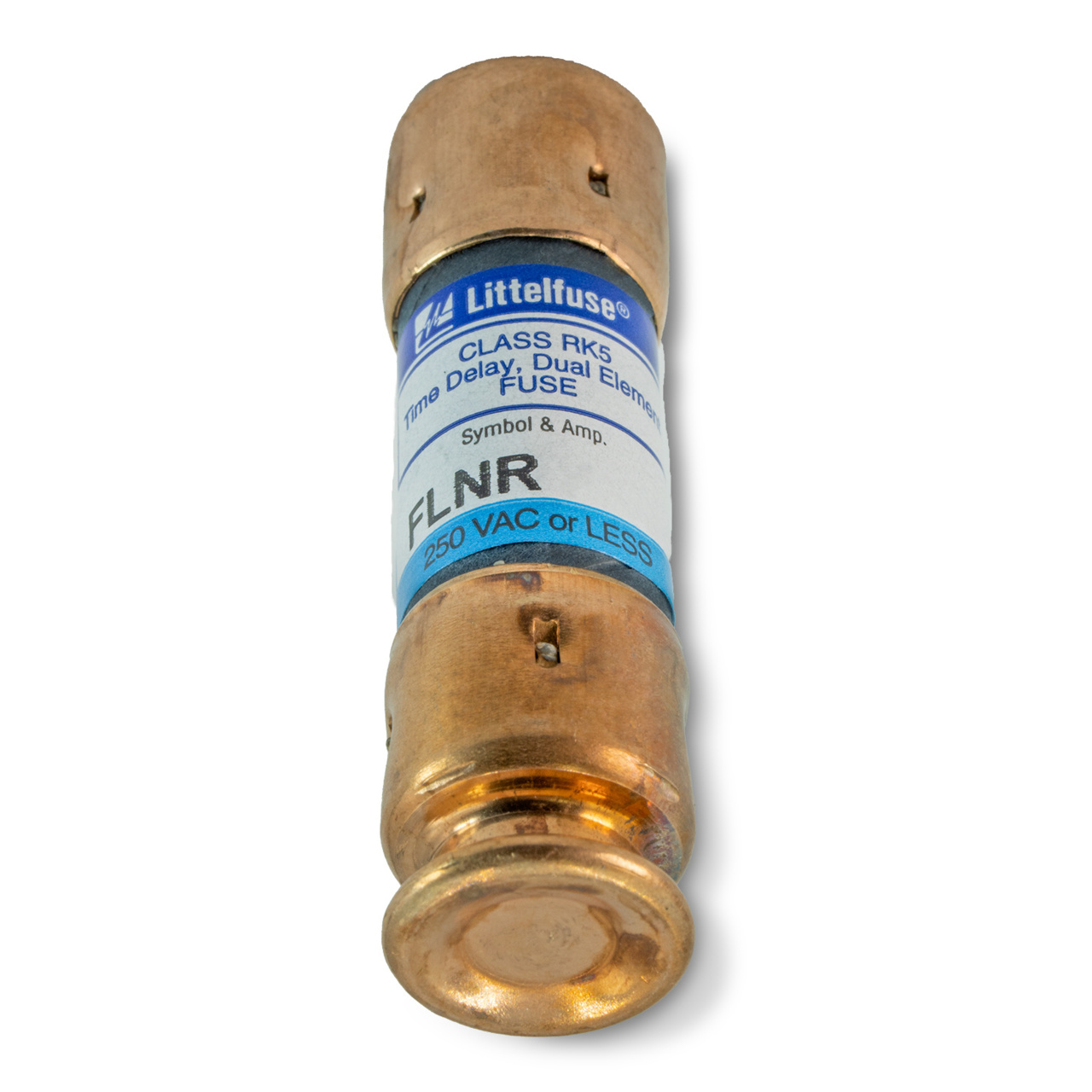

DiversiTech FLNR Series FLNR010T Class RK5 Fuse, 10 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR010T Class RK5 Fuse, 10 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR010T Class RK5 Fuse, 10 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount

DiversiTech FLNR Series FLNR010T Class RK5 Fuse, 10 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount

DiversiTech FLNR Series FLNR010T Class RK5 Fuse, 10 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 387059
MPN: FLNR010T
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      10 A
Body Type      :      Cylindrical, Cartridge
Class      :      RK5
Diameter      :      9/16 "
Element Type      :      Dual Element
Frequency Rating      :      50 Hz, 60 Hz
Indicating/Non-Indicating      :      Non-Indicating
Interrupt Rating      :      200 kA (AC), 20 kA (DC)
Length      :      2 "
Mounting Type      :      Fuse Block, Clip Mount, Holder Mount
Rejection/Non-Rejection      :      Rejection
Response Time      :      Time-Delay
Series      :      FLNR Series
Short Circuit Rating      :      200 kA (AC), 20 kA (DC)
Terminal Type      :      Ferrule
Voltage Rating      :      250 VAC, 125 VDC

DiversiTech Class RK5 Fuse, Model: FLNR Series, 10 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 9/16" Diameter, 2" Length, 50 Hz, 60 Hz

Provides reliable Class RK5 circuit protection with a 10 Amp, 250 VAC / 125 VDC rating.Features a dual-element, time-delay design ideal for circuits with motors or inductive loads.Offers high interrupting capacity: 200 kA AC and 20 kA DC.Current-limiting design provides advanced protection against short circuits and overloads.Non-indicating cartridge fuse format (2" L x 9/16" Dia).UL Listed and CSA Certified for safety and compliance.Comes in a convenient pack of 10 fuses.
