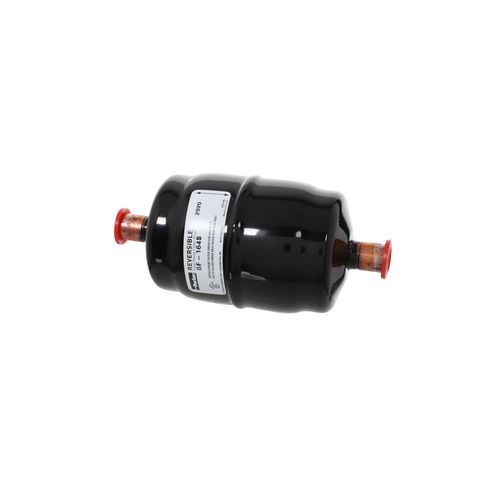

DiversiTech DTG Series FD-164-S Filter Drier, ODF Connection, 1/2" Connection Size, 16 Cu. In., 7.51 Tons (R-410A), 7.39 Tons (R-22), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI

Connection Type	:	ODF
Domestic/Import	:	Import
Finish	:	Painted
Flow Capacity	:	7.51 tons (R-410A), 7.39 tons (R-22)
Material	:	Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend)
Micron Rating	:	20 microns
Model	:	FD-164-S
Pressure Rating	:	714.7 PSI
Refrigerant Type	:	All Common Refrigerants (CFC, HCFC, HFC, HFO)
Series	:	DTG Series
Size	:	1/2 "
Suitable For Use With	:	All Common HCFC and HFC Refrigerants
Temperature Rating	:	-22-131 °F (Ambient), -22-248 °F (Medium Ts)
Volume	:	16 cu. in.

DiversiTech Filter Drier, Model: DTG Series, ODF Connection, 1/2" Connection Size, 16 Cu. In., 7.51 Tons (R-410A), 7.39 Tons (R-22), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI, -22-131 °F (Ambient), -22-248 °F (Medium Ts), Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend), Painted, Import

Effectively filters contaminants down to 20 microns.Features a desiccant blend of 80% molecular sieve and 20% active alumina to adsorb moisture and remove acid.Core is secured by fiberglass pads and a 100 mesh metal support screen at the outlet for reliable filtration.Compatible with all common CFC, HCFC, HFC, and HFO refrigerants.Rated for a maximum operating pressure of 714.7 PSI.Exterior paint provides corrosion resistance, tested to surpass 500-hour salt spray conditions.Certified for use with A2L refrigerants.
