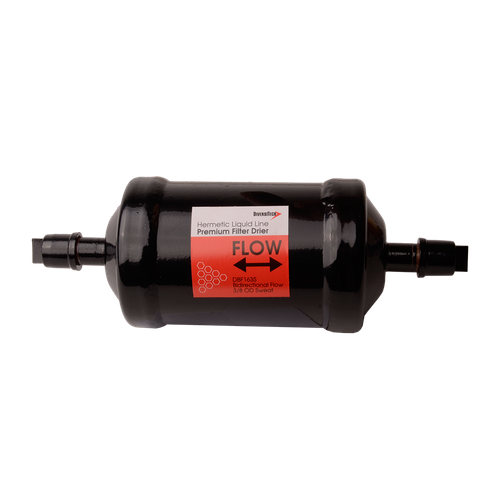

DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI
DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI
DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI
DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI

DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI

DiversiTech DTG Series FD-163-S Filter Drier, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 387022
MPN: FD-163-S
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Color      :      Blue
Connection Type      :      ODF
Domestic/Import      :      Import
Finish      :      Painted
Flow Capacity      :      7.39 tons (R-22), 7.31 tons (R-134a), 7.51 tons (R-410A), 7.39 tons (R-407C), 5.09 tons (R-404A / R-507)
Material      :      Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend)
Micron Rating      :      20 microns
Model      :      FD-163-S
Pressure Rating      :      714.7 PSI
Refrigerant Type      :      All Common Refrigerants (CFC, HCFC, HFC, HFO)
Series      :      DTG Series
Size      :      3/8 "
Suitable For Use With      :      All Common HCFC and HFC Refrigerants
Temperature Rating      :      -22-131 °F (Ambient), -22-248 °F (Medium Ts)
Volume      :      16 cu. in.

DiversiTech Filter Drier, Model: DTG Series, ODF Connection, 3/8" Connection Size, 16 Cu. In., 7.39 Tons (R-22), 7.31 Tons (R-134a), 7.51 Tons (R-410A), 7.39 Tons (R-407C), 5.09 Tons (R-404A / R-507), 20 Microns Micron Rating, All Common Refrigerants (CFC, HCFC, HFC, HFO), 714.7 PSI, -22-131 °F (Ambient), -22-248 °F (Medium Ts), Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend), Blue, Painted, Import

Filters impurities and solid particles down to 20 microns.Molded core with 80/20 molecular sieve/activated alumina blend adsorbs moisture and acid.Compatible with common CFC, HCFC, HFC, and HFO refrigerants.Durable powder-coated exterior offers 500-hour salt spray corrosion resistance.Rated for a maximum operating pressure of 714.7 PSI.UL/CSA certified for safety and compliance.
