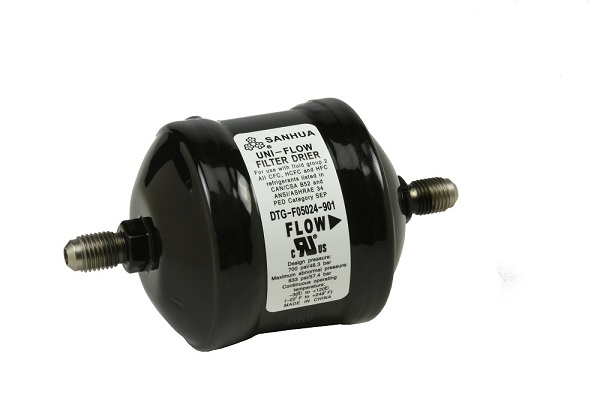

Sanhua DTG Series FD-083-S Filter Drier, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI
Sanhua DTG Series FD-083-S Filter Drier, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI

Sanhua DTG Series FD-083-S Filter Drier, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI

Sanhua DTG Series FD-083-S Filter Drier, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 387019
MPN: FD-083-S
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Connection Type      :      ODF
Dimensions      :      5-7/20" L
Domestic/Import      :      Import
Finish      :      Painted
Flow Capacity      :      3.8 tons (R-22), 6.4 tons (R-290), 5.5 tons (R-507), 4.9 tons (R-134a), 4.9 tons (R-404A), 5.2 tons (R-407C), 4.8 tons (R-410A)
Material      :      Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend)
Micron Rating      :      20 microns
Model      :      FD-083-S
Pressure Rating      :      714.7 PSI
Refrigerant Type      :      R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507
Series      :      DTG Series
Size      :      3/8 "
Suitable For Use With      :      All Common HCFC and HFC Refrigerants
Temperature Rating      :      -22-131 °F (Ambient), -22-248 °F (Medium Ts)
Volume      :      8 cu. in.

Sanhua Filter Drier, Model: DTG Series, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI, -22-131 °F (Ambient), -22-248 °F (Medium Ts), Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend), 5-7/20" L Dimensions, Painted, Import

Effectively removes moisture, acid, and solid impurities from refrigeration systems.Features a molded core with an 80% molecular sieve and 20% activated alumina blend for optimal desiccant performance.Provides high-efficiency solid particle filtration down to 20 microns.Compatible With: Common HCFC and HFC refrigerants including R-22, R-134a, R-404A, R-407C, R-410A, and R-507.Rated for a maximum operating pressure of 700 psig.UL and CSA certified for reliable performance.
