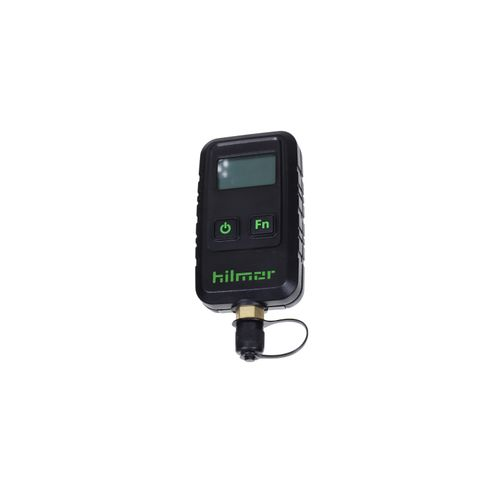

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD
DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 386399
MPN: CVG1200
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Accuracy      :      ± (5% + 10 microns) (1-1,000 microns, at 25°C), ± 20% (1,000-5,000 microns, at 25°C)
Battery Life      :      50 hrs (Without Backlight)
Battery Type      :      AAA
Color      :      Black
Dimensions      :      4-4/5" L x 1-1/5" H x 2-1/5" W
Display Type      :      LCD
Graduation      :      1 Micron (1 to 2,000 Microns), 100 Microns (2,000 to 20,000 Microns), 1000 Microns (20,000 to 100,000 Microns), 10000 Microns (100,000 to 300,000 Microns)
Measuring Range      :      1-300,000 microns
Mounting Type      :      Handheld
Power Supply      :      Battery
Pressure Rating      :      800 PSI (Momentary)
Refrigerant Type      :      A2L Compatible
Resolution      :      1 micron (1-2,000 Microns), 100 microns (2,000-20,000 Microns), 1,000 microns (20,000-100,000 Microns), 10,000 microns (100,000-300,000 Microns)
Series      :      Hilmor
Temperature Rating      :      10-122 °F

DiversiTech Compact Vacuum Gauge, Model: Hilmor, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD, 50 Hrs (Without Backlight) Battery Life, AAA Battery, Battery, 4-4/5" L x 1-1/5" H x 2-1/5" W Dimensions, 10-122 °F, Black

Backlit LCD display ensures readability in low-light conditions.Measures a wide vacuum range from 1 to 300,000 microns.Features a programmable audible micron alarm with high and low settings.Built to withstand momentary overpressure up to 800 PSI.Includes a protective carrying case for convenient storage and transport.Compatible with A2L refrigerants.
