| Collection | : | Black Iron Fittings |
| Color | : | Black |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Female Threaded |
| Connection Type 2 | : | Female Threaded |
| Connection Type | : | FPT|FPT |
| Depth | : | 2 in |
| Fitting Type | : | 45 deg Elbow |
| Height | : | 1.5 in |
| Material Construction | : | Malleable Iron |
| Material | : | Iron |
| Pressure Rating | : | 300 psi |
| Temperature Rating | : | 300 deg F |
| Width | : | 1.5 in |

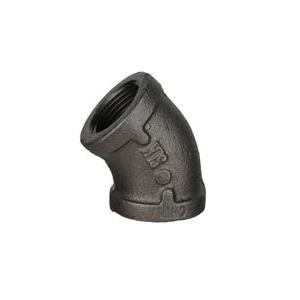

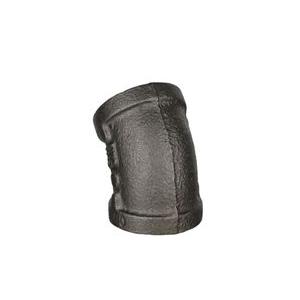

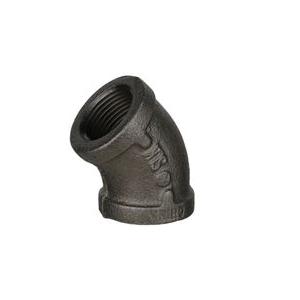

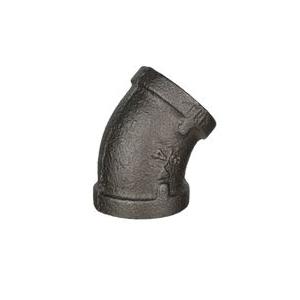

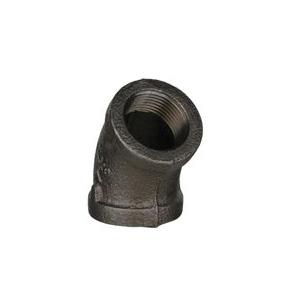

The 45 Degree Ell fitting is made of ASTM A 197 Cupola Malleable Iron, 150 LB. The dimensions for this fitting are ANSI B 16.3. The threads are ANSI V 2.1 or BS 21 and the tensile strength is 28.4 kg/mm.min for this fitting.
DiversiTech® 45 deg Elbow, 45 deg Elbow Fitting, 3/4 in Connection Size 1, Connection Type 1: Female Threaded, 3/4 in Connection Size 2, Connection Type 2: Female Threaded, FPT|FPT Connection, Iron, Material Construction: Malleable Iron, Black, 300 psi, 300 deg F
