| Additional Information | : | Internal Inherent Protection |
| Amperage Rating | : | 3.4 to 4.4 A |
| BTU Rating | : | 32000 Btu |
| Compressor Oil | : | Polyol Ester |
| Connection Type | : | Stub |
| Cooling Capacity | : | 25500 to 42600 Btu/hr |
| Dimensions | : | 9.69 in L x 9.69 in W x 15.25 in H |
| Discharge Line Size | : | 1/2 in |
| EER Rating | : | 11.2 |
| Flow Rate | : | 545 to 477 lb/hr |
| Frequency Rating | : | 60 Hz |
| Phase | : | 3 ph |
| Power Rating | : | 2020 to 2910 W |
| Refrigerant Type | : | R-22 |
| Series | : | Z Series |
| Sound Level | : | 73 dBA |
| Speed Rating | : | 3500 rpm |
| Suction Line Size | : | 3/4 in |
| Temperature Rating | : | 115 to 130 deg F |
| Voltage Rating | : | 460 V |

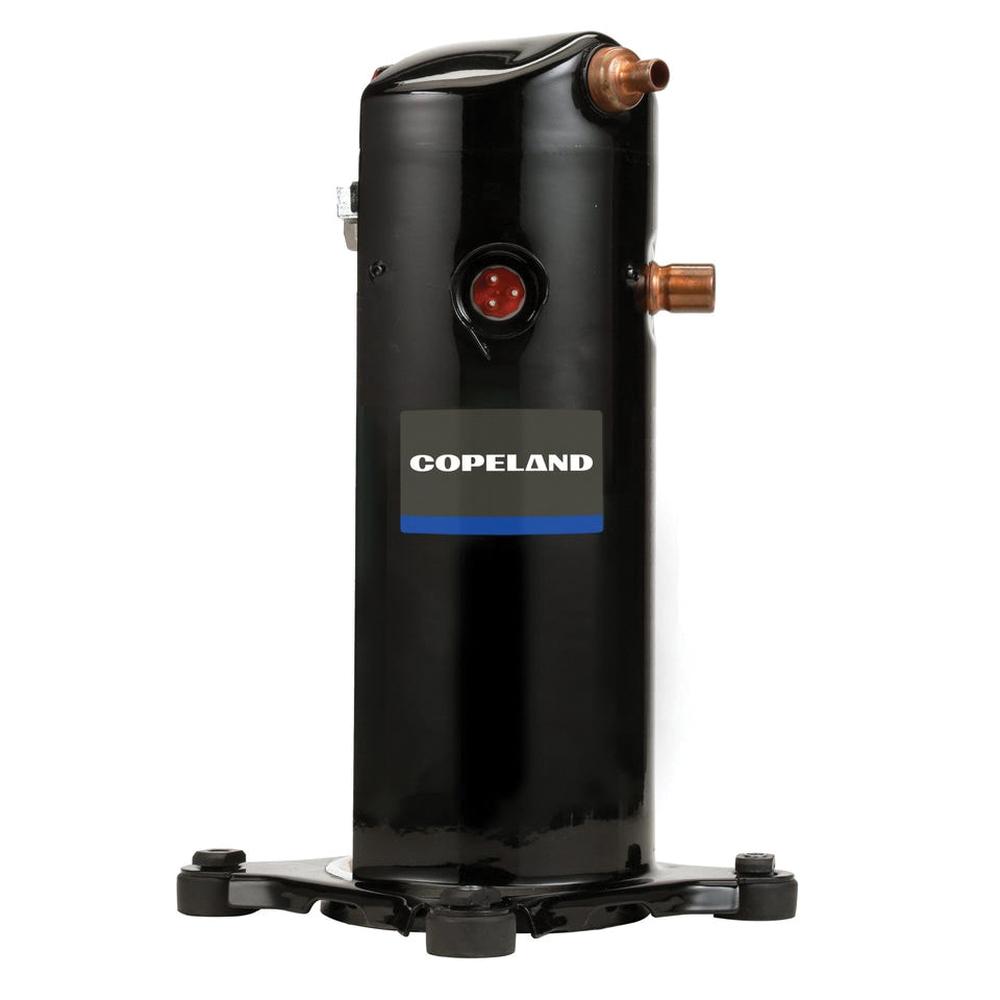

Copeland Scroll ZRK5 compressor has been built upon the proven Copeland Scroll platform and over 30 years of scroll technology development.
Copeland™ Scroll Compressor, Z Series, 32000 Btu, 25500 to 42600 Btu/hr Cooling Capacity, Stub Connection, 3/4 in Suction Line, 1/2 in Discharge Line, 545 to 477 lb/hr Flow Rate, 460 V, 3.4 to 4.4 A, 2020 to 2910 W, 60 Hz, 3 ph Phase, R-22 Refrigerant, 3500 rpm, 73 dBA Sound Level, 11.2 EER Rating, Polyol Ester Compressor Oil, 115 to 130 deg F, 9.69 in L x 9.69 in W x 15.25 in H, Additional Information: Internal Inherent Protection
- Legacy Copeland Scroll fixed speed compressor
- Low-pressure applications (R-22, R-407C)
