| Amperage Rating | : | 12.7 A |
| BTU Rating | : | 53000 Btu/hr |
| CFM Rating | : | 11.08 cfm |
| Compressor Oil | : | POE |
| Dimensions | : | 10.62 in L x 9.22 in W x 14.81 in H |
| Discharge Line Size | : | 1/2 in Stub |
| EER Rating | : | 10.57 to 16.11 |
| Flow Rate | : | 865 to 780 lb/hr |
| Power Rating | : | 4870 W, 4-27/64 hp |
| Refrigerant Type | : | R-22, HCFC |
| Series | : | CR |
| Sound Level | : | 76 to 81 dBA |
| Speed Rating | : | 3500 rpm |
| Suction Line Size | : | 7/8 in Stub |
| Temperature Rating | : | 45 deg F Evaporator, 100 to 130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid, 95 deg F Ambient |
| Tonnage | : | 4.5 ton |
| Voltage Rating | : | 460 VAC |

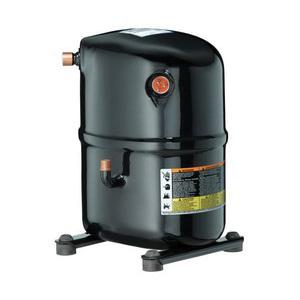

Copeland™ Hermetic Compressor, Series: CR, 53000 Btu/hr BTU, 4.5 ton, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 865 - 780 lb/hr, 11.08 cu-ft/min, 460 VAC, 12.7 A, 4870 W, 4-27/64 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 76 - 81 dBA, 10.57 - 16.11 EER, POE Compressor Oil, 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 115 deg F Liquid, 95 deg F Ambient, 10.62 in L x 9.22 in W x 14.81 in H
- Internal inherent protection-one-protector use with contactor
- Compressor family Series
- Model variation
- 45 oz initial oil charge, 43 oz oil recharge
- 7-1/2 in L x 7-1/2 in W x 15.19 in H mounting
- 9.1 A-rated load, 55 A locked rotor, 12.7 A minimum circuit
- Two-cylinders
- 1.96 in bore, 0.91 in stroke
- 5.47 cu-in/rev displacement
- Bill of material-crankcase heater, mounting parts, screw terminals (CRM-P), sweat connections, terminal cover, terminal flag kit (CRA-L), 4-13/16 x 8 in footprint
