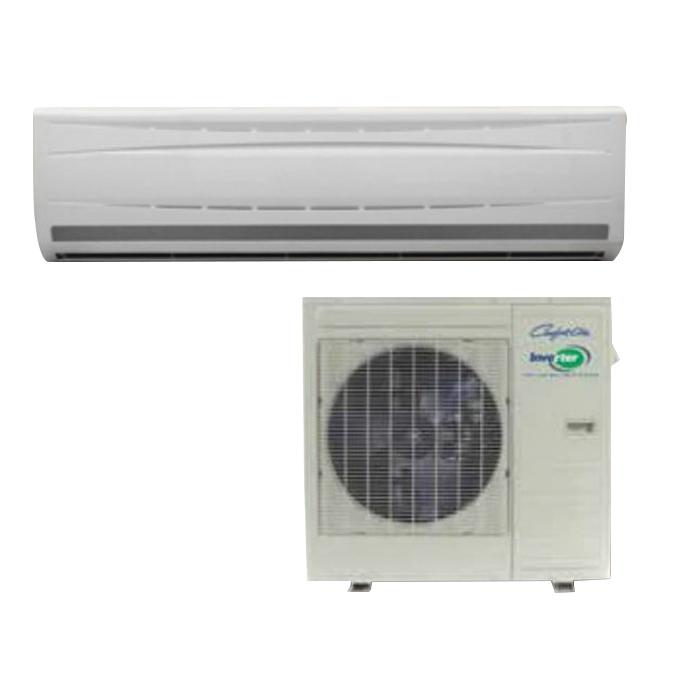

Comfort-Aire® VMH Series VMH36SC-1 Mini-Split Heat Pump, R-410A Refrigerant, 8.8 EER

Comfort-Aire® VMH Series VMH36SC-1 Mini-Split Heat Pump, R-410A Refrigerant, 8.8 EER

Brand: Comfort-Aire®
Part #: 50390
Customer Part #:
Amperage Rating      :      20 A
BTU Rating      :      36000 Btu/hr
CFM Rating      :      971 cfm
Connection Type      :      Flared
Dehumidification      :      8 pt/hr
Dimensions      :      13-3/8 in H x 56-7/8 in W x 10-7/8 in D, 38 in H x 39 in W x 13-9/16 in D
EER Rating      :      8.8
Frequency Rating      :      60 Hz
Fuse Rating      :      30 A
HSPF Rating      :      9
Liquid Line Size      :      3/8 in
Mounting Type      :      Wall
Phase      :      1 ph
Refrigerant Type      :      R-410A
SEER Rating      :      14.5
Series      :      VMH Series
Sound Level      :      50 dBA
Suction Line Size      :      5/8 in
Vent, Ducted or Ductless      :      Ductless
Voltage Rating      :      208 to 230 V

Comfort-Aire® Mini-Split Heat Pump, Series: VMH Series, 208 to 230 V, 20 A, 60 Hz, 1 ph, 36000 Btu/hr, 971 cfm CFM Rating, 8.8 EER, 14.5 SEER, HSPF: 9, Flared, R-410A, 30 A Fuse, 3/8 in Liquid Line, 5/8 in Suction Line, Ductless Vent, Ducted or Ductless, 50 dBA, 8 pt/hr Dehumidification, Wall Mount, 13-3/8 in H x 56-7/8 in W x 10-7/8 in D, 38 in H x 39 in W x 13-9/16 in D

  • Attractive cabinet - indoor units feature a slim profile with rounded corners and sleek grilles in a subtle white finish
  • Multiple modes - cooling, dehumidification only and heating, sleep mode, 24 hr timer, turbo mode, auto mode
  • Auto swing - continually adjusts air direction for a gentle, breeze-like effect preferred by most people
  • Remote control - makes it easy to program and operate the unit
  • Enhanced filtration - silver ion filter delivers improved indoor air quality, eliminating bacteria in the air
  • Defrost control - automatically removes any frost accumulation on the coil as needed
  • Follow feature - remote senses temperature where occupant is, automatically adjusts to maintain set point
  • Auto restart - reverts to the last setting following a power failure
  • 5 to 122 deg F cooling, 5 to 86 deg F heating low ambient
  • Three-speed fan
  • 6 years compressor and 2 years on parts warranty
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Comfort_Aire_A_VMH36SC_1_Specification_Sheet.pdf
