| Additional Information | : | Cupro-Nickel Coaxial Coil |
| Amperage Rating | : | 19.6 A |
| BTU Rating | : | 41500 Btu/hr |
| Compressor Type | : | Scroll |
| Configuration | : | Split |
| Dimensions | : | 26.3 in H x 25.4 in W x 30.6 in D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 29.8 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Series | : | HZ Series |
| Temperature Rating | : | 20 to 120 deg F |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 208/230 V |

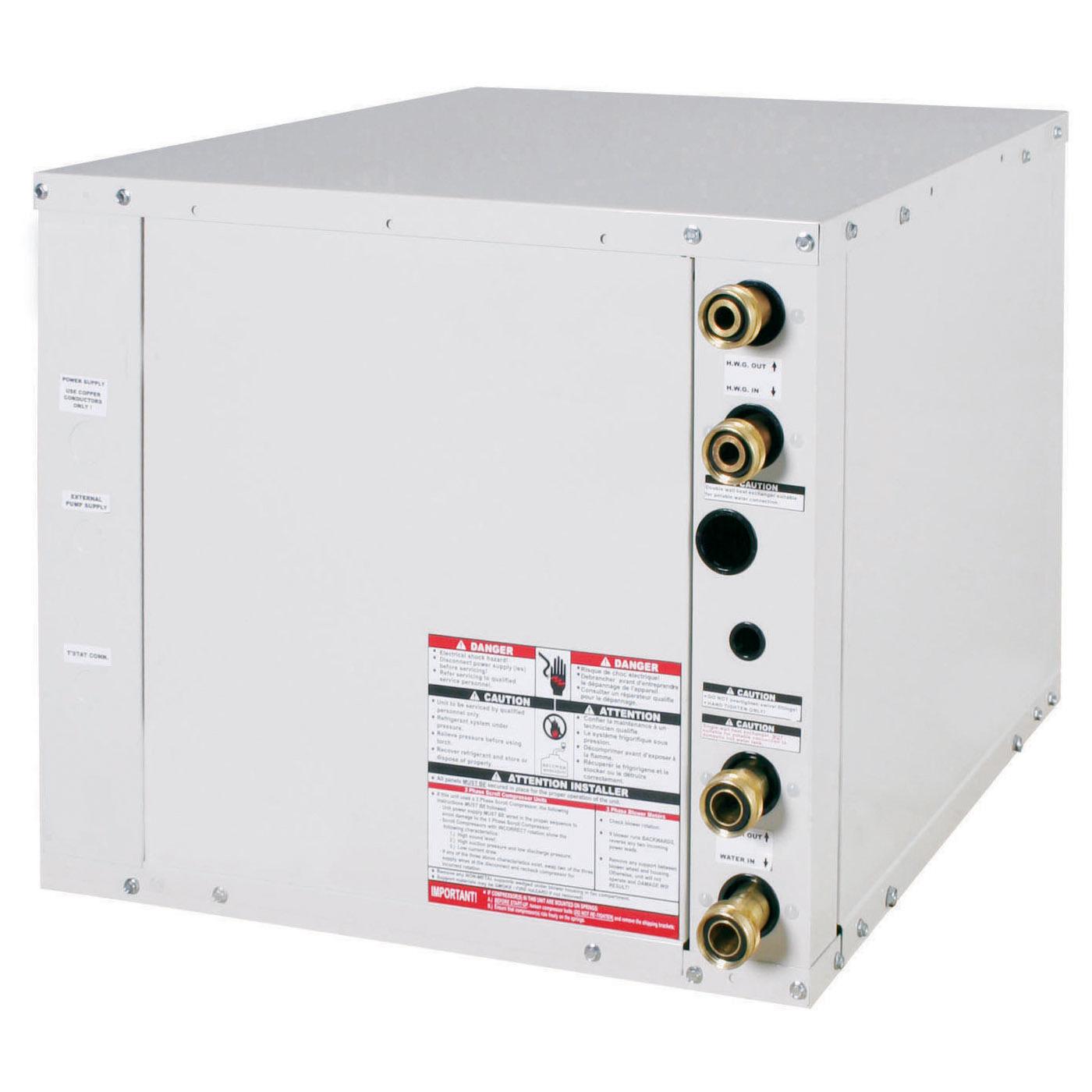

The HZS Indoor Split Geothermal Heat Pump delivers the ULTIMATE in efficiency (25.6 EER and 4.3 COP*), comfort, reliability and serviceability-intelligently driven by the iGate™, the industry's first two-way communicating control, two-stage compressor, and industry-first vFlow™ internal variable water flow components. The HZS Splits deliver reliable operation, lower operating costs and compact installation. The HZS Indoor Split Series easily connects to new or existing fossil fuel and electric furnaces. Ideal for remote applications with a second floor or crawl spaces.
Comfort-Aire® Geothermal Heat Pump Split System, Series: HZ Series, 208/230 V, 19.6 A, 60 Hz, 1 ph Phase, 41500 Btu/hr, 29.8 EER Rating, Scroll Compressor, 30 A Fuse Rating, Split, Tonnage: 3 ton, 2 Stages, 20 to 120 deg F, 26.3 in H x 25.4 in W x 30.6 in D, Domestic/Import: Domestic, Additional Information: Cupro-Nickel Coaxial Coil
- Exclusive iGate™ uses the power of 2-way communication to monitor, control and diagnose your system. It improves system life by monitoring and protecting the unit and delivers high efficiency by intelligently controlling the unit
- Optional vFlow™ Variable Water Flow with Variable-Speed Internal Flow Center or Internal Modulating Valve for optimized efficiency, reliability and quicker, easier, cleaner installation
- Next generation Copeland™ Ultra-Tech™ Two-Stage Scroll Compressor with dual-level isolation for ultra-quiet and highefficiency operation
- Two-Section Swing-out/Drop-Out Control Box design provides wide-open service access
- Water Schrader Ports located on corner post to easily read pressure drop across water heat exchanger for easy troubleshooting
- Backseating Brass Service Valves with Service Port Brass
- Three Easy Lift-out Service Access Panels with Stainless Steel Front Panels
