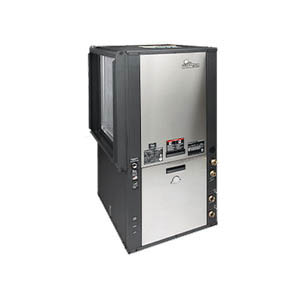

ClimateMaster® Tranquility® 30 Digital TE Series TEV038BGD02CLTS Standard Heat Pump, 208 - 230 V, 60 Hz, 1 ph -Phase

Additional Information	:	DXM2.5 Controls, Left Return Airflow, Top Supply TEV Configuration
BTU Cooling Rating	:	36,000 Btu/hr
COP Rating	:	7
Compressor Stages	:	Two Stage
Compressor Type	:	Scroll
Configuration	:	Vertical Upflow
Dimensions	:	50.5 in H x 25.4 in W x 30.6 in D
EER Rating	:	29.6
Filter Size	:	2 in
Frequency Rating	:	60 Hz
Fuse Rating	:	40 A
HSPF2 Range	:	24.95
Number of Stages	:	2
Phase	:	1.0 ph
Refrigerant Type	:	R-410A
SEER2 Range	:	24.95
Series	:	TE Series
Tonnage	:	3
Vent, Ducted or Ductless	:	Ducted
Voltage Rating	:	208 - 230 V
Volts	:	208/230 V

ClimateMaster® Tranquility® 30 Digital Standard Heat Pump, Series: TE Series, 208 - 230 V, 37700 Btu/hr Cooling, 45700 Btu/hr Heating, 60 Hz, 1 ph Phase, R-410A Refrigerant, Tonnage: 3 ton, 29.6 EER Rating, 2 Stages, Scroll Compressor, Vertical Upflow, 2 in Filter, 40 A Fuse Rating, 7 COP, Vent, Ducted or Ductless: Ducted, 50.5 in H x 25.4 in W x 30.6 in D, Additional Information: DXM2.5 Controls, Left Return Airflow, Top Supply TEV Configuration

Five Capacities: 026, 038, 049, 064, and 072Part-load values up to 34.4 EER/7.0 COPTwo-stage upflow, downflow, and horizontal right or left returniGate® information gateway to configure, control, monitor and diagnose the unit on the thermostat, in plain EnglishNoise reduction features include: dual level compressor isolation, insulated compressor compartment, interior cabinet insulation using 1/2" coated glass fiber and variable speed fanExtended range operation (20-120 degF EWT) and flow rates automatically controlled inside the unitEarthPure® HFC-410A zero ozone depletion refrigerantStandard 10-year limited warranty on all parts with 5 year labor allowance; Optional Warranty to extend labor allowance from the standard 5 years to 10 years
