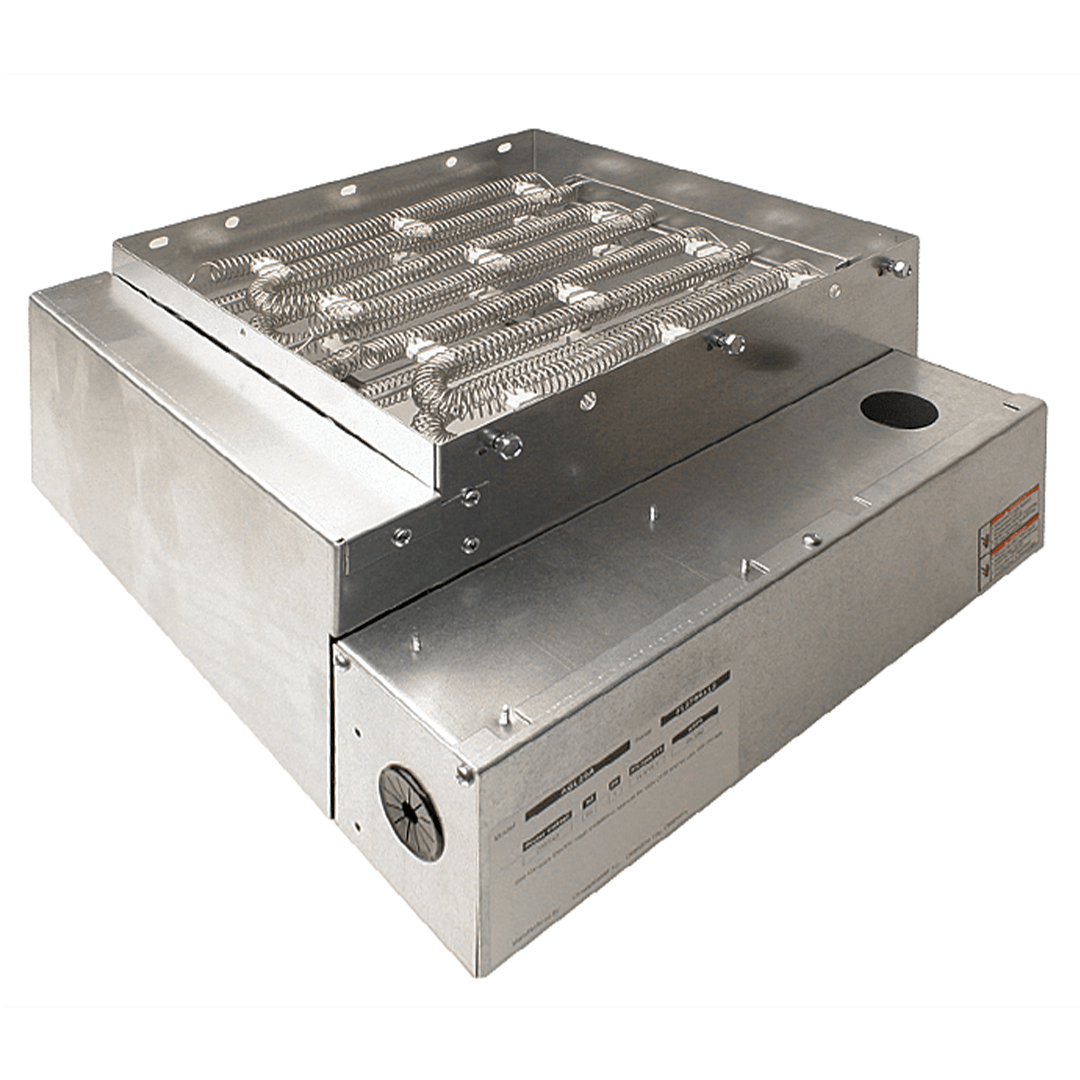

ClimateMaster AG Series AGM10ABG Electric Heater Kit, 9,600 W (At 240 V), 7,200 W (At 208 V), 208/240 V, 1 Phase, 40.0 A (Heater, 240 V); 34.7 A (Heater, 208 V), Internal Mount (Vertical Units), Direct To Blower Outlet (Horizontal Units), Domestic, 60 Hz

Amperage Rating	:	40.0 A (Heater, 240 V); 34.7 A (Heater, 208 V)
Domestic/Import	:	Domestic
Frequency Rating	:	60 Hz
Model	:	AGM10ABG
Mounting Type	:	Internal Mount (Vertical Units), Direct To Blower Outlet (Horizontal Units)
Phase	:	1
Power Rating	:	9,600 W (At 240 V), 7,200 W (At 208 V)
Series	:	AG Series
Suitable For Use With	:	ClimateMaster Models: QE, VE, TS, TE, TZ, TAH
Voltage Rating	:	208/240 V

ClimateMaster Electric Heater Kit, Model: AG Series, 9,600 W (At 240 V), 7,200 W (At 208 V), 208/240 V, 1 Phase, 40.0 A (Heater, 240 V); 34.7 A (Heater, 208 V), Internal Mount (Vertical Units), Direct To Blower Outlet (Horizontal Units), Domestic, 60 Hz

Provides 9.6 kW heating capacity at 240V (7.2 kW at 208V).Compatible With: ClimateMaster QE, VE, TE, TS, TZ, and TAH series units.Mounts internally on vertical units or directly to the blower outlet on horizontal TAH units.Features a relay control board that activates elements via a low voltage harness.Operates on single-phase 208/240V, 60 Hz power.Factory default staging options available, configurable via dip switches.Rated for zero clearance at the unit (horizontal units require 1" duct clearance for first 3 feet).
