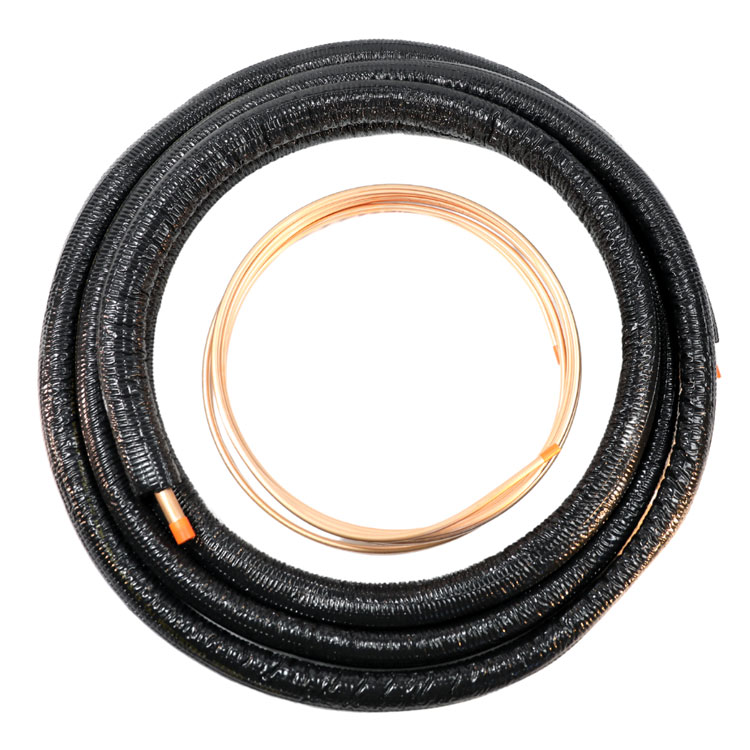

Cerro Flow Products 618 CerroSet Black Shield UV 618205060009 Black Shield UV Line Set, 1-1/8" Suction Line Size, 3/8" Liquid Line Size, 50' Length, 1/2" Insulation Thickness, 3.3 R-Value, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation)
Cerro Flow Products 618 CerroSet Black Shield UV 618205060009 Black Shield UV Line Set, 1-1/8" Suction Line Size, 3/8" Liquid Line Size, 50' Length, 1/2" Insulation Thickness, 3.3 R-Value, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation)
Manufacturer: Cerro Flow Products, Inc
Brand: CERRO
Part #: 383779
MPN: 618205060009
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Color | : | Black |
| Connection Type | : | Plain End |
| Domestic/Import | : | Domestic |
| Finish | : | Co-Extruded/UV Resistant (Jacket) |
| Insulation Thickness | : | 1/2 " |
| Length | : | 50 ' |
| Liquid Line Size | : | 3/8 " |
| Material Standard | : | ASTM B1003 |
| Material | : | C12200 Copper (Tube), NBR/PVC (Insulation) |
| Model | : | 618205060009 |
| Pressure Rating | : | 700 PSI (UL Recognized) |
| R-Value | : | 3.3 |
| Series | : | 618 CerroSet Black Shield UV |
| Suction Line Size | : | 1-1/8 " |
| Temperature Rating | : | -297-220 °F |
Cerro Flow Products Black Shield UV Line Set, Model: 618 CerroSet Black Shield UV, 1-1/8" Suction Line Size, 3/8" Liquid Line Size, 50' Length, 1/2" Insulation Thickness, 3.3 R-Value, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized), ASTM B1003, -297-220 °F, Co-Extruded/UV Resistant (Jacket), Black, Domestic
Features 3/8" liquid line and 1-1/8" suction line made from C12200 grade copper.Includes 50 feet of tubing for connecting indoor and outdoor HVAC units.Suction line features 1/2" thick Black Shield UV-resistant elastomeric insulation.UL Recognized pressure rating of 700 PSI for system reliability.Approved for use with common refrigerants including R-410A, R-32, and R-22.Manufactured in the USA and meets ASTM B1003 standards.Plain end connections allow for versatile field installation.
