| Amperage Rating | : | 35 A |
| Compressor Type | : | Inverter |
| Cooling BTU Rating | : | 48000 Btu/hr |
| Cooling CFM Rating | : | 4500 cfm |
| Cooling Operating Temperature | : | -13 to 122 deg F |
| Cooling Sound Level | : | 64 dBA |
| EER Rating | : | 11 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HSPF Rating | : | 10.2 |
| Heating BTU Rating | : | 48000 Btu/hr |
| Heating CFM Rating | : | 4500 cfm |
| Heating Operating Temperature | : | -22 to 86 deg F |
| Heating Sound Level | : | 64 dBA |
| Liquid Line Size | : | 1/4 in |
| Overall Height | : | 52.48 in |
| Overall Length | : | 17.63 in |
| Overall Width | : | 41.15 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 20.5 |
| Series | : | DLCMRA Series |
| Suction Line Size | : | 3/8 in |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 208-230 V |

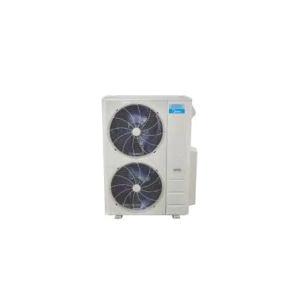

Carrier® Heat Pump, DLCMRA Series, 208-230 V, 35 A, 60 Hz, 1 ph Phase, 48000 Btu/hr Heating, 48000 Btu/hr Cooling, 4500 cfm Heating CFM Rating, 4500 cfm Cooling CFM Rating, 11 EER Rating, 20.5 SEER, 10.2 HSPF, Inverter Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 50 A Fuse Rating, Tonnage: 4 ton, 64 dBA Heating Sound Level, 64 dBA Cooling Sound Level, -22 to 86 deg F Heating Operating Temperature, -13 to 122 deg F Cooling Operating Temperature, 17.63 in Overall Length, 41.15 in Overall Width, 52.48 in Overall Height
- A multi-zone outdoor unit for flexibility and control
- Space saving installation - up to five indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required, all indoor units can be individually controlled and do not need to be installed at the same time
- Multiple indoor unit-styles - flexibility on the options of indoor unit-styles to fit any application or need
- Built-in basepan heater
- Quiet outdoor unit operation as low as 62 dBA
- Aluminum golden hydrophilic pre-coated fins
- Total piping length up to 328 ft
- Vertical lift/prop piping length 65 ft
- Standard major series
- Standard variation
