| CFM Rating | : | 75 cfm |
| Dimensions | : | 33 in L x 24 in W x 20 in H |
| Power Rating | : | 30 hp |
| Refrigerant Type | : | R-22 |
| Series | : | 06E |
| Speed Rating | : | 1750 rpm |
| Temperature Rating | : | 50/145 deg F Maximum Operating |
| Tonnage | : | 27.85 ton |
| Voltage Rating | : | 460 VAC |

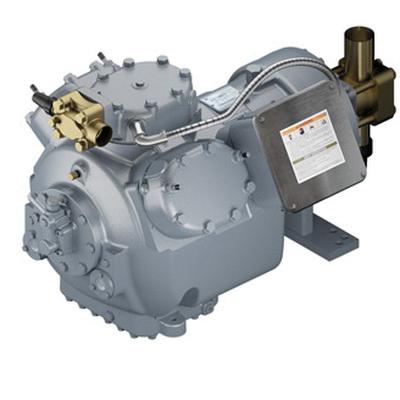

Carlyle® Semi-Hermetic Compressor, Series: 06E, 27.85 ton, 75 cu-ft/min, 460 VAC, 30 hp, R-22 Refrigerant, 1750 rev/min Speed, 50/145 deg F Maximum Operating, 33 in L x 24 in W x 20 in H
- High-flow, automatically reversible oil pump provides positive displacement oil lubrication
- Crankcase venting system equalizes pressure during start-up and assures oil return to sump
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency
- High efficiency valves provide increased refrigerant flow and lower pressure drops
- Electronic oil pressure switch
- Service compressor with blocked suction cut-off unloader head, replaces-2, 3, 4, 5, 6, 7, 8 and 9
- Heavy-duty compressors
- Thermotector protection old-style crankcase
- Packaging variation
- Six-cylinders
- 19 pt oil charge
- 2.688 in bore, 2.188 in stroke
- 315-400 lb/sq-in test pressure
