| Amperage Rating | : | 56 A Rated Load, 223 A Locked Rotor |
| BTU Rating | : | 33600 Btu/hr |
| CFM Rating | : | 65 cfm |
| Dimensions | : | 26.46 in W x 11.36 in D x 20.17 in H |
| Power Rating | : | 25 hp |
| Refrigerant Type | : | R-22 |
| Series | : | 06E |
| Speed Rating | : | 1750 rpm |
| Temperature Rating | : | 50/145 deg F Maximum Operating |
| Tonnage | : | 4.58 ton at Low Temperature, 14.45 ton at Medium Temperature, 25.25 ton at High Temperature |
| Voltage Rating | : | 460 VAC |

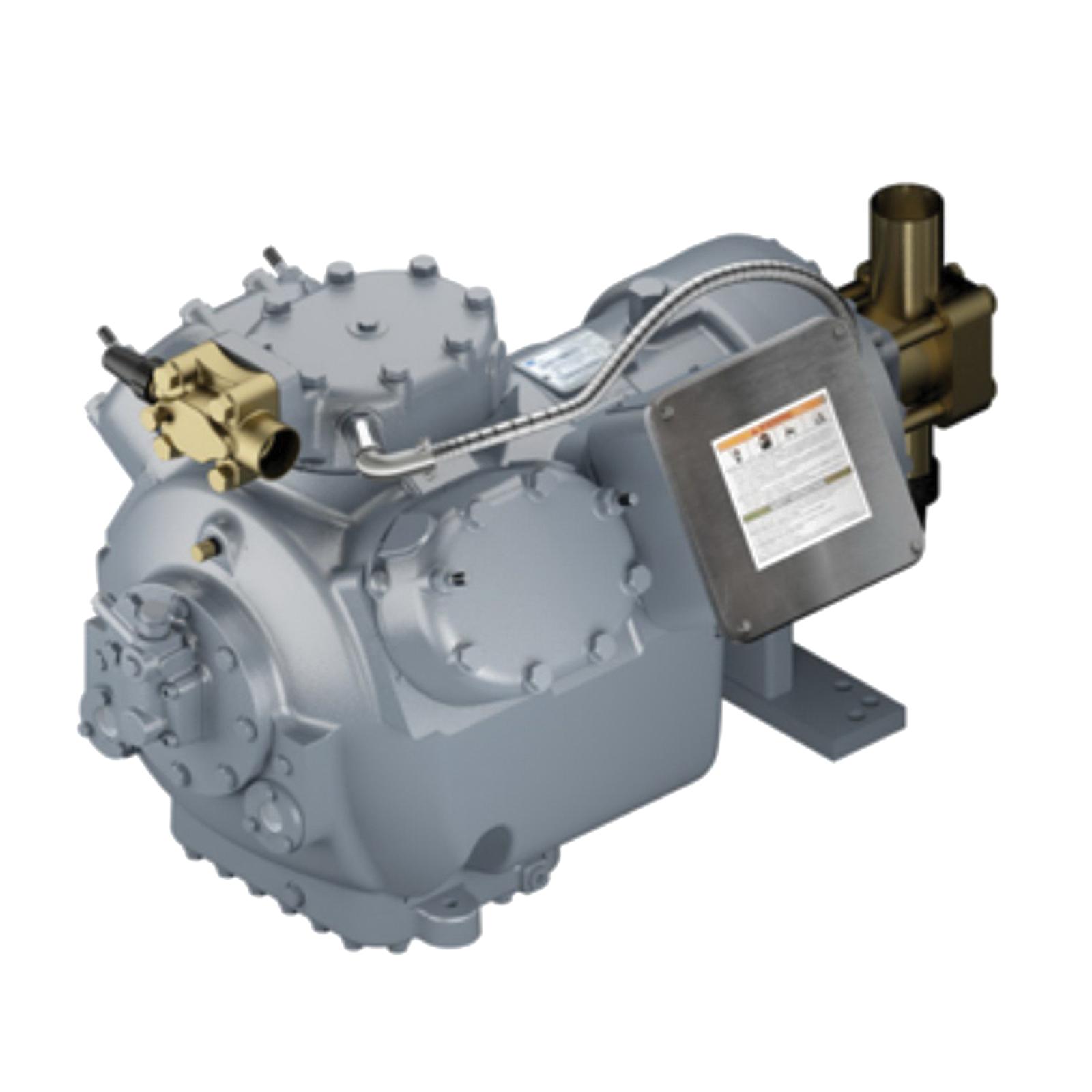

Carlyle® Semi-Hermetic Compressor, Series: 06E, 33600 Btu/hr BTU, 4.58 ton at Low Temperature, 14.45 ton at Medium Temperature, 25.25 ton at High Temperature, 65 cu-ft/min, 460 VAC, 56 A Rated Load, 223 A Locked Rotor, 25 hp, R-22 Refrigerant, 1750 rev/min Speed, 50/145 deg F Maximum Operating, 26.46 in W x 20.17 in H x 11.36 in D
- High-flow, automatically reversible oil pump provides positive displacement oil lubrication
- Crankcase venting system equalizes pressure during start-up and assures oil return to sump
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency
- High efficiency valves provide increased refrigerant flow and lower pressure drops
- Electronic oil pressure switch
- Service compressor with blocked suction cut-off unloader head
- Remanufactured service compressor
- Six-cylinders
- 19 pt oil charge
- 2.688 in bore, 1.98 in stroke
