| Base Width | : | 2.38 in |
| Bearing Material | : | Iron |
| Bolt Center-to-Center Length | : | 2-3/4 in |
| Bolt Size | : | 5/8 in |
| Bore Diameter | : | 2-7/16 in |
| Bore Type | : | Straight |
| Cage Material | : | Fiberglass/Nylon |
| Clearance | : | Standard |
| Color | : | Black |
| Dimensions | : | 9.5 in L x 2.5 in W x 5.44 in H |
| Duty Type | : | Standard |
| Finish | : | Black Oxide |
| Load Capacity | : | 8080 lb Static, 11840 lb Dynamic |
| Maximum Speed Rating | : | 2500 rpm |
| Outside Diameter | : | 3.012 in |
| Rolling Element | : | Ball Bearing |
| Seal Type | : | Single Lip Contact |
| Series | : | VPS 200 Series |
| Temperature Rating | : | 107 to 225 deg F |
| Torque Rating | : | 290 to 325 in-lb |

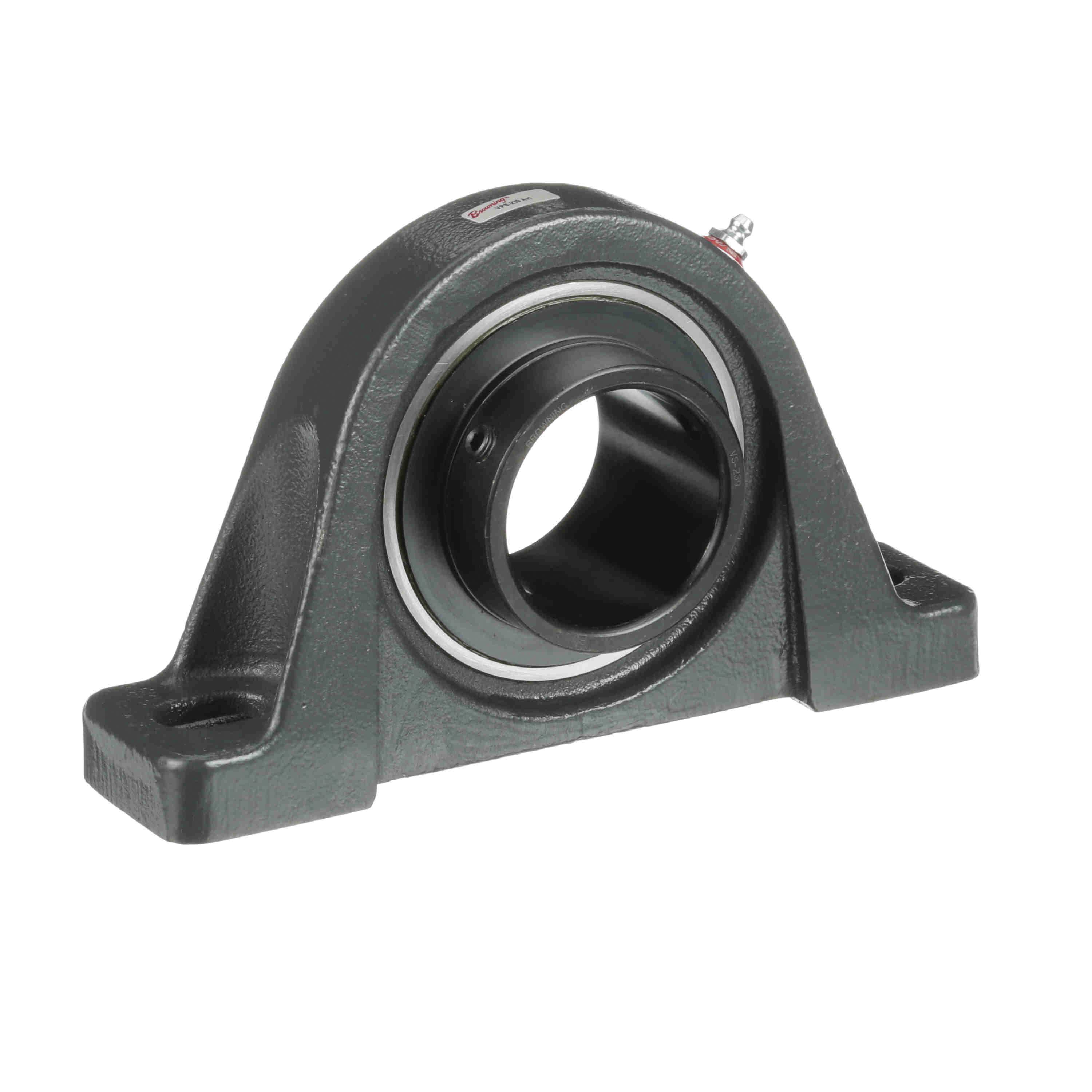

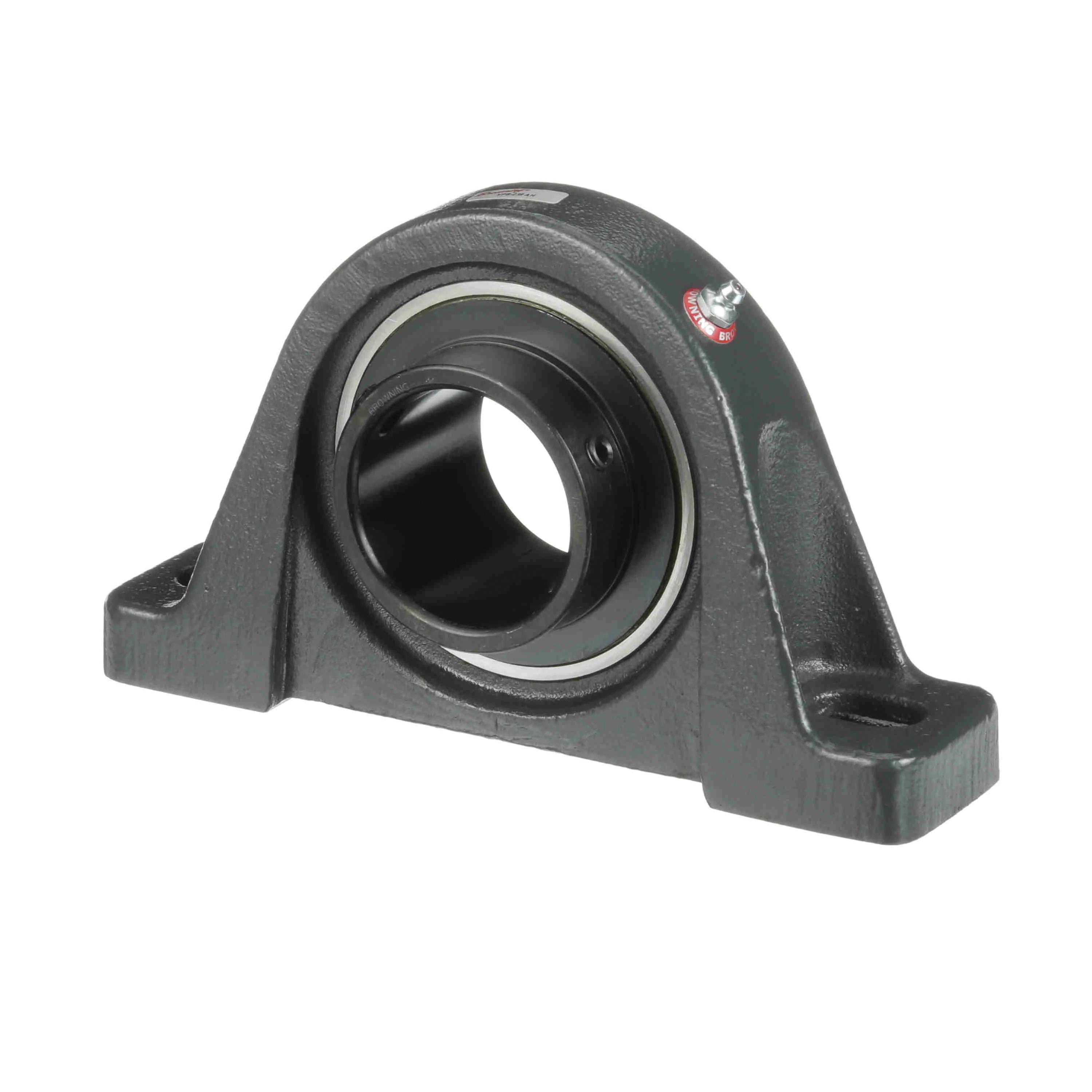

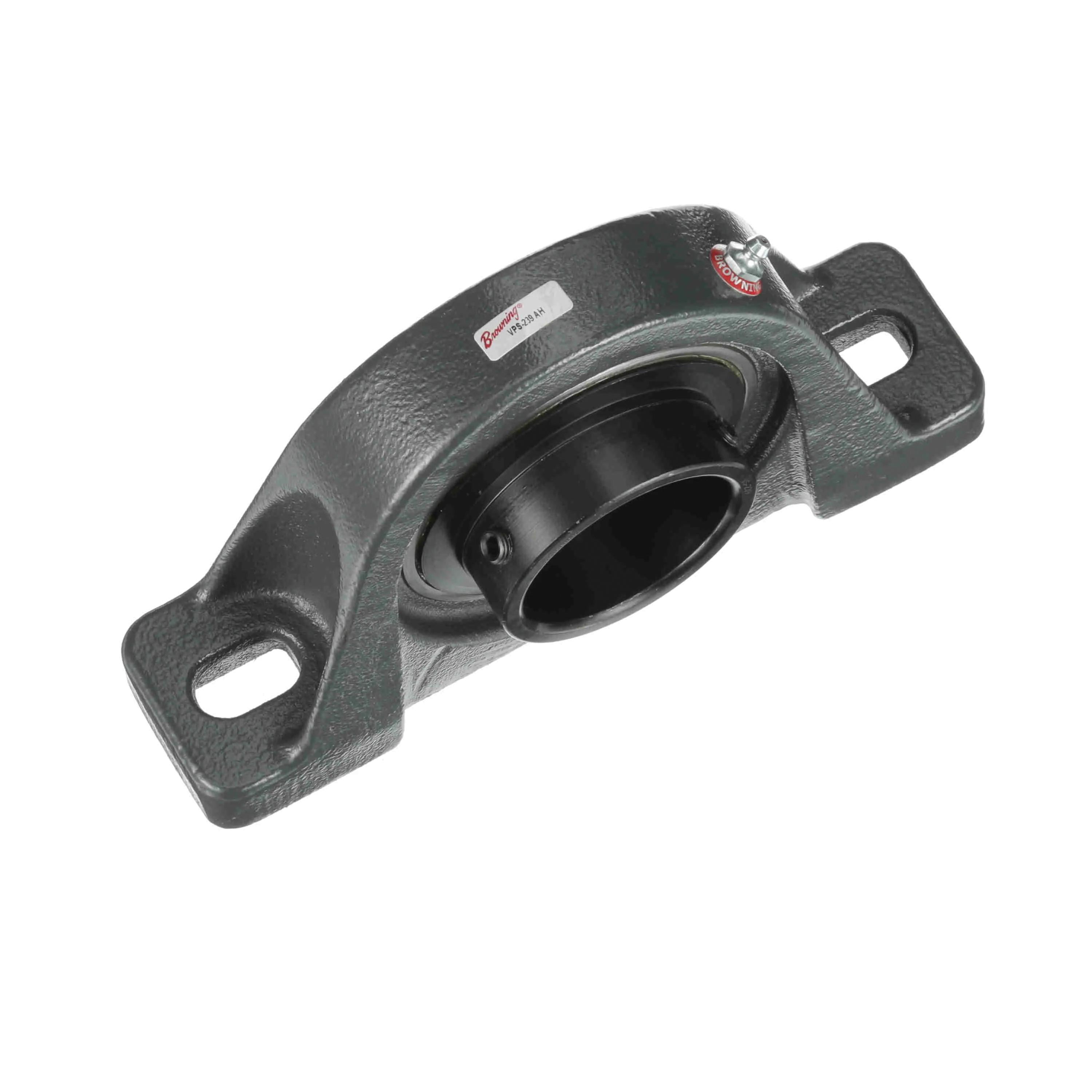

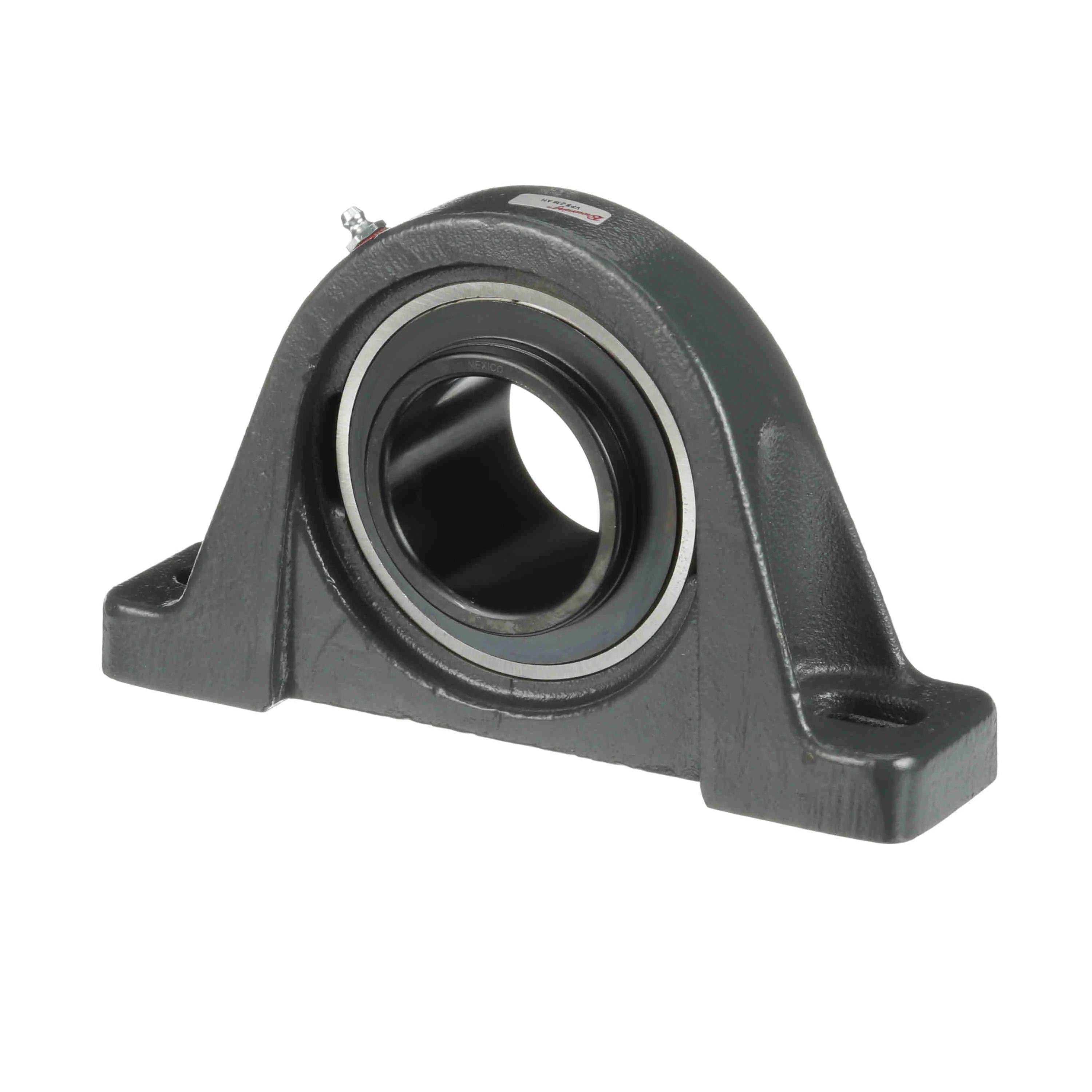

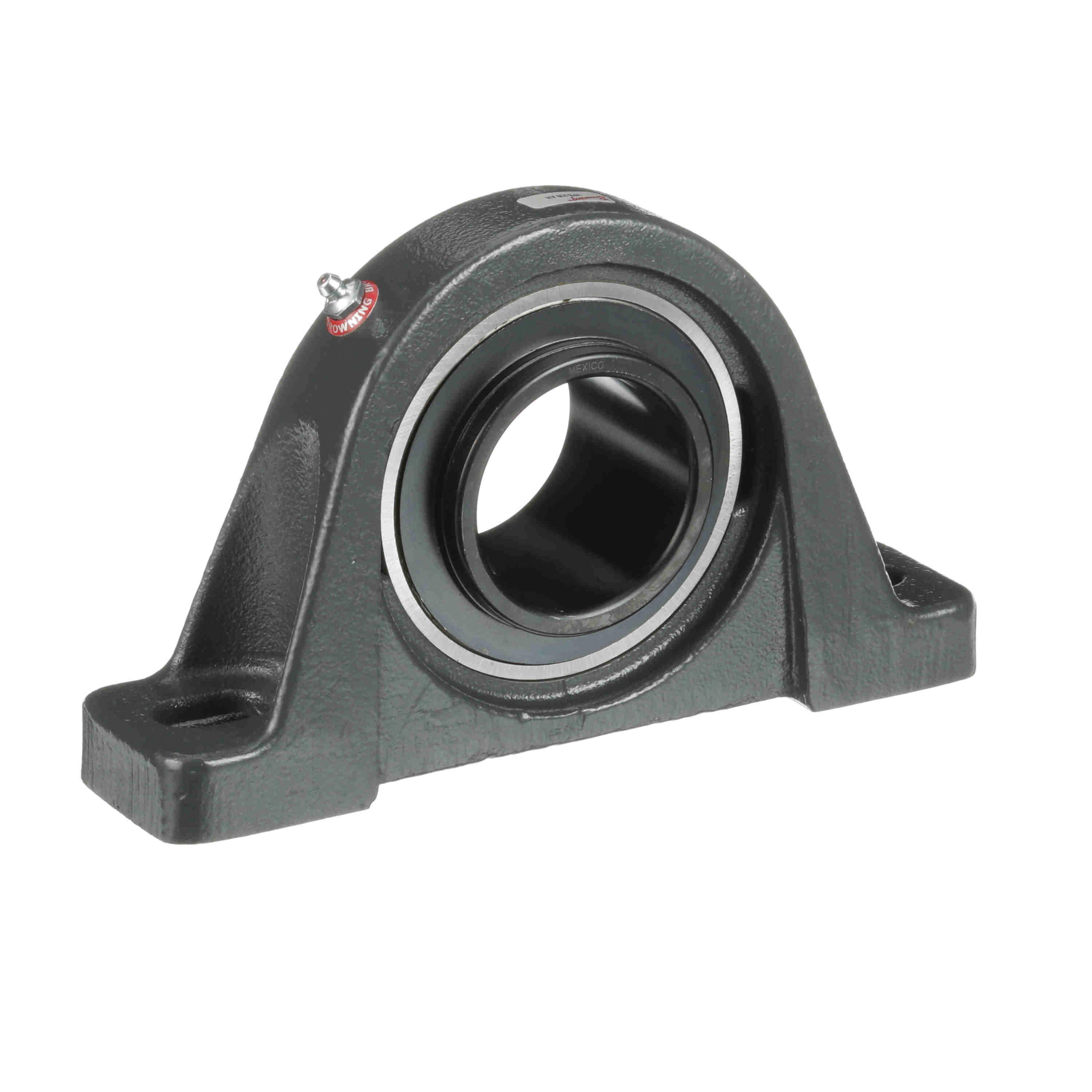

Browning® Pillow Block Ball Bearing, VPS 200 Series, 2-7/16 in Bore Diameter, 3.012 in Outside Diameter, 2.38 in Base Width, 2-3/4 in Bolt Center-to-Center Length, 5/8 in Bolt, 8080 lb Static, 11840 lb Dynamic Load, 290 to 325 in-lb Torque, 2500 rpm Maximum Speed, Straight Bore, Ball Bearing Rolling Element, Standard, Standard Clearance, Single Lip Contact Seal, Iron Bearing, Fiberglass/Nylon Cage, Black, Finish: Black Oxide, 107 to 225 deg F, 9.5 in L x 2.5 in W x 5.44 in H
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
