| Base Width | : | 2 in |
| Base to Bore Centerline | : | 2.13 in |
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 6.11 in |
| Bolt Size | : | 1/2 in |
| Bore Diameter | : | 1-11/16 in |
| Bore Type | : | Straight |
| Cage Material | : | Molded Fiberglass Reinforced Nylon |
| Clearance | : | Standard |
| Color | : | Black |
| Dimensions | : | 7-1/4 in L x 2 in W x 4-1/4 in H |
| Duty Type | : | Standard |
| Expansion Type | : | Non-Expansion |
| Finish | : | Powder-Coated Epoxy |
| Housing Width | : | 2 in |
| Load Capacity | : | 5139 lb Static, 7370 lb Dynamic |
| Locking Device | : | Setscrew |
| Maximum Speed Rating | : | 3000 rpm |
| Mounting Type | : | 2-Bolt Base |
| Rolling Element | : | Ball |
| Seal Type | : | Single Lip with Flinger |
| Temperature Rating | : | 225 deg F |

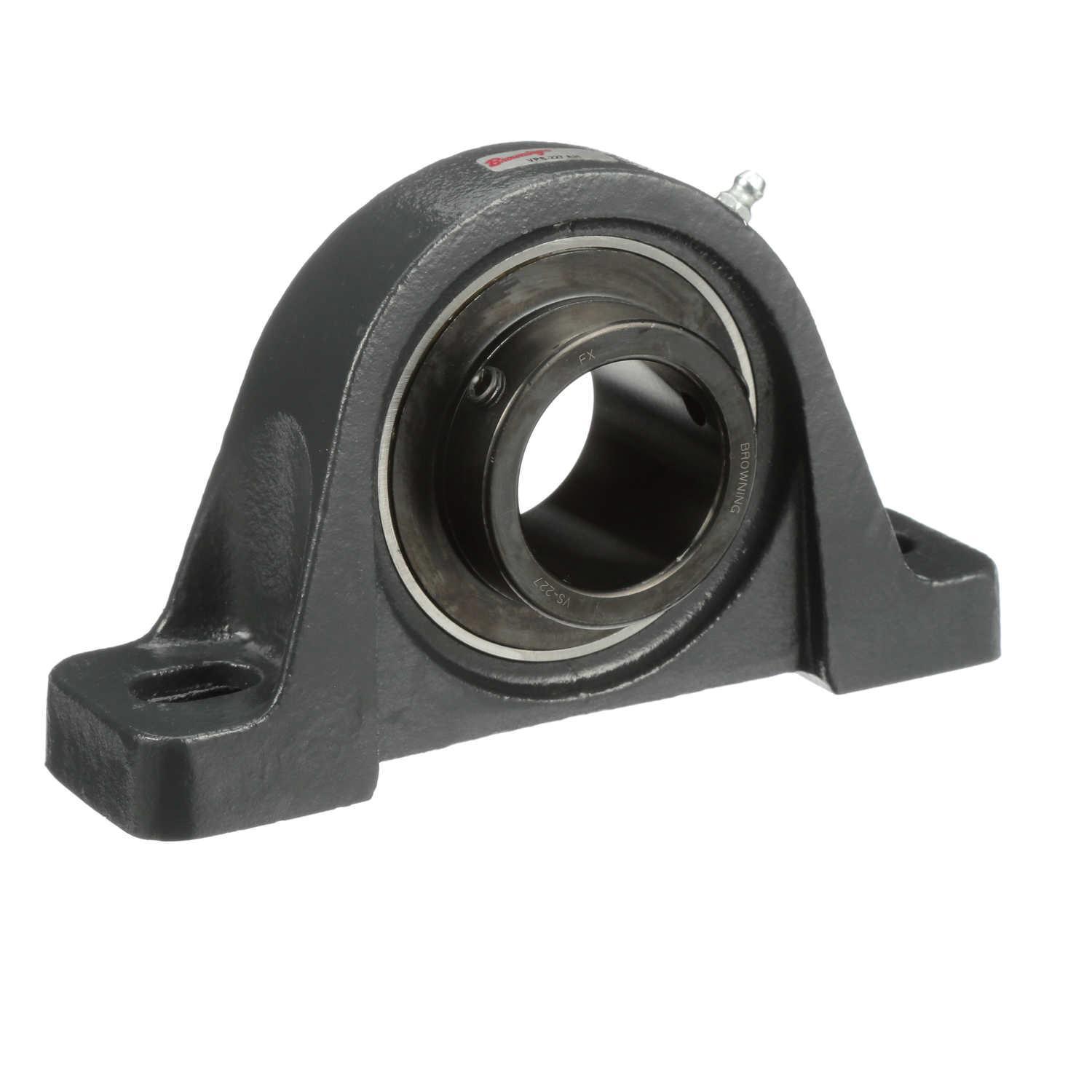

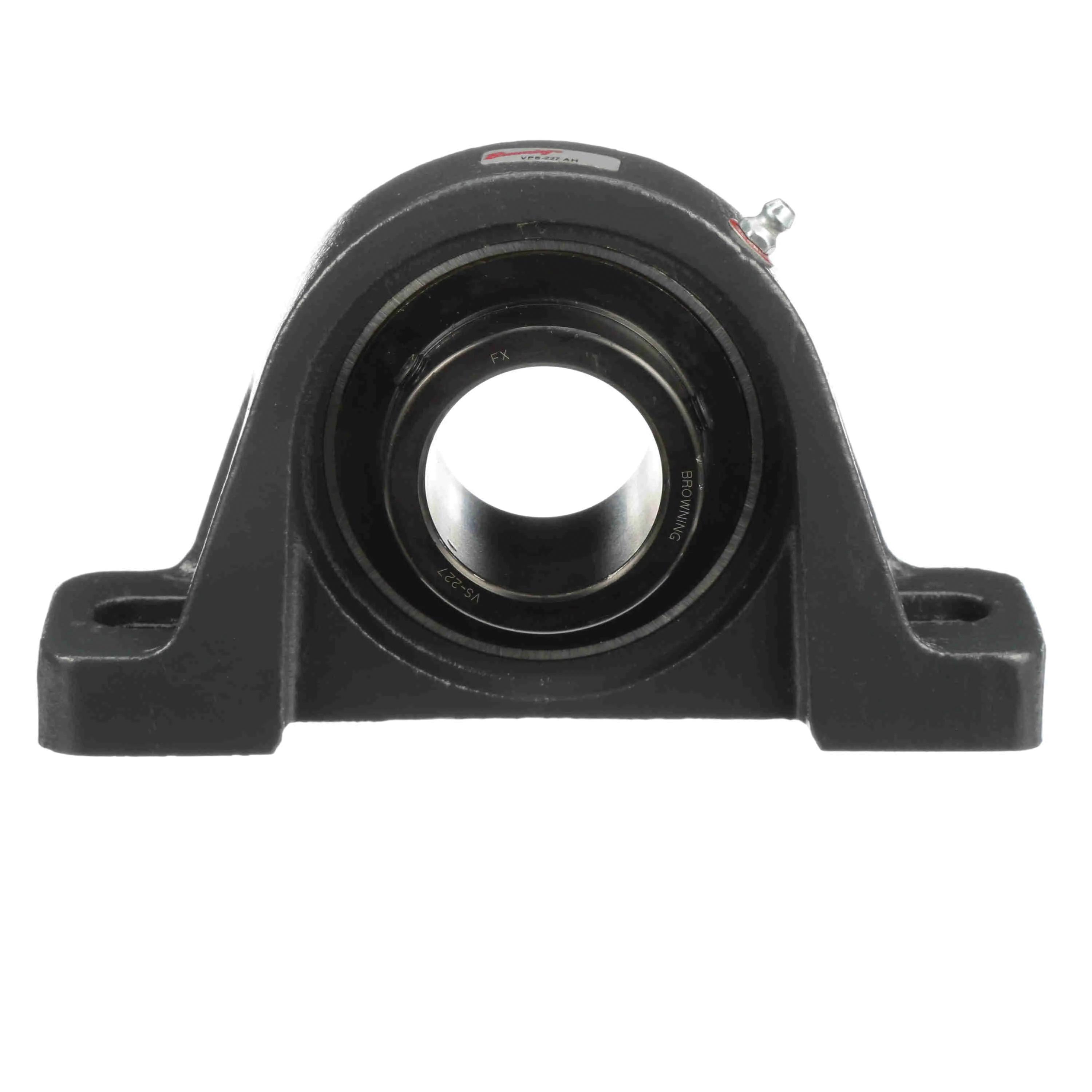

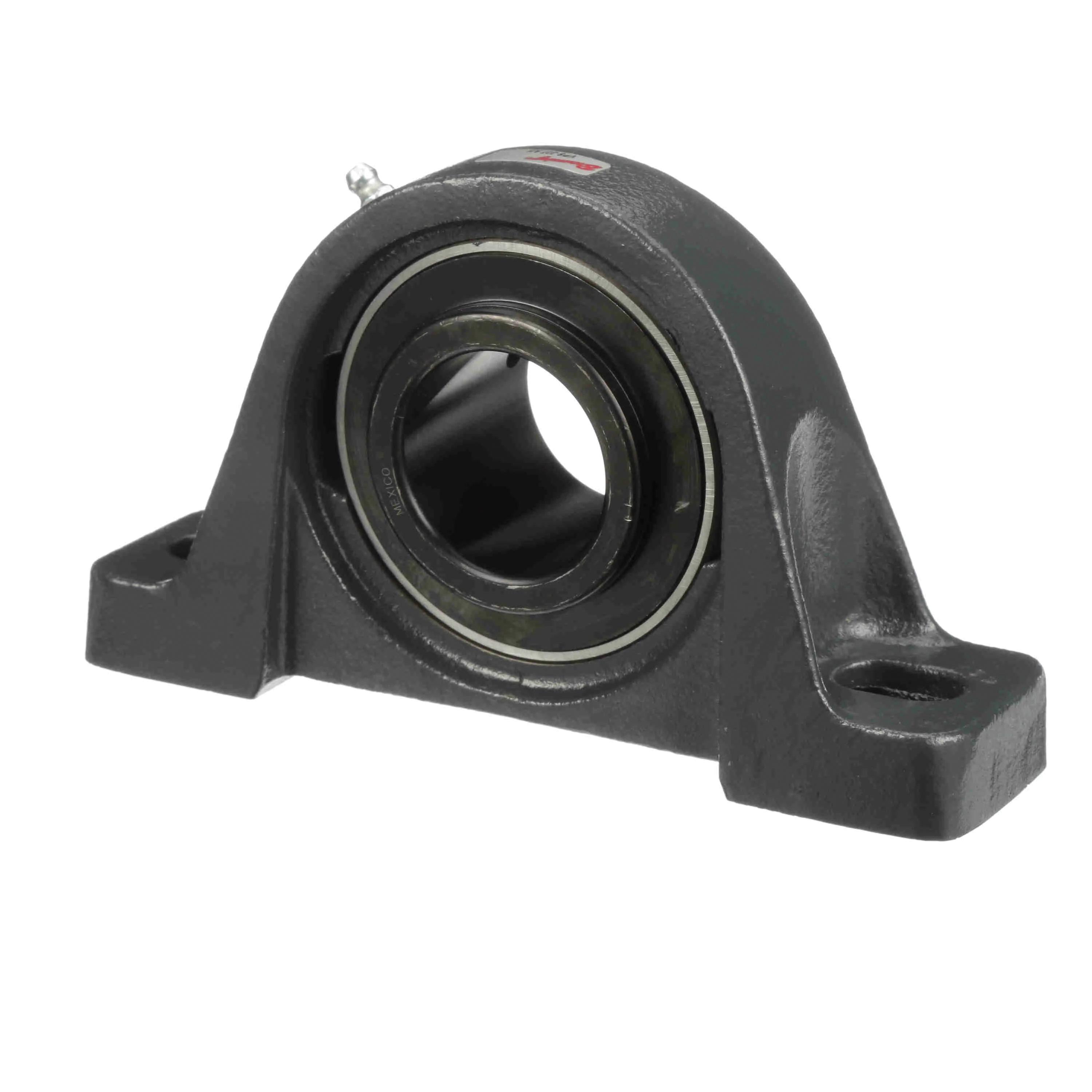

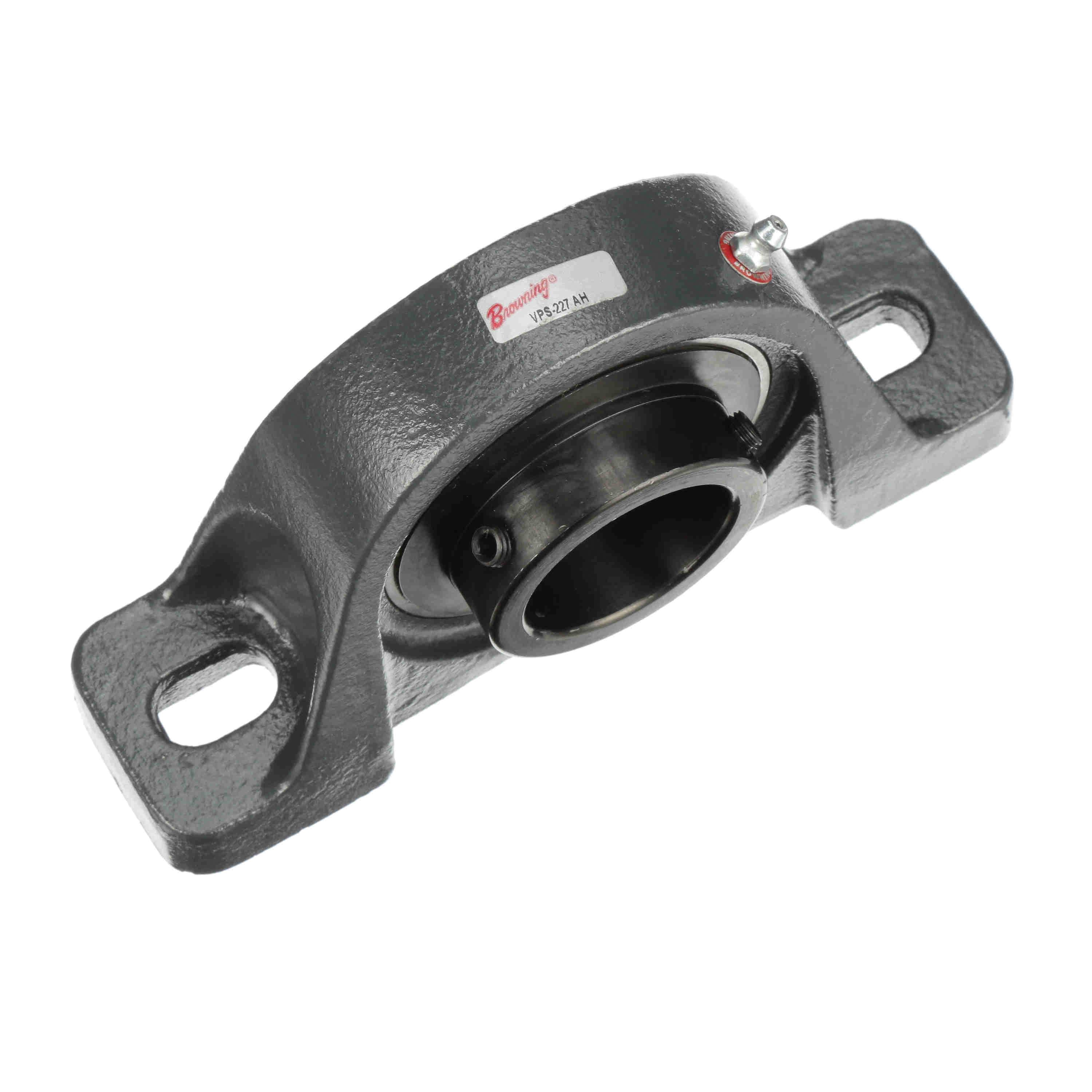

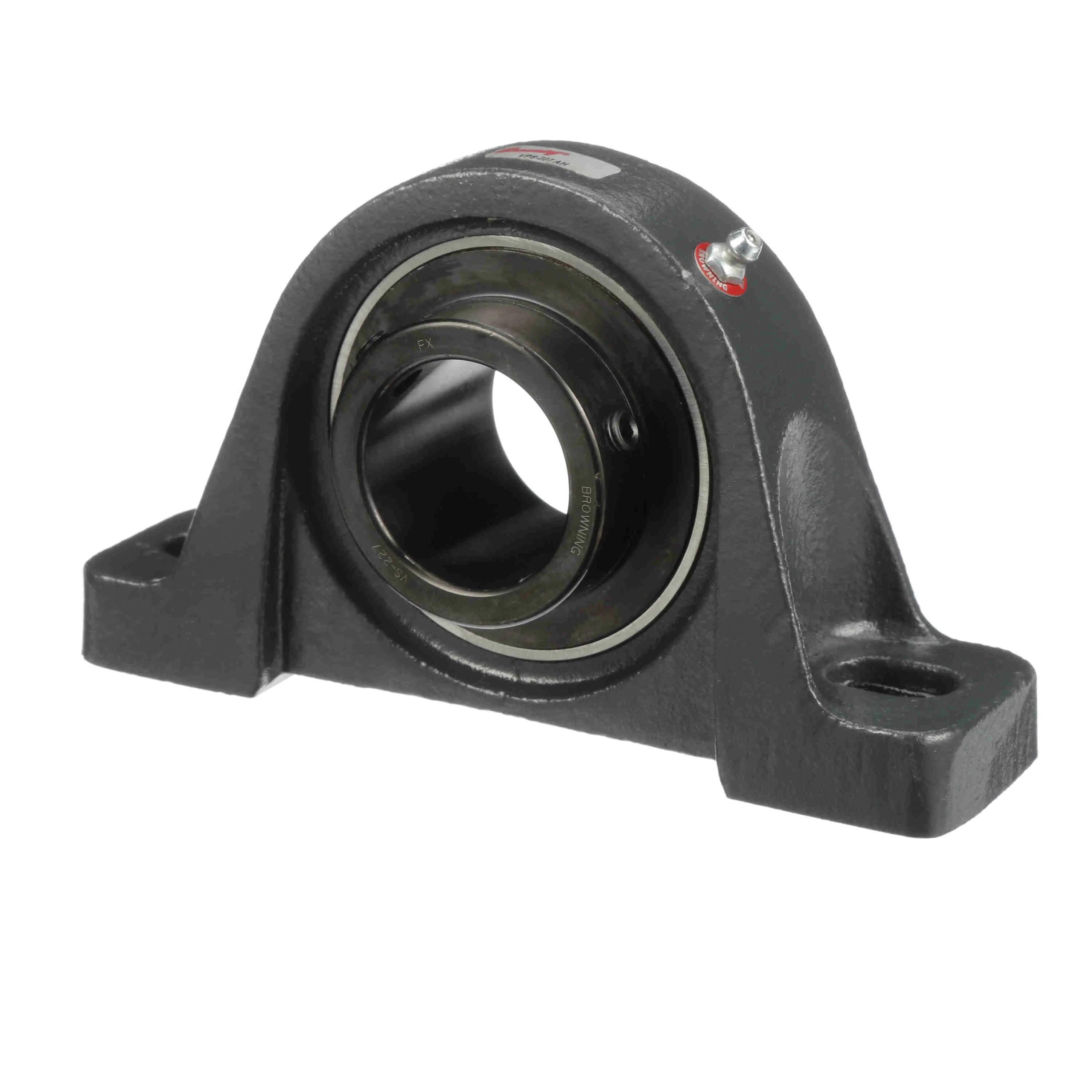

Browning® Pillow Block Ball Bearing, 1-11/16 in Bore Dia, 2 in Base Width, 2 in Housing Width, 6.11 in Bolt Center-to-Center Length, 2.13 in Base to Bore Centerline, 1/2 in Bolt, 5139 lb Static, 7370 lb Dynamic Load Capacity, 3000 rpm Maximum Speed Rating, Straight Bore Type, Ball Rolling Element, Standard Duty Type, Standard Clearance, Single Lip with Flinger Seal, Non-Expansion Type, Setscrew Locking Device, 2-Bolt Base Mount, Cast Iron Bearing, Molded Fiberglass Reinforced Nylon Cage, Black, Powder-Coated Epoxy, 225 deg F, 7-1/4 in L x 2 in W x 4-1/4 in H
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
