| Barrel Diameter | : | 1-5/8 in |
| Bore Diameter | : | 1-1/16 in |
| Cap Screw Size | : | 1/4 x 3/4 in |
| Flange Diameter | : | 2-1/2 in |
| Flange Thickness | : | 1/4 in |
| Flange Type | : | Solid |
| Keyway Size | : | 1/4 x 1/8 in |
| Length | : | 1-1/4 in |
| Material | : | Iron/Steel |
| Number of Cap Screws | : | 2 |
| Outside Diameter | : | 2-1/2 in |
| Torque Rating | : | 95 in-lb |

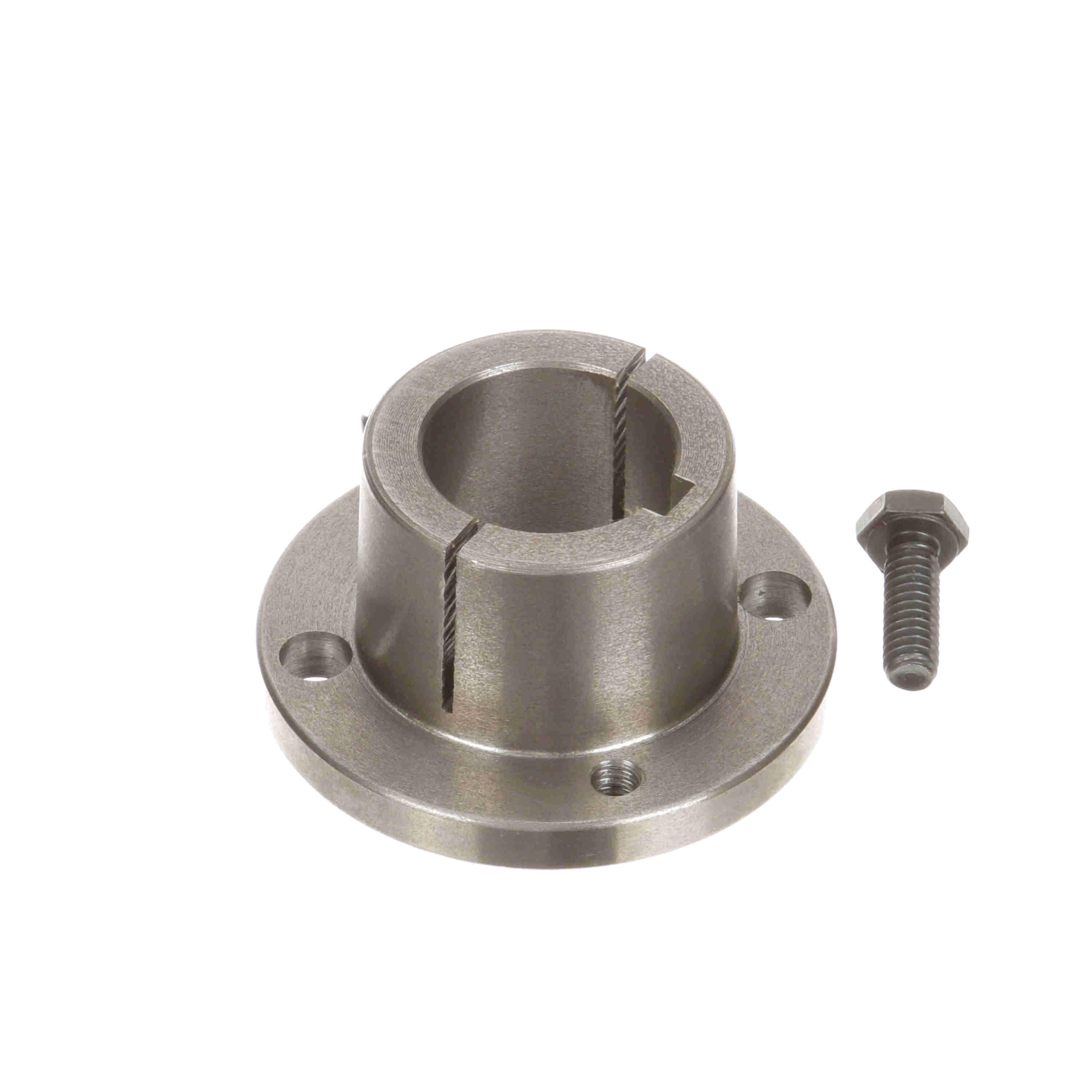

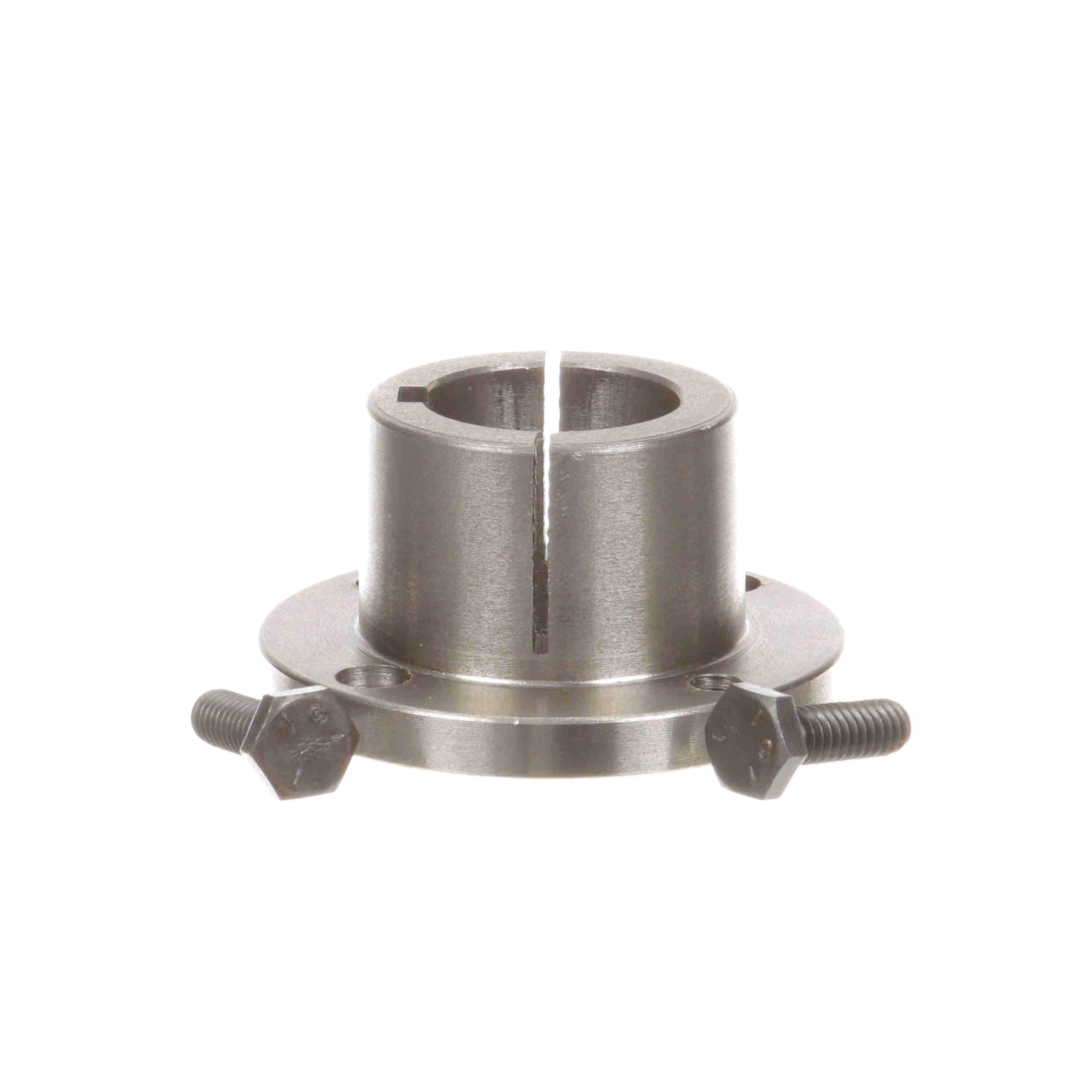

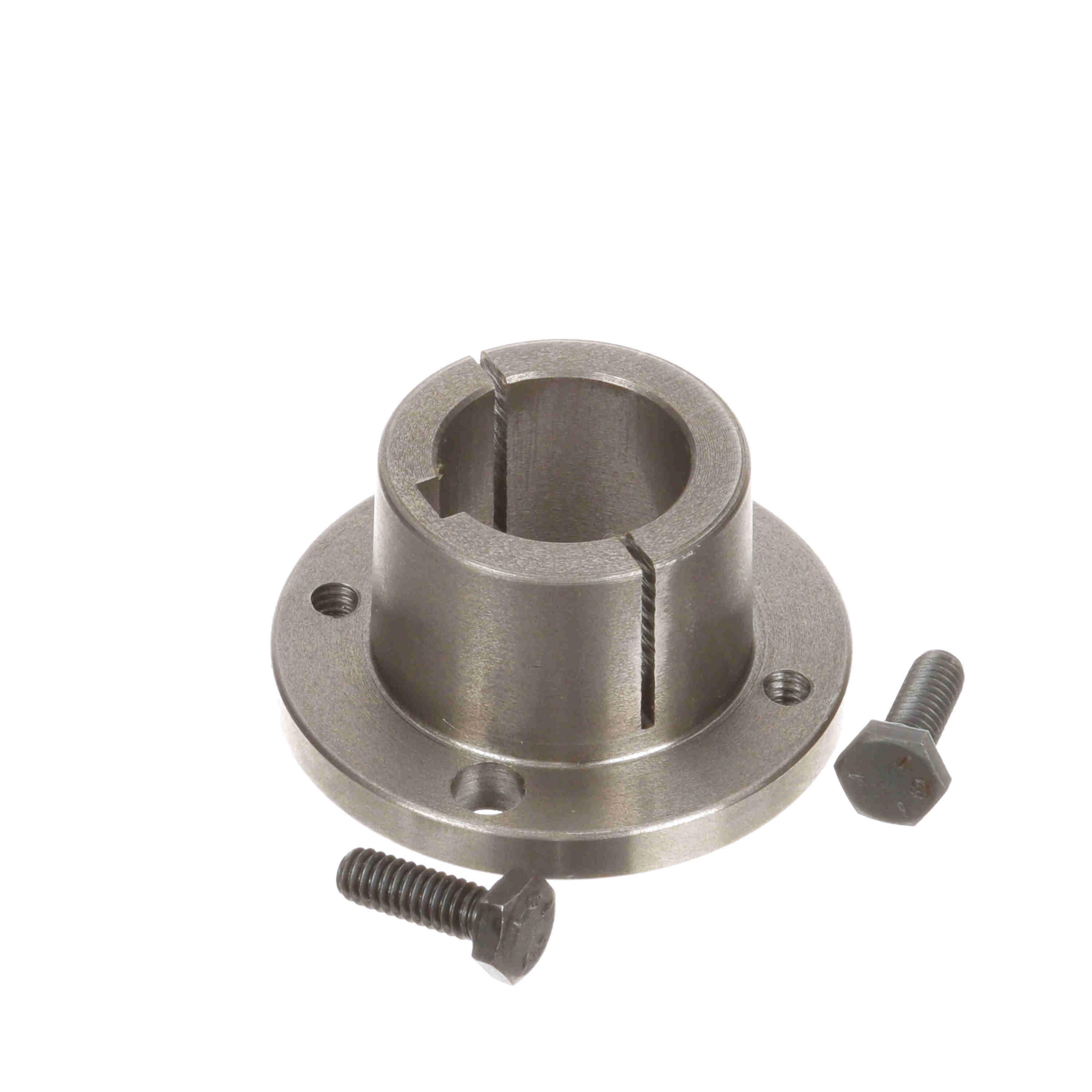

Browning® Split Taper Bushing, 1-1/16 in Bore Diameter, 2-1/2 in Outside Diameter, 1-5/8 in Barrel Diameter, 1-1/4 in Length, 1/4 x 1/8 in Keyway, Solid Flange, 2-1/2 in Flange Diameter, 1/4 in Flange Thickness, 2 Cap Screws, 1/4 x 3/4 in Cap Screw, 95 in-lb Torque, Iron/Steel
- Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
