| Additional Information | : | White Grille |
| Amperage Rating | : | 2.2 A |
| CFM Rating | : | 514 cfm |
| Duct Size | : | 4-1/2 x 18-1/2 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 14 in L x 23-1/4 in W |
| Height | : | 11-3/4 in |
| Length | : | 12-1/4 in |
| Material | : | Steel |
| Motor Specifications | : | 120 VAC, Thermally Protected |
| Mounting Type | : | Ceiling |
| Noise Rating | : | 3.3 sones |
| Power Rating | : | 232 W |
| Series | : | LOSONE SELECT™ Series |
| Speed Rating | : | 810 rpm, 865 rpm |
| Voltage Rating | : | 120 V |
| Width | : | 21-1/2 in |

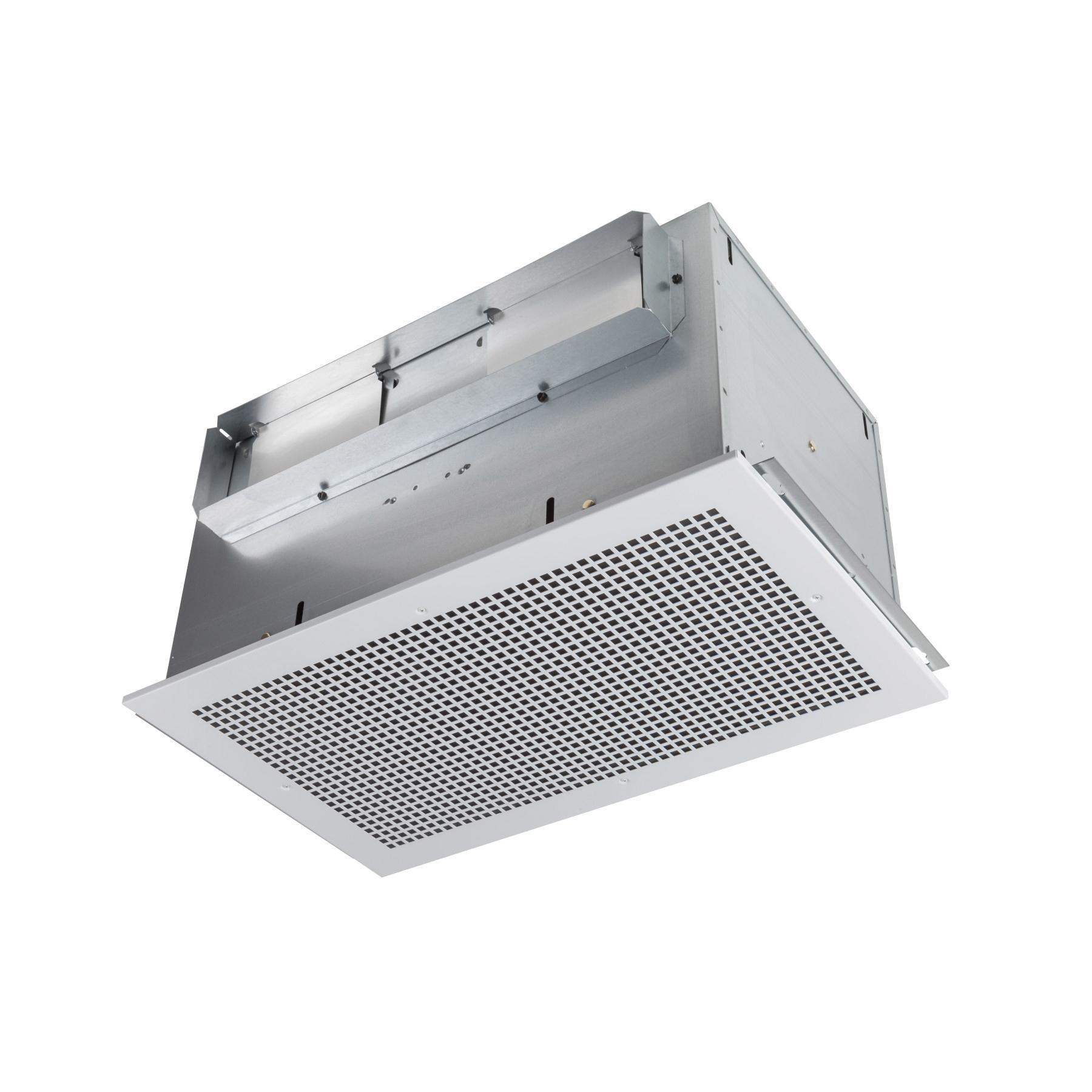

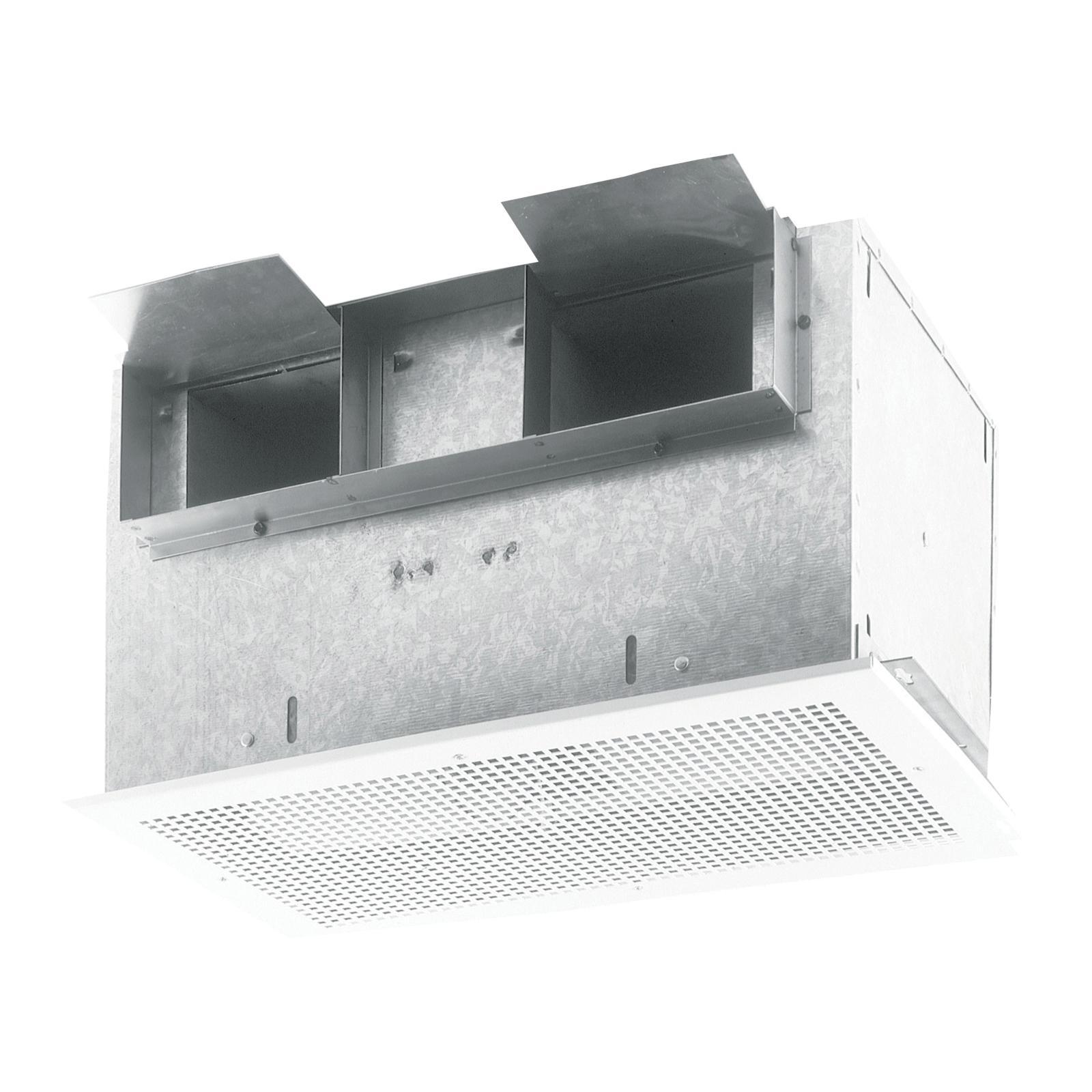

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
Broan-NuTone® Ventilation Fan, LOSONE SELECT™ Series, 120 V, 2.2 A, 60 Hz, 232 W, Steel, Finish: Galvanized, Ceiling Mounting, 12-1/4 in Length, 21-1/2 in Width, 11-3/4 in Height, 14 in L x 23-1/4 in W Grille, 514 cfm, 4-1/2 x 18-1/2 in Duct, Motor Specifications: 120 VAC, Thermally Protected, 3.3 sones Noise Rating, 810 rpm, 865 rpm, Additional Information: White Grille
- 514 CFM, Powerful whole home or commercial vnetilation
- 3.3 Audible Sones for privacy while using your bathroom
- Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
- Duct horizontally, vertically or in-line with separate adapter
- Quiet automatic backdraft dampers
- Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
- Not for use over tub or shower
- UL listed and cUL listed for your safety and protection
- AMCA licensed for air and sound performance
- Powerful enough for rooms up to () sq. ft
- Heavy-gauge galvanized steel housing resists corrosion
- Two impact-resistant centrifugal blower wheels
