| ATTRIBUTES_EXTENDED | : | Amperage Amps-0.6,Culus Listed-Yes,Cul Listed-Yes,Frequency Hz-50,Housing Material-Steel,Hvi Certified-Yes,Includes-Mounting Brackets;backdraft damper,Motor Speed Rpm-1228,Rohs Certification-Yes,Ul Listed-Yes,Wattage-61 |
| Amperage Rating | : | 0.6 A |
| Dimensions | : | 12-1/4 in L x 12-1/4 in W x 11-3/4 in H |
| Duct Size | : | 8 in |
| Finish | : | Galvanized |
| Flow Rate | : | 230 cfm |
| Frequency Rating | : | 60 Hz |
| Gauge | : | 20 ga |
| Material | : | Steel |
| Motor Type | : | Plug-In |
| Power Rating | : | 3.9 W |
| Sound Level | : | 2.3 sones |
| Speed Rating | : | 1158 rpm |
| Voltage Rating | : | 120 V |
| mFinish | : | White |
Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.

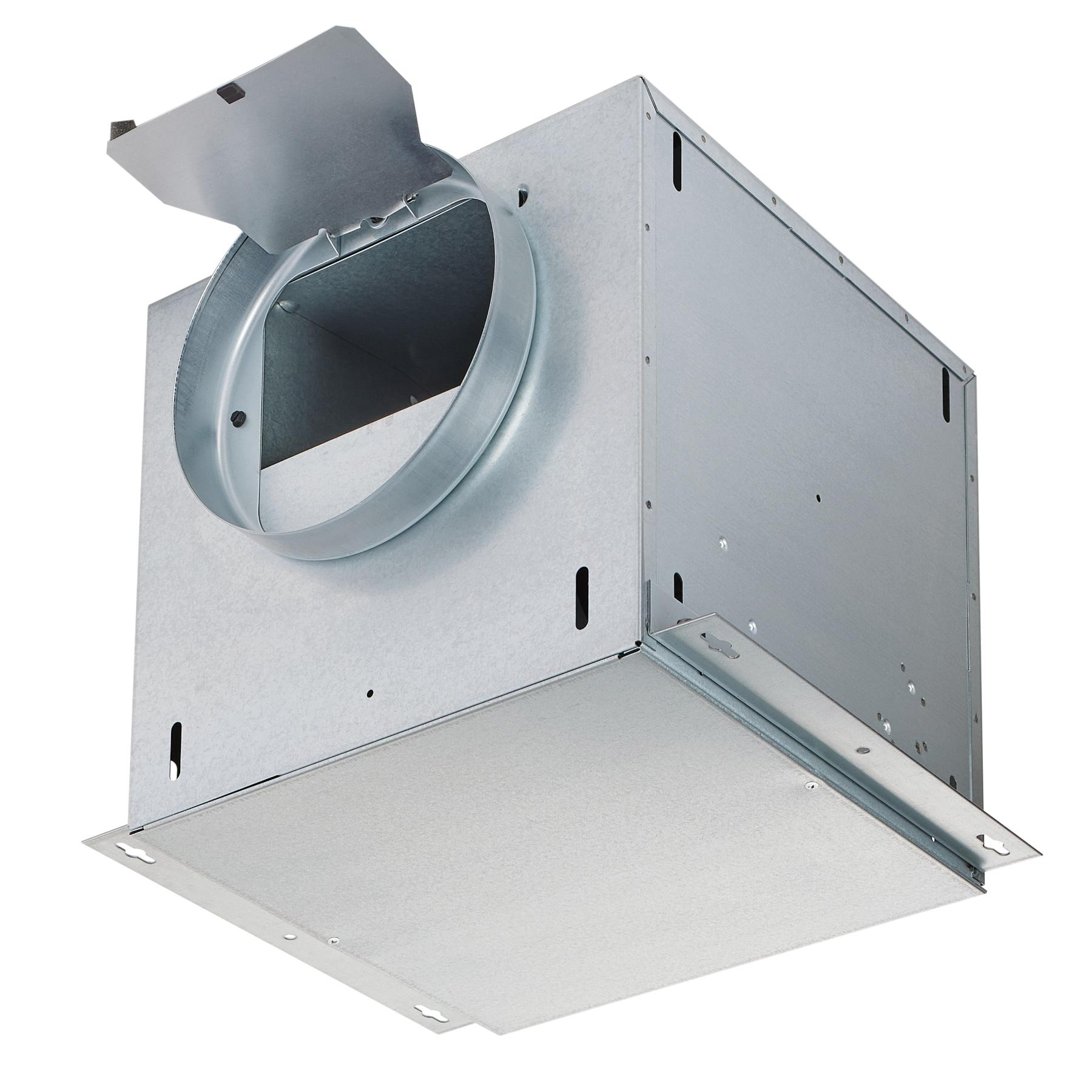

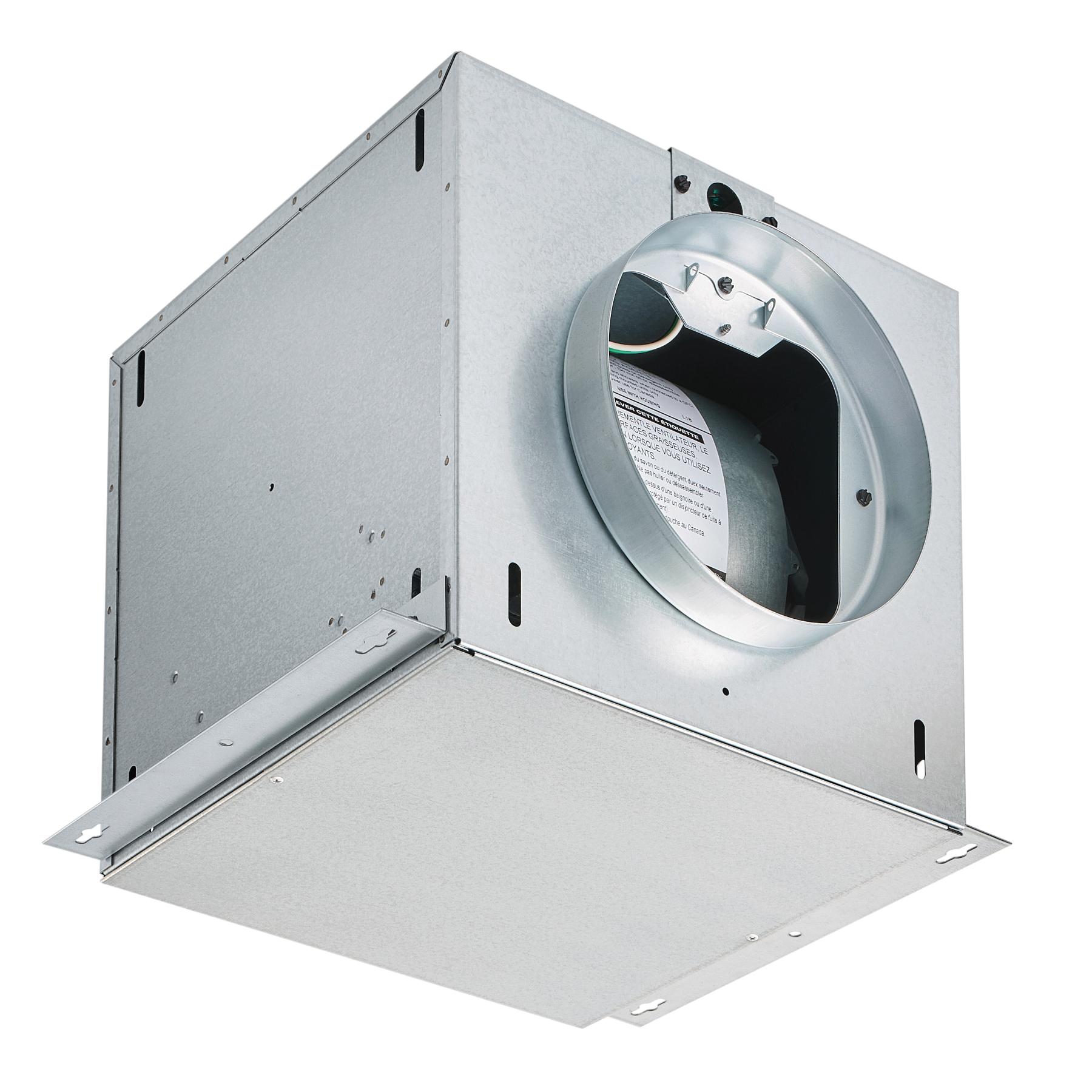

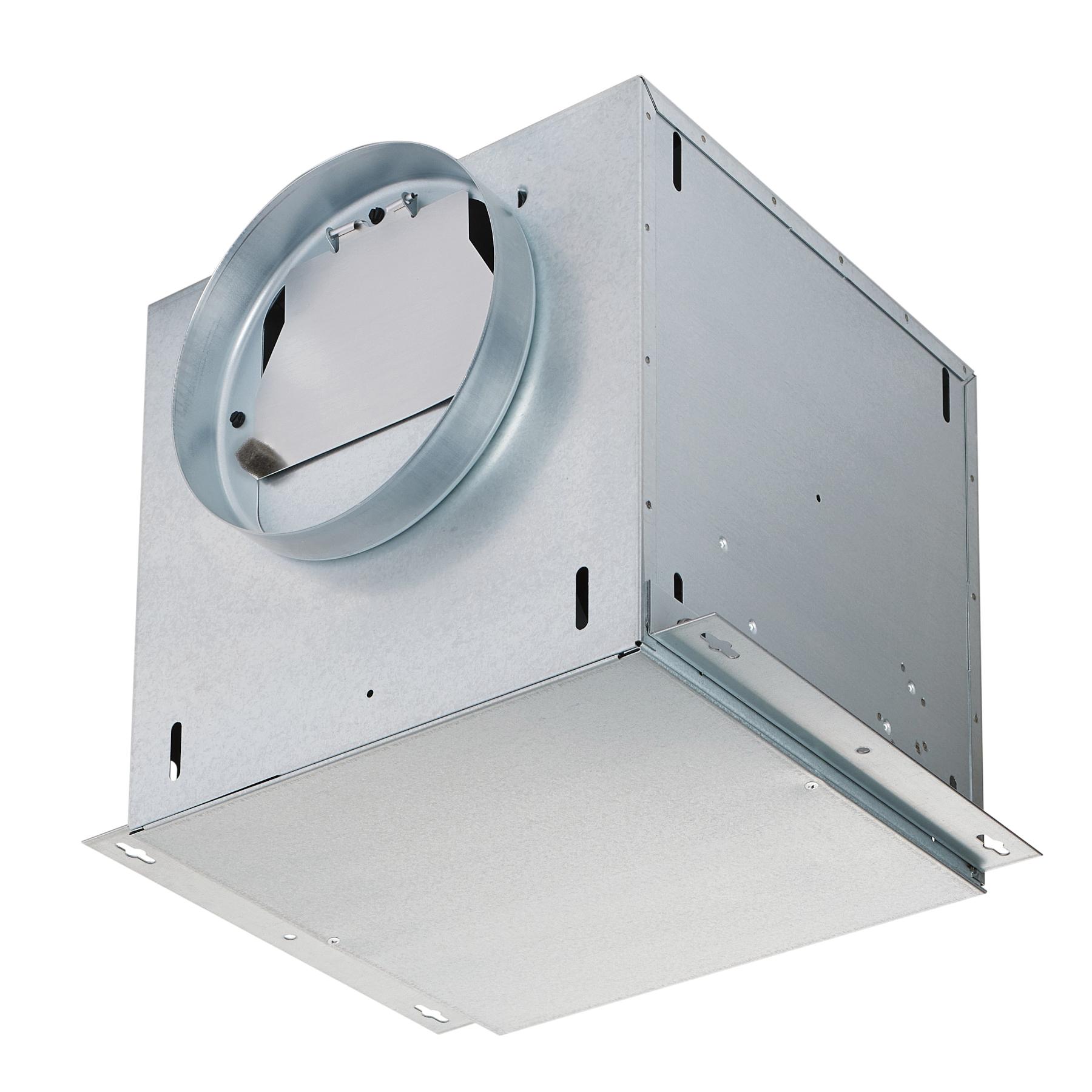

Broan-NuTone® Ventilation Fan, 0.6 A, 120 V, 60 Hz, 3.9 W, 1158 rpm, 230 cfm Flow Rate, 8 in Duct, Plug-In Motor, 2.3 sones Sound Level, 20 ga Gauge, Steel, Finish: Galvanized, 12-1/4 in L x 12-1/4 in W x 11-3/4 in H
- 233 CFM InLine commercial ventilation fan
- Standard 8" round ducting for all ENERGY STAR® certified models
- AMCA and HVI air tested
- Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
- Model 80L Variable speed control adjusts blower speed and sound level (available separately)
- cULus Listed for safety and protection
