| Additional Information | : | High-Capacity Type, White Grille |
| Amperage Rating | : | 0.3 A |
| CFM Rating | : | 130 cfm |
| Duct Size | : | 8 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 14 in L x 14 in W |
| Height | : | 11-3/4 in |
| Length | : | 12-1/4 in |
| Material | : | Steel |
| Motor Specifications | : | 120 VAC, Thermally Protected |
| Mounting Type | : | Ceiling |
| Noise Rating | : | 0.3 sones |
| Speed Rating | : | 799 rpm, 803 rpm |
| Voltage Rating | : | 120 V |
| Width | : | 12-1/4 in |
Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.

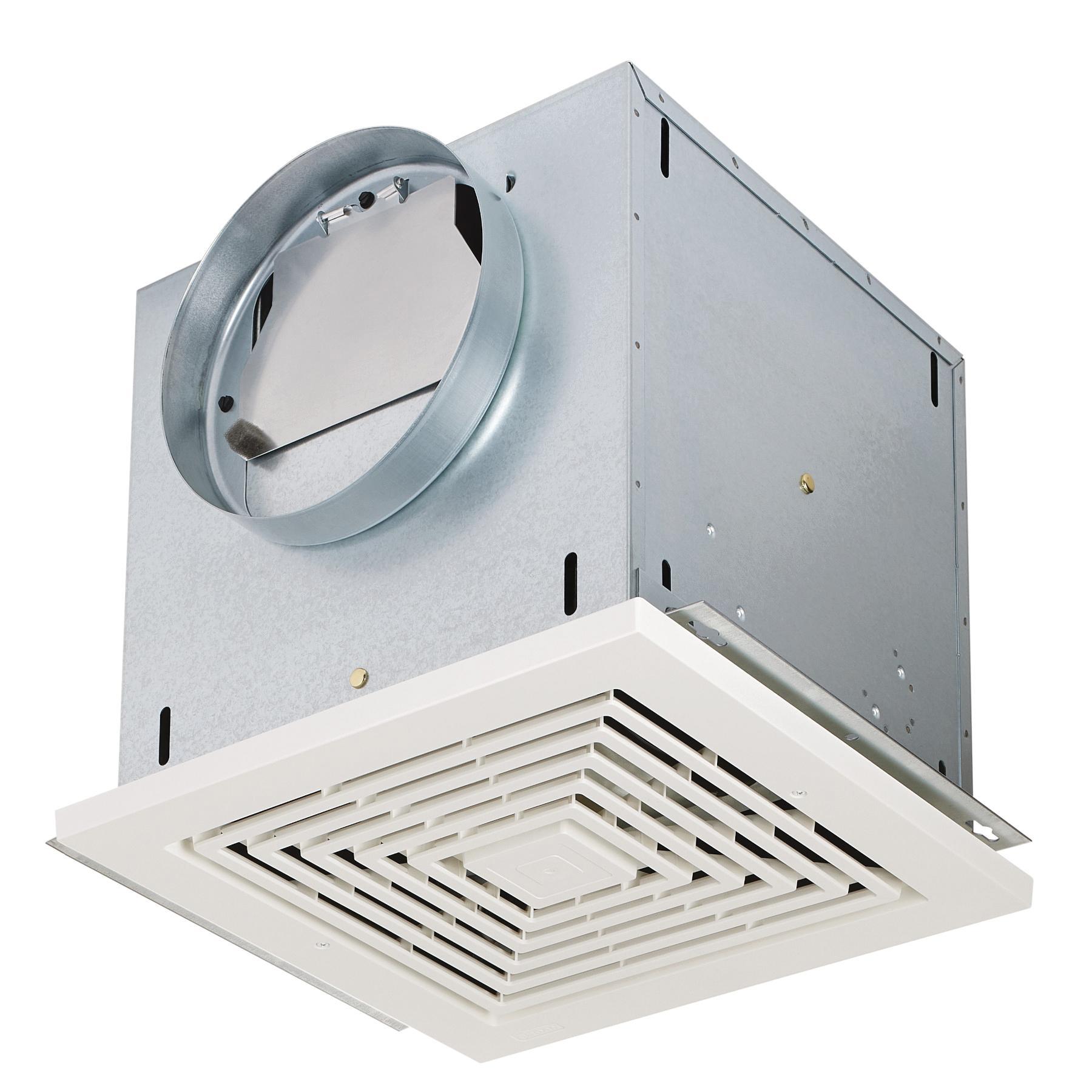

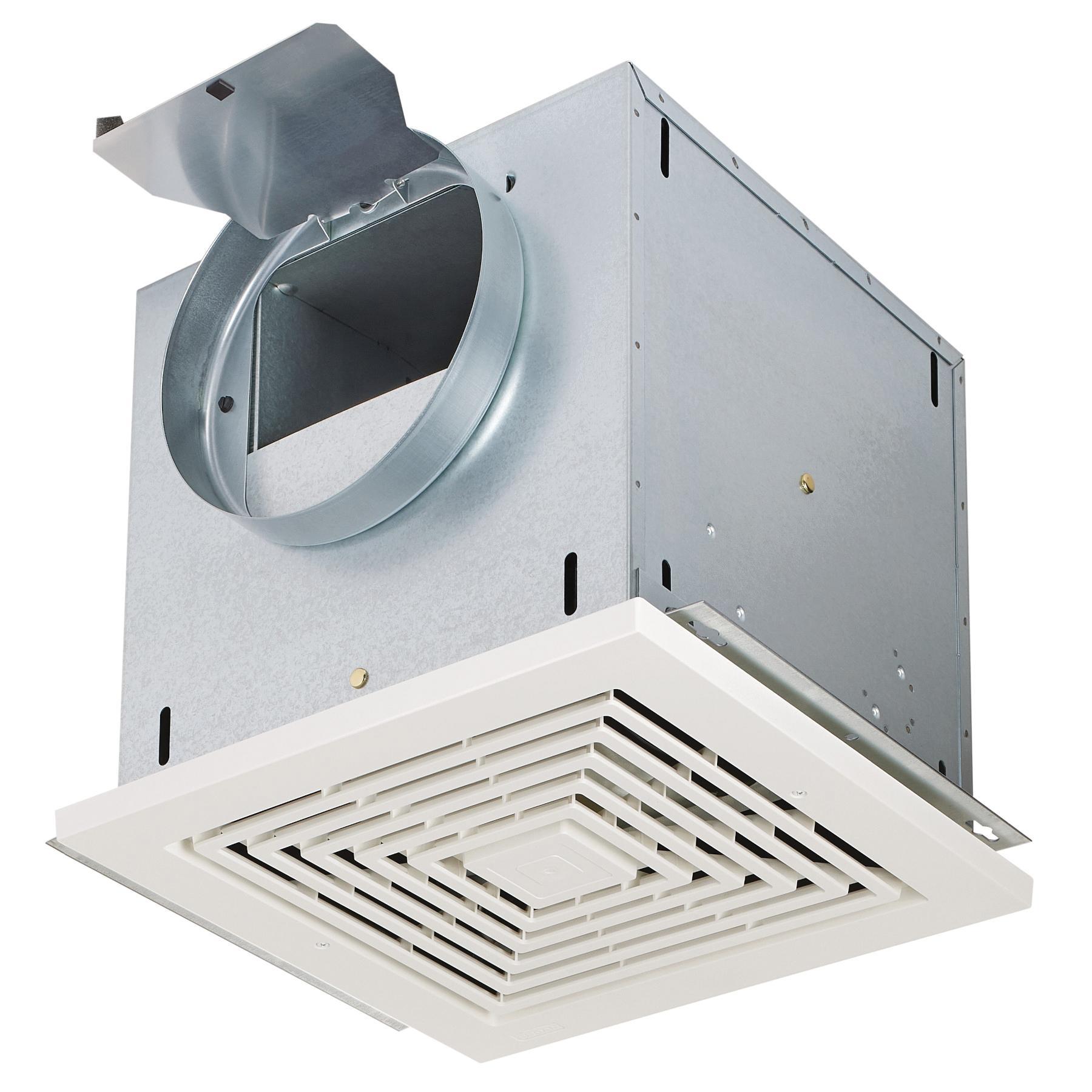

Broan-NuTone® Ventilation Fan, 120 V, 0.3 A, 60 Hz, Steel, Finish: Galvanized, Ceiling Mounting, 12-1/4 in Length, 12-1/4 in Width, 11-3/4 in Height, 14 in L x 14 in W Grille, 130 cfm, 8 in Duct, Motor Specifications: 120 VAC, Thermally Protected, 0.3 sones Noise Rating, 799 rpm, 803 rpm, Additional Information: High-Capacity Type, White Grille
- 130 CFM, 0.3 sones ceiling mount commercial ventilation fan
- Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
- Duct Horizontally or vertically
- Standard 8" round ducting for all ENERGY STAR® certified models
- ENERGY STAR® certified
- AMCA and HVI air and sound tested
- Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
- Model 80L Variable speed control adjusts blower speed and sound level (available separately)
- Metal upgrade grille cover available (MG1)
- Radiation Damper available to prevent the spread of fire (Model RD1 sold separately)
- cULus Listed for safety and protection
