| Amperage Rating | : | 2.1 A |
| CFM Rating | : | 1200 cfm |
| Compressor Type | : | Rotary |
| Configuration | : | Horizontal |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Cooling BTU Rating | : | 34200 Btu/hr |
| Dimensions | : | 52 in L x 37-3/4 in W x 24-13/16 in H |
| Drive Type | : | Modulating Inverter |
| EER Rating | : | 9 |
| Finish | : | Powder-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 35 A |
| HP Rating | : | 1/3 hp |
| HSPF Rating | : | 8.1 |
| Heating BTU Rating | : | 34600 Btu/hr |
| Material | : | Steel |
| Model | : | BPHA |
| Nominal Capacity | : | 3 ton |
| Number of Stages | : | 4 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 200 to 1050 rpm |
| SEER Rating | : | 16 |
| Series | : | IDP Plus Series |
| Voltage Rating | : | 208/230 V |
| Wattage | : | 3.07 kW |
The IDP Plus provides the perfect balance of efficiency and comfort.

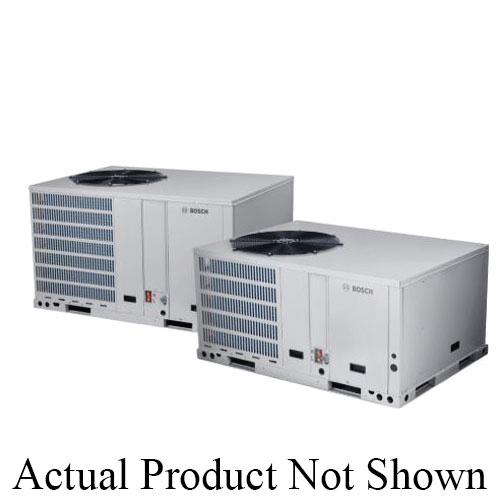

BOSCH Inverter Ducted Packaged Heat Pump, IDP Plus Series, Model: BPHA, 3 ton Nominal Capacity, 34200 Btu/hr Cooling, 34600 Btu/hr Heating, 208/230 V, 2.1 A, 3.07 kW Wattage, 1/3 hp, 60 Hz, 1 ph Phase, 200 to 1050 rpm Rotational Speed, Rotary Compressor, 1200 cfm, 16 SEER, 8.1 HSPF, 9 EER Rating, Horizontal, NPT Connection, 3/4 in Connection, R-454B Refrigerant, 4 Stages, 35 A Fuse Rating, Modulating Inverter Drive, Steel, Finish: Powder-Painted, 52 in L x 37-3/4 in W x 24-13/16 in H
- The A2L refrigerant, R-454B, meets low-global warming potential (Low-GWP) requirements
- Up to 16 SEER2 | 8.5 HSPF2
- Fully modulating inverter drive
- 11 speed ECM outdoor motor for premium efficiency and whisper quiet operation
- The Bosch IDP Plus (R-454B Version) provides the perfect balance of efficiency and comfort at the standard 16-SEER2 efficiency level, without breaking the bank. This unit is available in 3-ton and 5-ton models and also features a fully modulating inverter drive to precisely match the heating/cooling load. Equipped with R-454B refrigerant, the IDP Plus meets the criteria for a lower global warming potential A2L refrigerant
- Through the use of silent blade technology, sound isolating mounts and outdoor condensing section placement - this IDP system can deliver whisper quiet operation
- The IDP Plus automatically adjusts its output capacity to accommodate your ideal temperature setting. The unit also reduces humidity through a system of four-stage fan controls
- The frequent on and off of traditional units creates an in-rush current surge which uses more energy and causes unneeded wear and tear on your system. The Bosch IDP Plus smoothly ramps up operation, avoiding spikes in energy use and protecting the system's life cycle
- The boosted compressor speed of the IDP allows for quicker, smoother, and more efficient heating and cooling
- Receive up to 10 years protection on parts. This standard offering covers all components incorporated at the time of manufacture. All other components or parts that are purchased from Bosch and installed in the field have a 1-year parts warranty
