| Amperage Rating | : | 4 A |
| Configuration | : | Vertical |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Cooling Capacity | : | 54000 Btu/hr |
| Coverage Area | : | 5.99 sq-ft |
| Dimensions | : | 54-1/2 in H x 22 in W x 24 in D |
| Filter Size | : | 20 x 22 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Heating Capacity | : | 60000 Btu/hr |
| Liquid Line Size | : | 3/8 in |
| Material | : | Aluminum |
| Motor Type | : | PSC |
| Nominal Capacity | : | 5 ton |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 15 |
| Series | : | A, Light Series |
| Sound Level | : | 73.7 dBA |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 208/230 V |

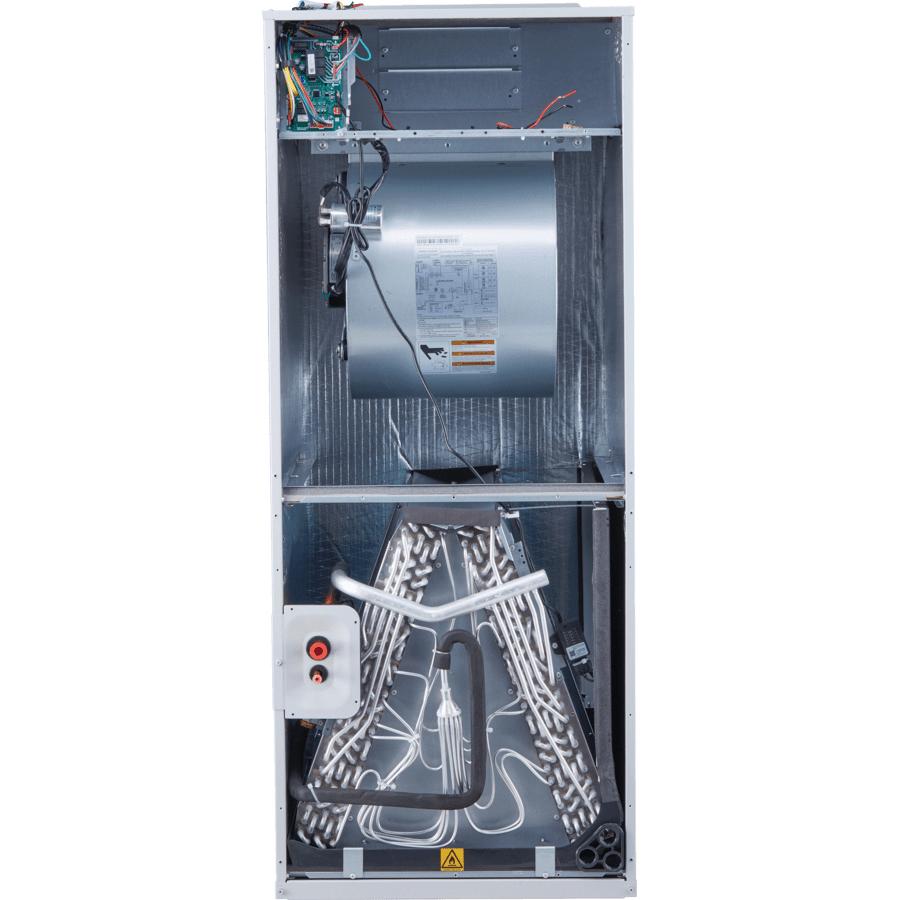

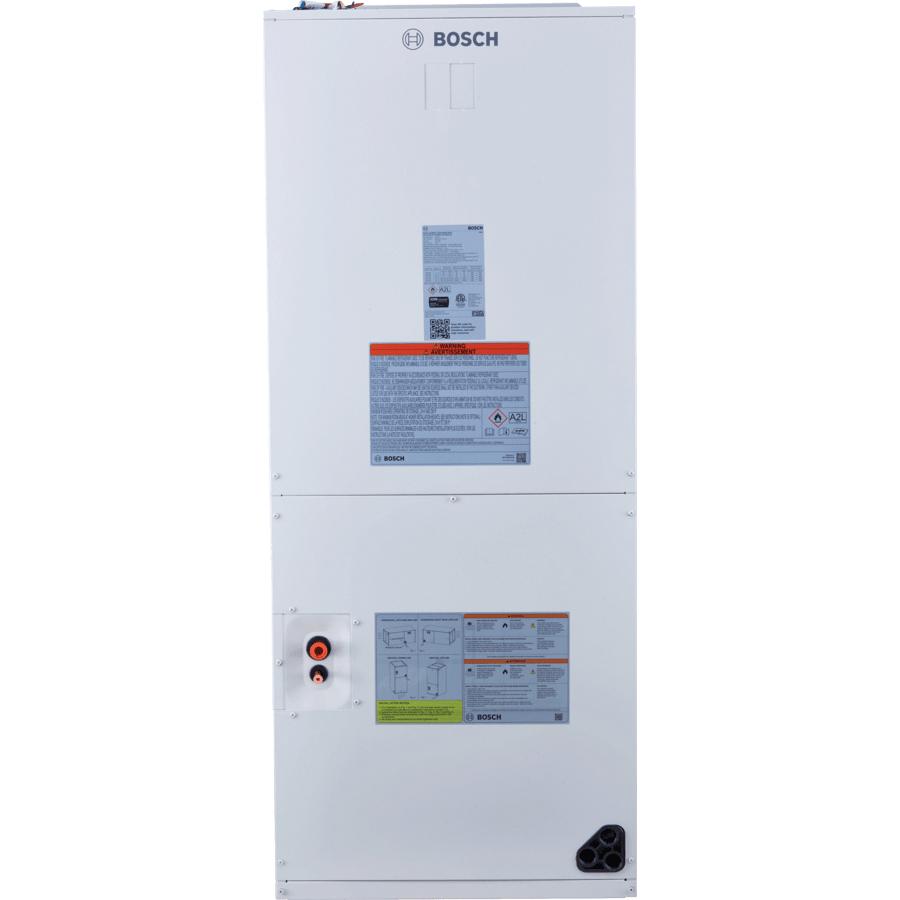

Complete your IDS Light (R-454B version) with this highly efficient and easy-to-install AHU from Bosch.
BOSCH Air Handler Unit, A, Light Series, 5 ton Nominal Capacity, 54000 Btu/hr Cooling Capacity, 60000 Btu/hr Heating, 208/230 V, 4 A, 1/2 hp, 60 Hz, 1 ph Phase, Vertical, 15 SEER, FNPT Connection, R-454B Refrigerant, 73.7 dBA Sound Level, 3/4 in Connection, 3/8 in Liquid Line, 7/8 in Suction Line, 20 x 22 in Filter, 5.99 sq-ft Coverage Area, 3 Speed, PSC Motor, Aluminum, 54-1/2 in H x 22 in W x 24 in D
- Pairs with the BOVA15 outdoor condensing unit
- Aluminum coils for superior corrosion resistance
- Reliable PSC fixed-speed fan motor
- The A2L refrigerant, R-454B, meets low-global warming potential (Low-GWP) requirements
