| Amperage Rating | : | 2.6 A |
| Configuration | : | Vertical |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Cooling Capacity | : | 24000 Btu/hr |
| Coverage Area | : | 4.02 sq-ft |
| Dimensions | : | 46-1/2 in H x 19-5/8 in W x 21-5/8 in D |
| Filter Size | : | 18 x 20 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Heating Capacity | : | 24000 Btu/hr |
| Liquid Line Size | : | 3/8 in |
| Material | : | Aluminum |
| Motor Type | : | ECM |
| Nominal Capacity | : | 2 ton |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 20 |
| Series | : | A, Premium Series |
| Sound Level | : | 55.8 to 66.9 dBA |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |

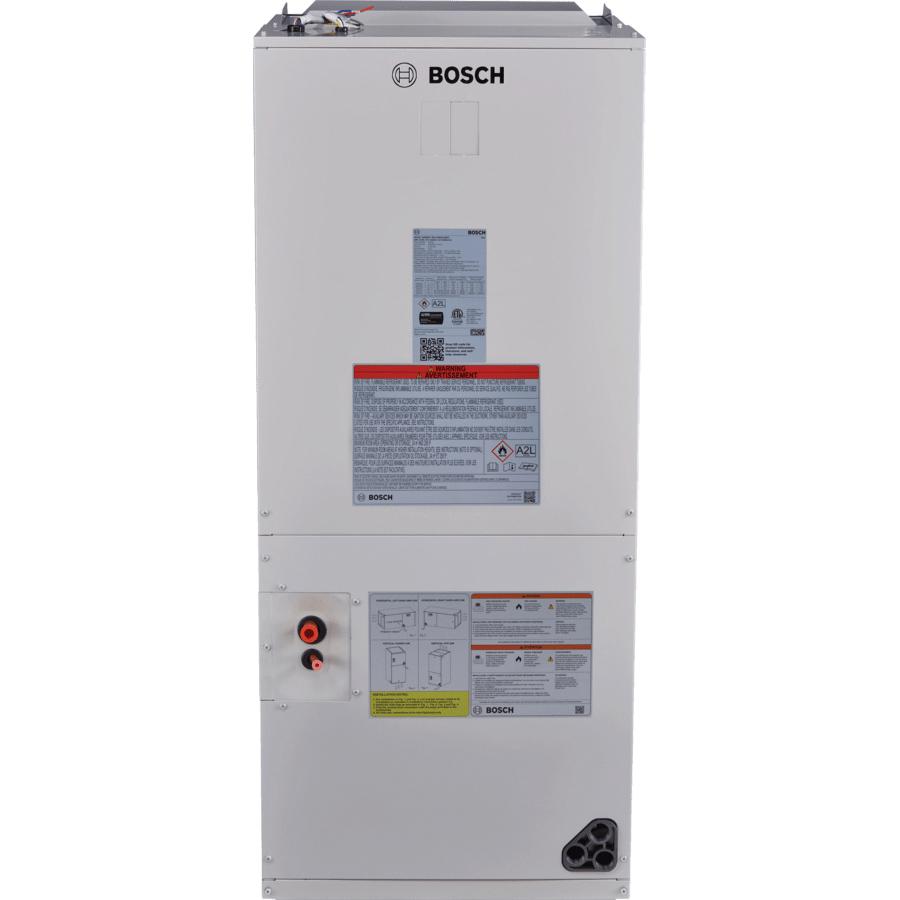

Complete your IDS Plus (R-454B version) or IDS Premium Connected (R-454B version) with this highly efficient and easy-to-install AHU from Bosch.
BOSCH Air Handler Unit, A, Premium Series, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 24000 Btu/hr Heating, 208/230 V, 2.6 A, 1/3 hp, 60 Hz, 1 ph Phase, Vertical, 20 SEER, FNPT Connection, R-454B Refrigerant, 55.8 to 66.9 dBA Sound Level, 3/4 in Connection, 3/8 in Liquid Line, 3/4 in Suction Line, 18 x 20 in Filter, 2 Stages, 4.02 sq-ft Coverage Area, ECM Motor, Aluminum, 46-1/2 in H x 19-5/8 in W x 21-5/8 in D
- Pairs with the BOVA15 outdoor condensing unit for IDS Plus (up to 18 SEER2) or the BOVA20 for IDS Premium Connected (up to 20 SEER2)

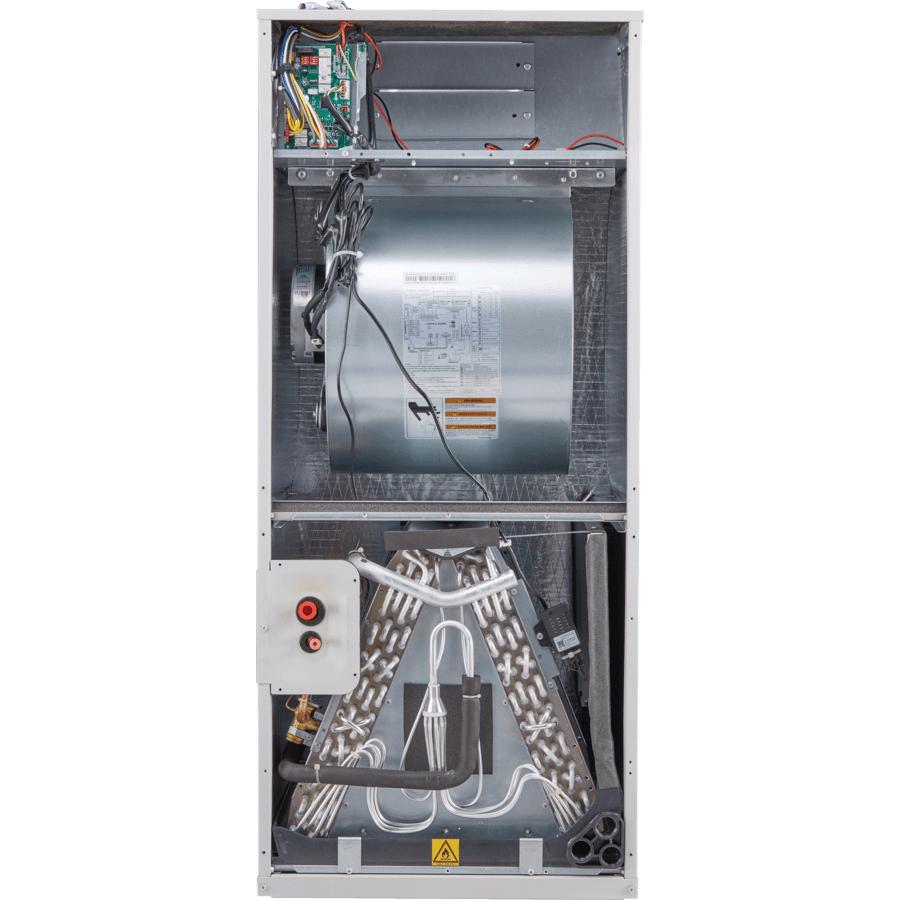

- Aluminum coils for superior corrosion resistance
- Standard ECM Constant Torque Fan Motor with 5 available speeds
- The A2L refrigerant, R-454B, meets low-global warming potential (Low-GWP) requirements
