| AFUE Rating | : | 96 % |
| Amperage Rating | : | 10.5 A |
| Blower Size | : | 12-6/8 in Dia |
| CFM Rating | : | 2095 cfm |
| Cabinet Dimensions | : | 33-3/4 in H x 24-1/2 in W x 28-3/4 in D |
| Configuration | : | Horizontal, Up Flow |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Finish | : | Galvanized/Painted |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, Propane |
| HP Rating | : | 1 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 100000 Btu/hr |
| Material | : | Steel |
| Motor Type | : | ECM |
| Number of Burners | : | 5 |
| Number of Speeds | : | 5 |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Rotational Speed | : | 1050 rpm |
| Series | : | BGH96 Series |
| Temperature Rise | : | 35 to 65 deg F |
| Tonnage | : | 5 ton |
| Vent Size | : | 2 in |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115 V |

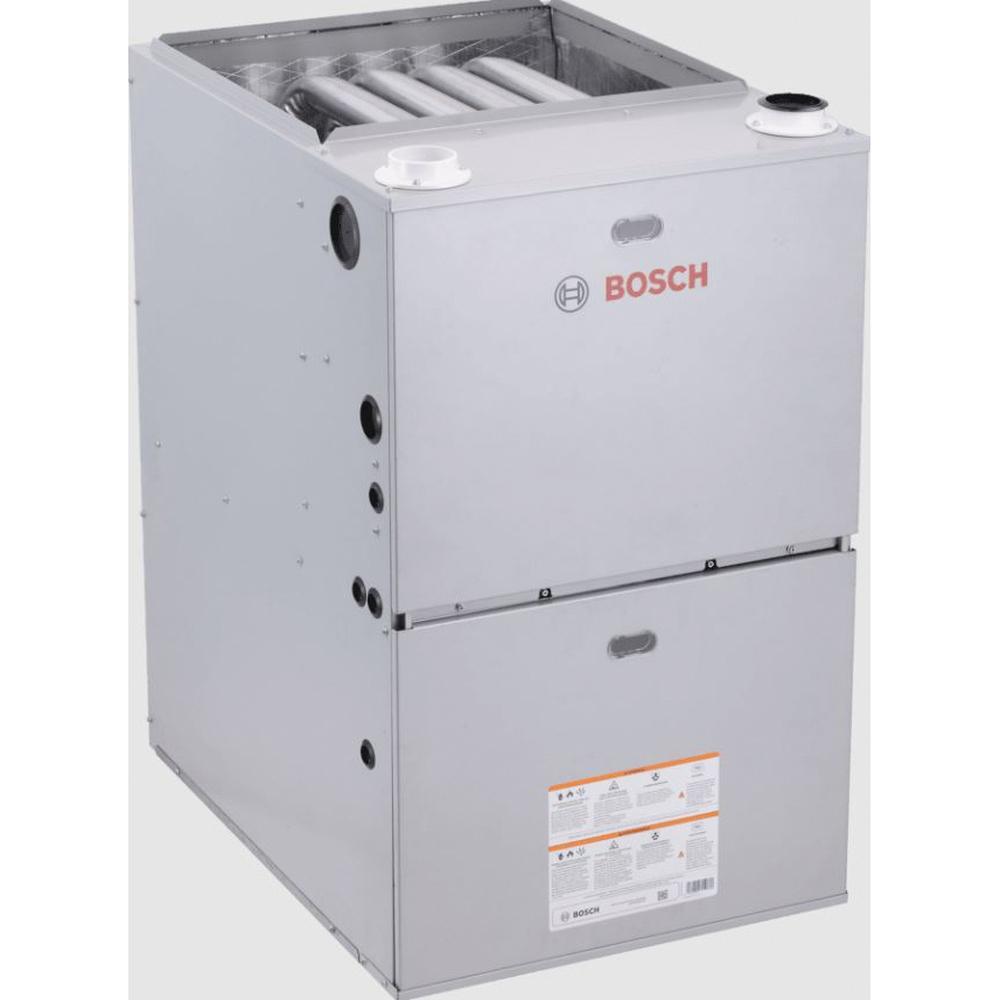

BOSCH Gas Furnace, BGH96 Series, Input BTU Rating: 100000 Btu/hr, 115 V, 10.5 A, 2095 cfm, 1 hp, 96 % AFUE Rating, 1 ph Phase, 60 Hz, 2 Stages, Horizontal, Up Flow, NPT Connection, 1/2 in Connection, Natural Gas, Propane Fuel, 5 Burners, 5 Speed, Blower Size: 12-6/8 in Dia, 33-3/4 in H x 24-1/2 in W x 28-3/4 in D Cabinet, ECM Motor, 1050 rpm Rotational Speed, Vent, Ducted or Ductless: Vent, 2 in Vent, Tonnage: 5 ton, Hot Surface Ignition System, Steel, Finish: Galvanized/Painted, 35 to 65 deg F Temperature Rise
- Up to 96% AFUE heating efficiency
- Easily integrate with Bosch IDS Heat Pump units for high efficiency heating and cooling
- Multipoise design allows for easy replacement of existing equipment or new installs
- The BGH96 Furnace's two-stage gas valve switches between high and low fire settings to meet load demands, allowing for more efficient operation than single stage technology
- This means enhanced comfort and energy savings for homeowners by converting up to 96% of the fuel purchased for heating
- Complete your home HVAC system by integrating the Bosch BGH96 Furnace with Bosch's IDS Outdoor Unit (BOVA) and Cased Coil (BMAC)
- Pairing with the Bosch IDS Heat Pump allows for heat pump system operation of up to 18 SEER. Installing a Bosch matched dual fuel system is the best choice to optimize savings, comfort, and efficiency
