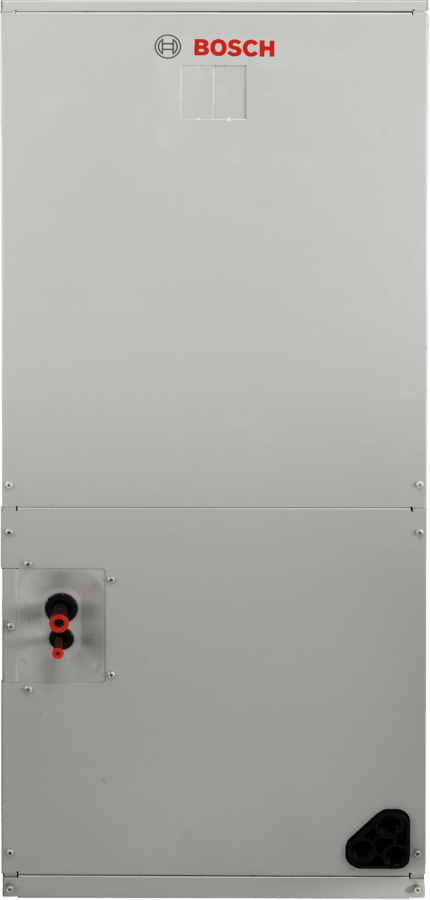

Bosch IDS 2.0 BVA BVA-48WN1-M20 Air Handler, 4 Tons Nominal Capacity, R-410A, ≤20.5 SEER, Multi-Position (Upflow/Downflow/Horizontal Left/Right) Configuration, 1,530 CFM, 1,150 CFM, 20" x 22" Filter Size, ECM (Two Stage)

Amperage Rating	:	6 A
BTU Rating	:	47,500 BTU/hr (Cooling)
CFM Rating	:	1,530 CFM, 1,150 CFM
Configuration	:	Multi-Position (Upflow/Downflow/Horizontal Left/Right)
Connection Size	:	3/8" (Liquid), 3/4" (Suction), 3/4" (Drain)
Connection Type	:	Sweat/Braze
Cooling Capacity	:	47,500 BTU/hr
Dimensions	:	54-1/2" H x 22" W x 24" D
Domestic/Import	:	Domestic
EER Rating	:	13.5 EER (Paired With BOVA-60HDN1-M20G)
Filter Size	:	20" x 22"
Finish	:	Painted Galvanized Steel
Flow Rate	:	1,530/1,150 CFM
Frequency Rating	:	60 Hz
Fuse Rating	:	15 A
HP Rating	:	3/4 HP
Heating Capacity	:	14.07 kW (High), 11.72 kW (Low)
Liquid Line Size	:	3/8 "
Material	:	Galvanized Steel (Cabinet), Aluminum (Coil)
Model	:	BVA-48WN1-M20
Motor Type	:	ECM (Two Stage)
Mounting Type	:	Multi-Position
Nominal Capacity	:	4 Tons
Number of Stages	:	2 (Blower)
Phase	:	1
Refrigerant Type	:	R-410A
SEER Rating	:	20.5 SEER
Series	:	IDS 2.0 BVA
Suction Line Size	:	7/8 "
Voltage Rating	:	208/230 V

Bosch Air Handler, Model: IDS 2.0 BVA, 4 Tons Nominal Capacity, R-410A, ≤20.5 SEER, Multi-Position (Upflow/Downflow/Horizontal Left/Right) Configuration, 1,530 CFM, 1,150 CFM, 20" x 22" Filter Size, ECM (Two Stage), 3/4 HP, 2 (Blower) Stages, Galvanized Steel (Cabinet), Aluminum (Coil), 54-1/2" H x 22" W x 24" D, Sweat/Braze Connection Type, 3/8" (Liquid), 3/4" (Suction), 3/4" (Drain) Connection Size, 7/8" Suction Line Size, 208/230 V, 1 Phase, 47,500 BTU/hr Cooling Capacity, 13.5 EER (Paired With BOVA-60HDN1-M20G), 14.07 kW (High), 11.72 kW (Low) Heating Capacity, Domestic, 60 Hz, 15 A Fuse Rating, 6 A, Painted Galvanized Steel

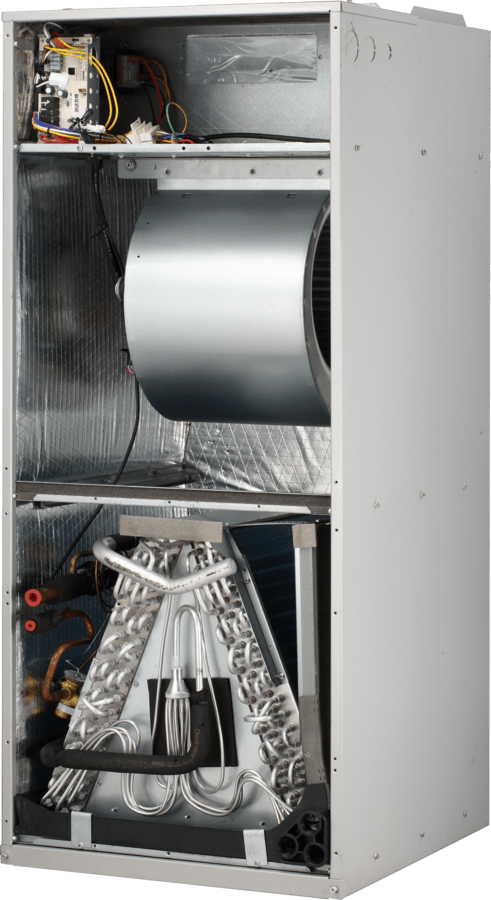

Features a durable all-aluminum A-coil for superior corrosion resistance and efficient heat transfer.Equipped with a two-stage X13 ECM blower motor for enhanced comfort, humidity control, and energy savings.Multi-position design allows for upflow, downflow, horizontal left, or horizontal right installation.Control board is protected from airstream humidity in a dedicated compartment.Includes integrated corrosion-resistant composite drain pans suitable for vertical and horizontal applications.Compatible with select Bosch furnaces and the Bosch Connected Control (BCC) Thermostat family.Covered by a 10-year Residential Limited Warranty (registration required).
