Bosch IDS 2.0 BVA BVA-36WN1-M20 Air Handler, 3 Tons Nominal Capacity, R-410A, ≤20.5 SEER, Multi-Position (Upflow/Downflow/Horizontal Left/Right) Configuration, Multi-Position, 1,150 CFM, 820 CFM, 18" x 20" x 1" Filter Size

Amperage Rating	:	4.1 A
BTU Rating	:	36,000 BTU/hr
CFM Rating	:	1,150 CFM, 820 CFM
Configuration	:	Multi-Position (Upflow/Downflow/Horizontal Left/Right)
Connection Size	:	3/8" (Liquid), 3/4" (Suction), 3/4" (Drain)
Connection Type	:	Sweat/Braze
Cooling Capacity	:	34,600 BTU/hr
Dimensions	:	46-1/2" H x 19-5/8" W x 21-5/8" D
Domestic/Import	:	Domestic
EER Rating	:	12.5 EER (Paired With BOVA-36HDN1-M20G)
Filter Size	:	18" x 20" x 1"
Finish	:	Painted Galvanized Steel
Flow Rate	:	1,150/820 CFM
Frequency Rating	:	60 Hz
Fuse Rating	:	15 A
HP Rating	:	1/2 HP
Heating Capacity	:	5-20 kW (Field Installed Electric Heat Kits)
Liquid Line Size	:	3/8 "
Material	:	Galvanized Steel (Cabinet), Aluminum (Coil)
Model	:	BVA-36WN1-M20
Motor Type	:	ECM (Two Stage)
Mounting Type	:	Multi-Position
Nominal Capacity	:	3 Tons
Number of Stages	:	2 (Blower)
Phase	:	1
Refrigerant Type	:	R-410A
SEER Rating	:	20.5 SEER
Series	:	IDS 2.0 BVA
Sound Level	:	58 to 65 dBA
Suction Line Size	:	3/4 "
Temperature Rating	:	-4 to 125 deg F
Voltage Rating	:	208/230 V

Bosch Air Handler, Model: IDS 2.0 BVA, 3 Tons Nominal Capacity, R-410A, ≤20.5 SEER, Multi-Position (Upflow/Downflow/Horizontal Left/Right) Configuration, Multi-Position, 1,150 CFM, 820 CFM, 18" x 20" x 1" Filter Size, ECM (Two Stage), 1/2 HP, 2 (Blower) Stages, Galvanized Steel (Cabinet), Aluminum (Coil), 46-1/2" H x 19-5/8" W x 21-5/8" D, Sweat/Braze Connection Type, 3/8" (Liquid), 3/4" (Suction), 3/4" (Drain) Connection Size, 208/230 V, 1 Phase, 34,600 BTU/hr Cooling Capacity, 36,000 BTU/hr, 12.5 EER (Paired With BOVA-36HDN1-M20G), 5-20 kW (Field Installed Electric Heat Kits) Heating Capacity, Domestic, 60 Hz, 15 A Fuse Rating, 4.1 A, Painted Galvanized Steel

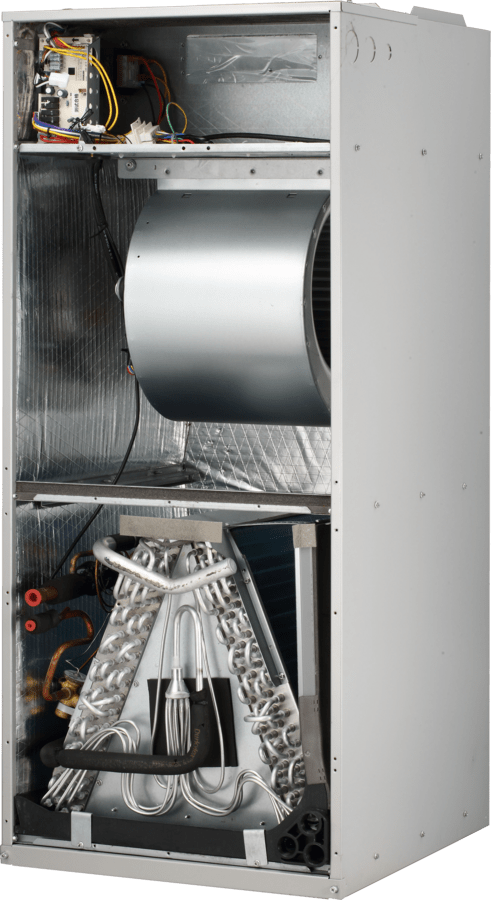

Multi-position design allows for upflow, downflow, horizontal left, or horizontal right installation.Features a two-stage ECM blower motor for enhanced comfort, humidity control, and energy efficiency.Includes a durable, corrosion-resistant all-aluminum A-coil for efficient heat transfer.Painted galvanized steel cabinet with foil-faced insulation ensures durability and minimizes energy loss.Accommodates field-installed electric heat kits (5-20 kW) for supplemental heating needs.Compatible with most 24 VAC heat pump thermostats, including the Bosch BCC family.Covered by a 10-year residential limited warranty (registration and conditions may apply).
