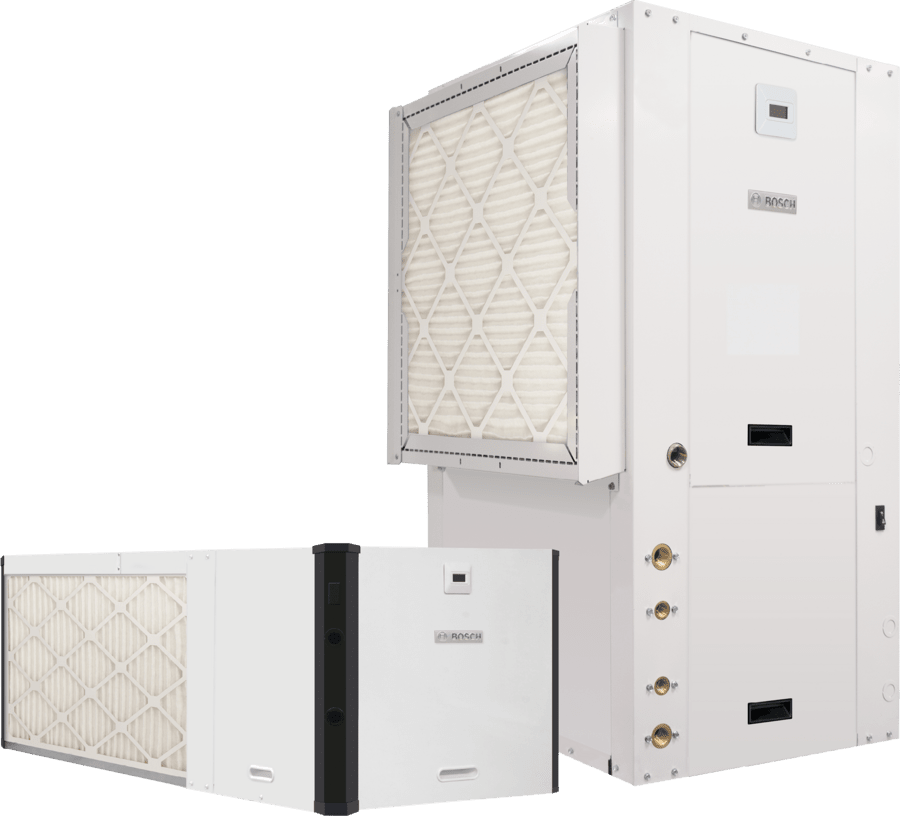

Bosch Greensource SM Rev A/B SM036-1VTN-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 3 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 19.0 EER (WLHP), 28.0 EER (GWHP), 22.0 EER (GLHP), FPT, Swivel Connection, 1-Phase

Amperage Rating	:	6.8 A (FLA, Fan), 15.6 A (RLA, Compressor), 26.3 A (MCA)
BTU Cooling Rating	:	36,000 Btu/hr
BTU Rating	:	36,000 BTU/hr
Blower Size	:	11" Diam x 11" W
CFM Rating	:	1,200 CFM
Coil Rating	:	3 Tons
Color	:	White
Compressor Stages	:	Two Stage
Compressor Type	:	Scroll
Configuration	:	Vertical, Upflow, Left Hand
Connection Type	:	FPT, Swivel
Dimensions	:	52-3/5" H x 25-4/5" W x 33-2/5" D
Domestic/Import	:	Domestic
Drive Type	:	ECM Constant Airflow
EER Rating	:	19.0 EER (WLHP), 28.0 EER (GWHP), 22.0 EER (GLHP)
Filter Size	:	16" x 30" x 2" (2)
Finish	:	White Pre-Painted
Frequency Rating	:	60 Hz
Fuse Rating	:	40 A
HP Rating	:	3/4 HP (Fan Motor)
Liquid Line (OD)	:	3/8 in
Material	:	Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan)
Model Number	:	7-735
Model	:	SM036-1VTN-FLTADB-XMGXXXXXD7XXXX4XXXXSBA
Mounting Type	:	Vertical Upflow
Number of Stages	:	2
Phase	:	1
Pressure Rating	:	464.7 PSI (Max Water Working)
Refrigerant Type	:	R-410A
Series	:	Greensource SM Rev A/B
Sound Level	:	52 dBA
Tonnage	:	3 tons
Voltage Rating	:	208/230 V
Volts	:	208/230 V

Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 3 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 19.0 EER (WLHP), 28.0 EER (GWHP), 22.0 EER (GLHP), FPT, Swivel Connection, 1-Phase, 52-3/5" H x 25-4/5" W x 33-2/5" D Dimensions, 1,200 CFM, ECM Constant Airflow, Scroll, 11" Diam x 11" W Blower Size, 3/4 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 16" x 30" x 2" (2) Filter Size, ≥52 dBA, 2 Stage, 6.8 A (FLA, Fan), 15.6 A (RLA, Compressor), 26.3 A (MCA), Domestic, 464.7 PSI (Max Water Working), 60 Hz, 40 A Fuse Rating, White, White Pre-Painted

Features a high-efficiency, two-stage scroll compressor for enhanced comfort and reduced operating costs.Equipped with a variable-speed ECM constant airflow motor for consistent temperature and humidity control.Includes a durable Cupro-Nickel (CuNi) coaxial heat exchanger suitable for various water conditions.Features a built-in desuperheater for supplemental domestic water heating.Designed for quiet operation with sound levels as low as 52 dBA.Vertical upflow configuration with left-hand return air and top supply.ENERGY STAR certified for ground water and ground loop applications.
