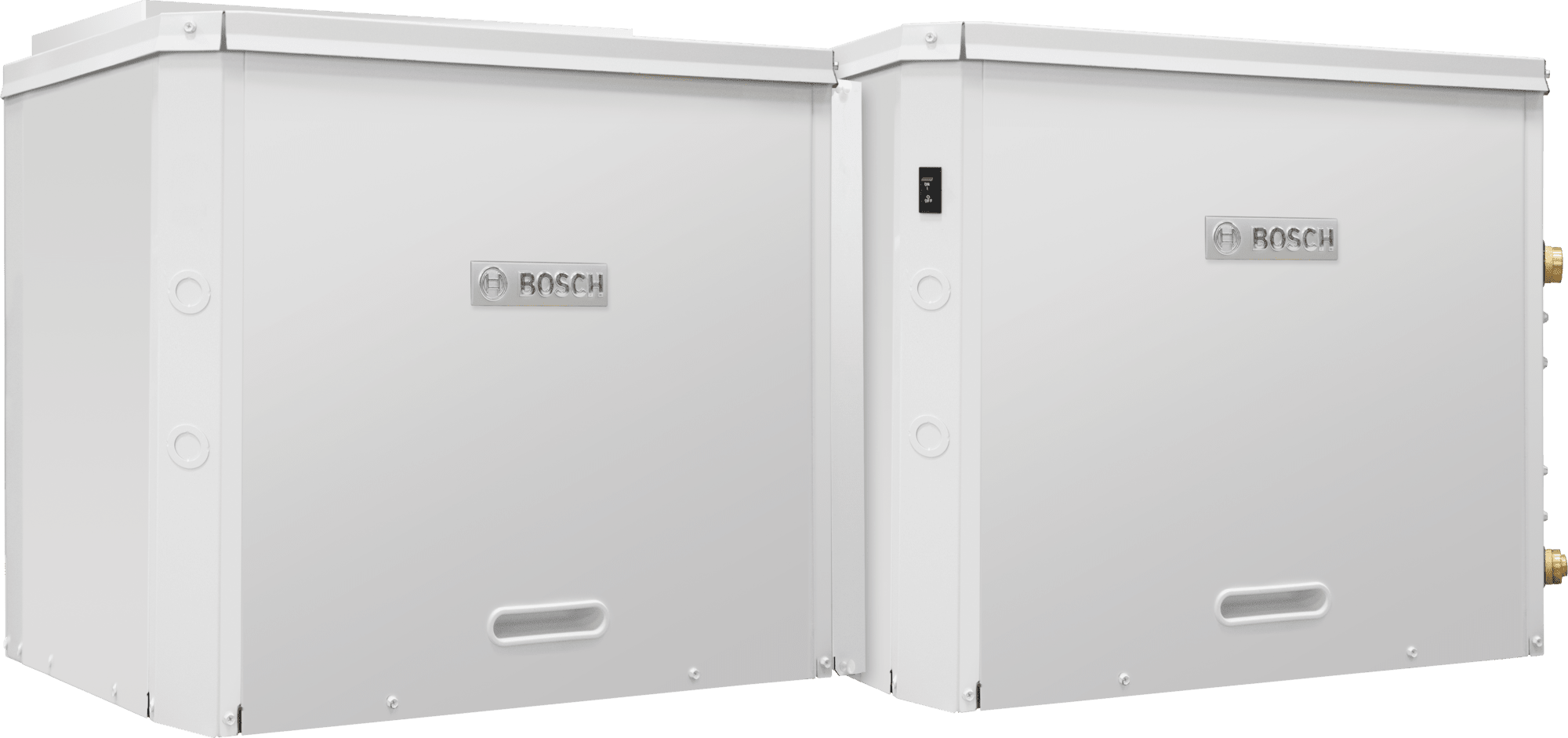

Bosch Greensource CDi Series SM Split SM060-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA Condensing Unit, 5 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.10-27.00 EER, 1,700 CFM, 60,000 BTU/hr (Nominal)

Amperage Rating	:	27.1 A (RLA), 33.9 A (MCA)
BTU Cooling Rating	:	60,000 Btu/hr
BTU Rating	:	60,000 BTU/hr
CFM Rating	:	1,700 CFM
Color	:	White
Compressor Type	:	Two-Stage Scroll
Configuration	:	Split System, Condensing Unit
Connection Type	:	FPT (Water)
Dehumidification	:	Active Supported, Passive Supported
Dimensions	:	23-3/10" H x 33-2/5" W x 27" D
Domestic/Import	:	Domestic
EER Rating	:	16.10-27.00 EER
Finish	:	Pre-Painted
Frequency Rating	:	60 Hz
Fuse Rating	:	60 A
Liquid Line (OD)	:	3/8 in
Liquid Line Size	:	3/8 "
Material	:	Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil)
Model Number	:	7-735
Model	:	SM060-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA
Mounting Type	:	Floor Mount (Requires Support)
Number of Stages	:	2
Phase	:	1
Refrigerant Type	:	R-410A
Series	:	Greensource CDi Series SM Split
Sound Level	:	52 dBA
Suction Line Size	:	1-1/8 "
Temperature Rating	:	20-80 °F (Entering Fluid, Heating), 50-110 °F (Entering Fluid, Cooling)
Tonnage	:	5 tons
Voltage Rating	:	208/230 V
Volts	:	208/230 V

Bosch Condensing Unit, Model: Greensource CDi Series SM Split, 5 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.10-27.00 EER, 1,700 CFM, 60,000 BTU/hr (Nominal), FPT (Water), 3/8" Liquid Line Size, 1-1/8" Suction Line Size, 1 Phase, Two-Stage Scroll, Active Supported, Passive Supported Dehumidification, Split System, Condensing Unit, Floor Mount (Requires Support), ≥52 dBA, Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil), 23-3/10" H x 33-2/5" W x 27" D Dimensions, White, Pre-Painted, Domestic Origin, 60 Hz, 60 A Fuse Rating, 27.1 A (RLA), 33.9 A (MCA) Amperage Rating, 20-80 °F (Entering Fluid, Heating), 50-110 °F (Entering Fluid, Cooling)

Features a high-efficiency two-stage scroll compressor for enhanced comfort control.Versatile and compact design suitable for replacement, relocation, or new construction projects.Achieves high energy efficiency with EER ratings up to 27.00.Utilizes environmentally friendly R-410A refrigerant.Engineered for quiet operation with sound levels as low as 52 dB using closed-cell foam insulation.Supports active and passive dehumidification modes for improved indoor air quality.Includes an electronic circuit board with multiple protection features and alert capabilities.Covered by a 10-year limited parts and labor warranty.
