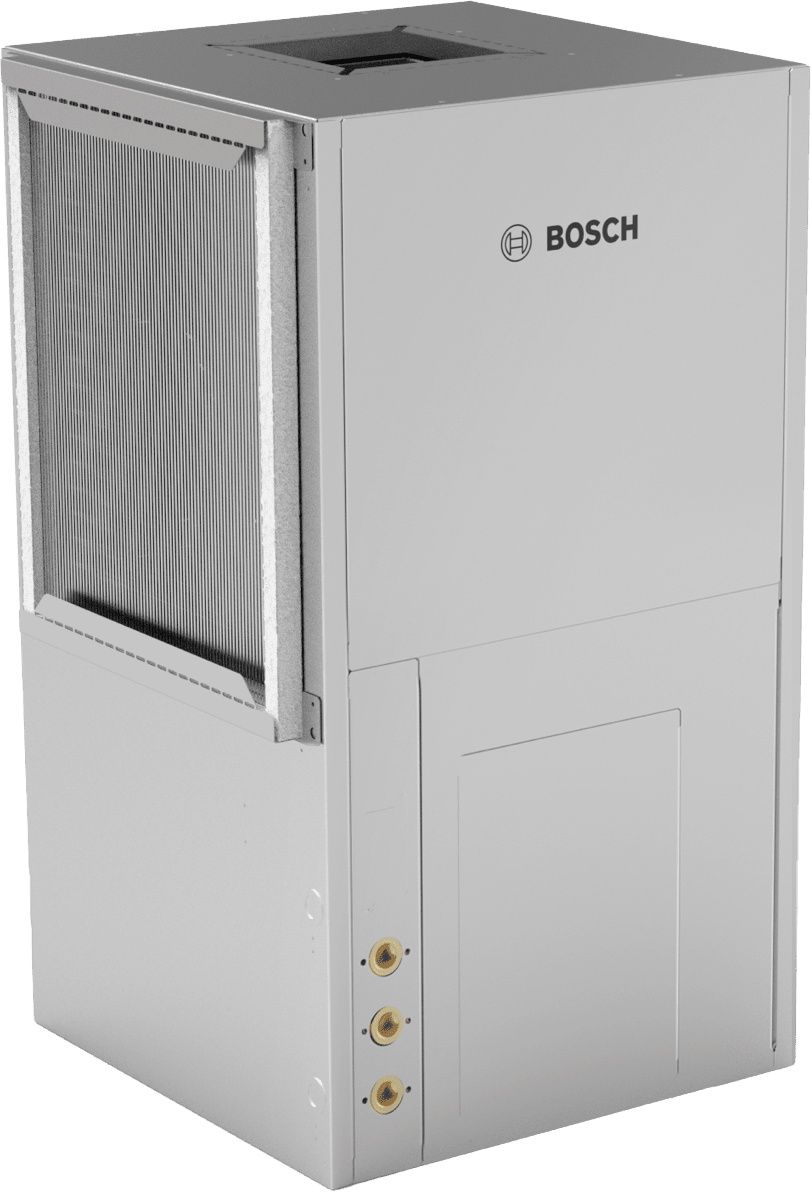

Bosch RF Series RF048-1HZN-LREADA-XGGXXXXXX7XXXX4XXXXSBA Water Source Heat Pump, 4 Tons, R-454B, Horizontal, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase

Amperage Rating	:	26.7 A (FLA), 31.3 A (MCA)
BTU Rating	:	48,000 BTU/hr
Blower Size	:	10" Diam x 8" W
CFM Rating	:	1,600 CFM
Coil Rating	:	4 Tons
Compressor Type	:	Scroll
Configuration	:	Horizontal
Connection Type	:	3/4" FPT
Dimensions	:	21" H x 24" W x 54" D
Drive Type	:	ECM Constant Airflow
EER Rating	:	15.0-21.0 EER
Filter Size	:	30" H x 24" L
Finish	:	Painted
Flow Rate	:	12.0 GPM
Frequency Rating	:	60 Hz
Fuse Rating	:	45 A (Single Point)
HP Rating	:	3/4 HP
Material	:	Galvanized Steel
Model	:	RF048-1HZN-LREADA-XGGXXXXXX7XXXX4XXXXSBA
Mounting Type	:	Horizontal
Phase	:	1
Pressure Rating	:	414.7 PSI (Max Water Working Pressure)
Refrigerant Type	:	R-454B
Series	:	RF Series
Temperature Rating	:	45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating)
Tonnage	:	4 tons
Voltage Rating	:	208/230 V

Bosch Water Source Heat Pump, Model: RF Series, 4 Tons, R-454B, Horizontal, 208/230 V, 15.0-21.0 EER, 3/4" FPT Connection, 1-Phase, 21" H x 24" W x 54" D Dimensions, 1,600 CFM, 12.0 GPM, ECM Constant Airflow, Scroll, 10" Diam x 8" W Blower Size, 3/4 HP, Galvanized Steel, 30" H x 24" L Filter Size, 48,000 BTU/hr, 26.7 A (FLA), 31.3 A (MCA), 414.7 PSI (Max Water Working Pressure), 45-110 °F (Entering Water, Cooling), 20-80 °F (Entering Water, Heating), 60 Hz, 45 A (Single Point) Fuse Rating, Painted

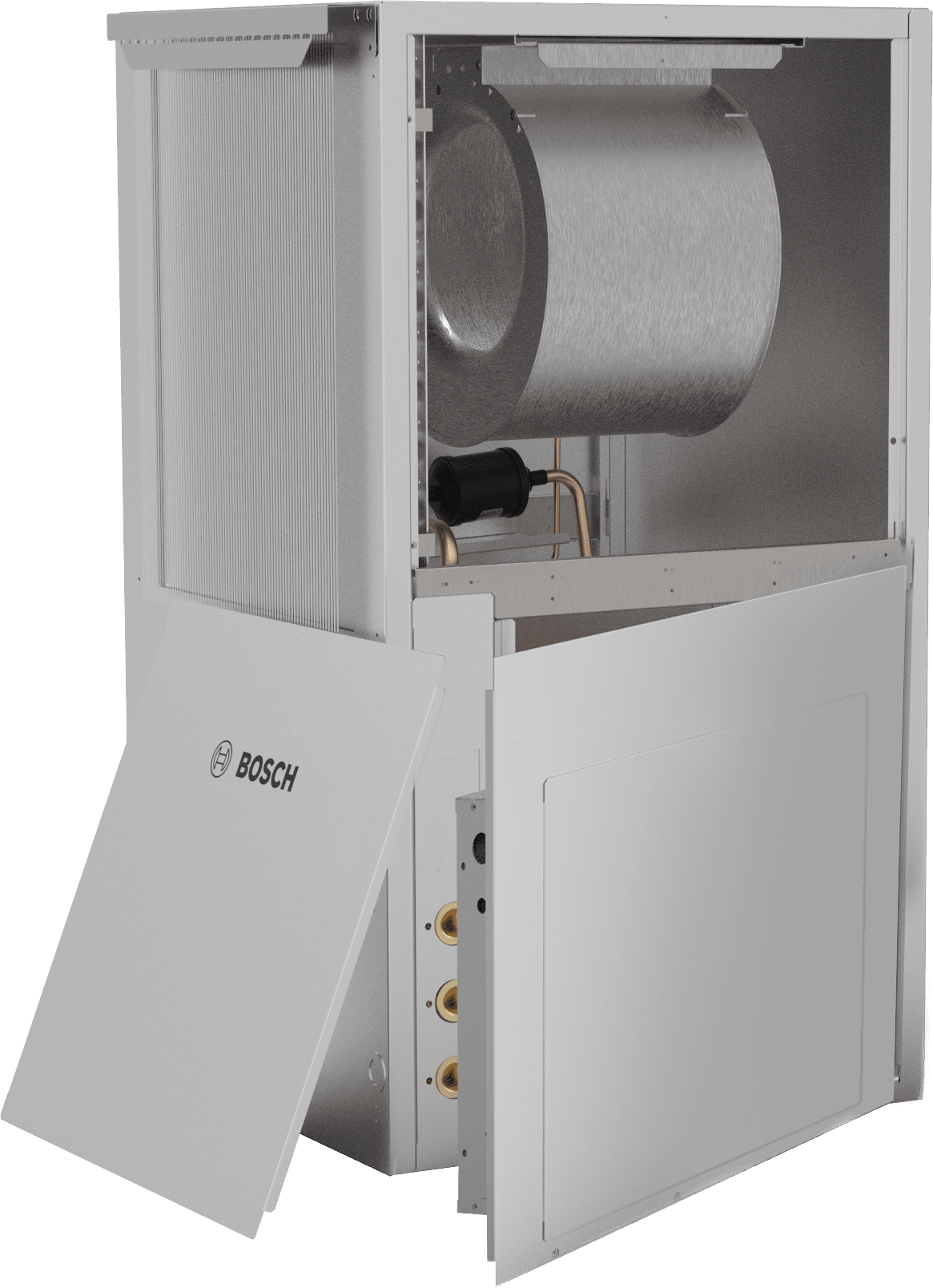

Utilizes R-454B, an A2L refrigerant meeting low-global warming potential (Low-GWP) requirements.Features enhanced serviceability with a swinging electrical box and improved air coil access.ENERGY STAR rated for efficient operation.Constructed from heavy-gauge galvanized steel with a painted finish for durability.Operates on 208/230V, 1-phase, 60 Hz power.Accommodates a standard 20" x 34" filter.Includes a 10-year limited warranty on the compressor and parts.
