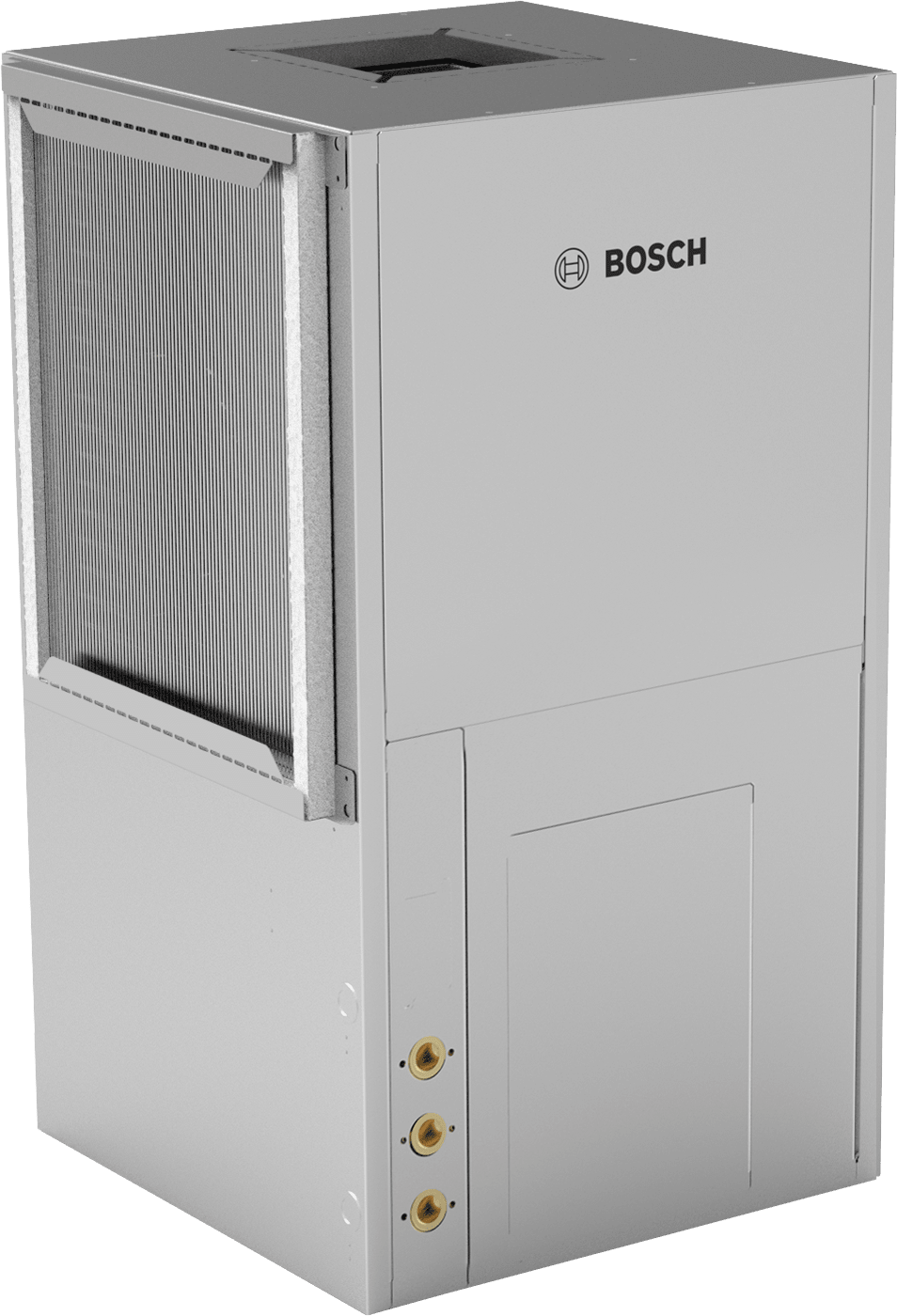

Bosch RL Series RL018-1VTN-LLTPDA-XAGXXXXXX7XXXX1XXXXSBA Water Source Heat Pump, 1.5 Tons, R-454B, Vertical, Upflow, 208/230 V, 13.84 EER (WLHP), 19.5 EER (GWHP), 14.44 EER (GLHP), 3/4" FPT Connection, 1-Phase

Amperage Rating	:	8.4 A (FLA), 10.2 A (MCA)
BTU Rating	:	18,000 BTU/hr (Cooling, WLHP), 20,050 BTU/hr (Cooling, GWHP), 18,400 BTU/hr (Cooling, GLHP), 21,850 BTU/hr (Heating, WLHP), 17,450 BTU/hr (Heating, GWHP), 13,900 BTU/hr (Heating, GLHP)
Blower Size	:	9" Diam x 7" W
CFM Rating	:	600 CFM
Compressor Type	:	Rotary
Configuration	:	Vertical, Upflow
Connection Type	:	3/4" FPT
Dimensions	:	33" H x 21-1/2" W x 21-1/2" D
Drive Type	:	Direct Drive (PSC Fan Motor)
EER Rating	:	13.84 EER (WLHP), 19.5 EER (GWHP), 14.44 EER (GLHP)
Filter Size	:	19" x 17"
Finish	:	Galvanized
Flow Rate	:	4.5 GPM
Frequency Rating	:	60 Hz
Fuse Rating	:	15 A
HP Rating	:	1/6 HP (Blower Motor)
Material	:	Galvanized Steel
Model	:	RL018-1VTN-LLTPDA-XAGXXXXXX7XXXX1XXXXSBA
Mounting Type	:	Vertical
Number of Stages	:	1
Phase	:	1
Pressure Rating	:	400 PSI (Standard Unit), 300 PSI (With Factory Installed Water Valve Option)
Refrigerant Type	:	R-454B
Series	:	RL Series
Temperature Rating	:	50-100 °F (Cooling, Ambient Air), 45-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water)
Tonnage	:	1.5 tons
Voltage Rating	:	208/230 V

Bosch Water Source Heat Pump, Model: RL Series, 1.5 Tons, R-454B, Vertical, Upflow, 208/230 V, 13.84 EER (WLHP), 19.5 EER (GWHP), 14.44 EER (GLHP), 3/4" FPT Connection, 1-Phase, 33" H x 21-1/2" W x 21-1/2" D Dimensions, 600 CFM, 4.5 GPM, Direct Drive (PSC Fan Motor), Rotary, 9" Diam x 7" W Blower Size, 1/6 HP (Blower Motor), Galvanized Steel, Vertical, 19" x 17" Filter Size, 1 Stage, 18,000 BTU/hr (Cooling, WLHP), 20,050 BTU/hr (Cooling, GWHP), 18,400 BTU/hr (Cooling, GLHP), 21,850 BTU/hr (Heating, WLHP), 17,450 BTU/hr (Heating, GWHP), 13,900 BTU/hr (Heating, GLHP), 8.4 A (FLA), 10.2 A (MCA), 400 PSI (Standard Unit), 300 PSI (With Factory Installed Water Valve Option), 50-100 °F (Cooling, Ambient Air), 45-110 °F (Cooling, Entering Water), 40-85 °F (Heating, Ambient Air), 20-80 °F (Heating, Entering Water), 60 Hz, 15 A Fuse Rating, Galvanized

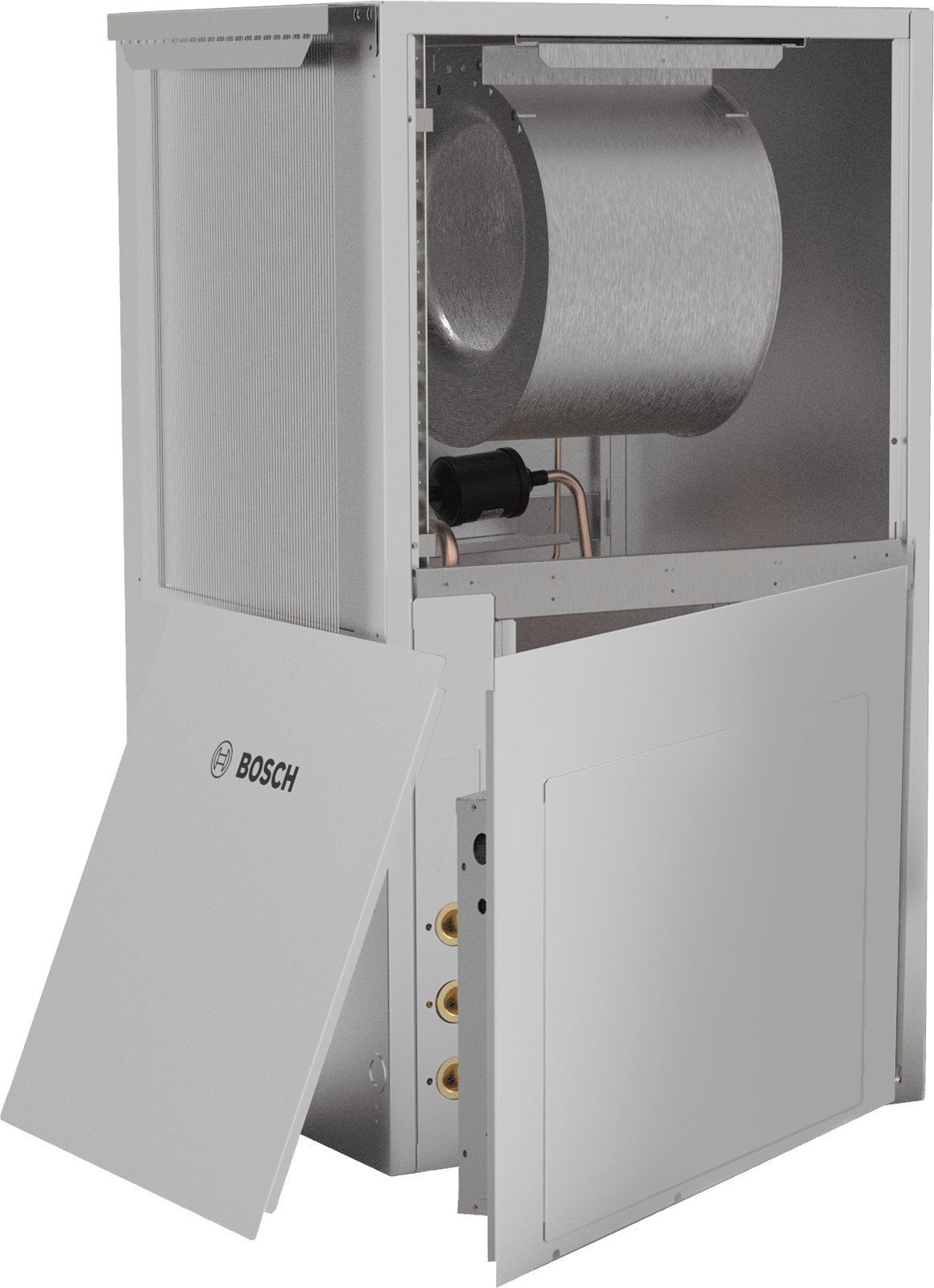

Uses low-GWP R-454B refrigerant, meeting current AIM Act requirements.Designed for easier service access with a swinging electrical box and slide-out blower.Features double isolation compressor mounting for exceptionally quiet operation.Constructed with a heavy-gauge galvanized steel cabinet for durability.Single-stage rotary compressor provides reliable performance.Vertical upflow configuration with 1.5-ton capacity and 600 CFM airflow.Achieves high efficiency with EER ratings up to 19.5 (GWHP).Covered by a Bosch limited warranty (requires registration, terms vary).
