| Dimensions | : | 7.05 in L x 4.35 in W x 8.75 in H |
| Electrical Connection | : | 3 ft, 18 ga Appliance Cable, 1/2 in Conduit Fitting |
| Enclosure Type | : | NEMA 2, IP54 |
| Frequency Rating | : | 50/60 Hz |
| Input Impedance | : | 100 kOhm |
| Noise Level | : | <=35 dBA |
| Temperature Rating | : | 32 to 122 deg F |
| Timing Range | : | 150 s |
| Voltage Rating | : | 24 VAC/VDC |

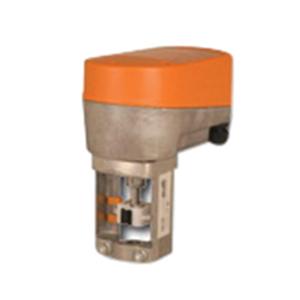

BELIMO® Globe Valve Actuator, 24 VAC/VDC, 50/60 Hz, 3 ft, 18 ga Appliance Cable, 1/2 in Conduit Fitting Electrical Connection, 150 s Timing, 100 kOhm Input, <=35 dBA Noise Level, NEMA 2, IP54 Enclosure, 32 to 122 deg F, 7.05 in L x 4.35 in W x 8.75 in H
- Functional safety the actuator is secured against short circuiting and incorrect polarity, the stroke is adapted automatically and is overload protected
- Manual operation when a 3/16 in or 5 mm hex is inserted and turned clockwise, the actuator plunger pushes out, the actuator plunger retains the position until the nominal voltage is applied
- Display of function the stroke is shown mechanically on the adaptor bracket and the maximum stroke is set automatically, under the housing cover on MFT models is a two-colored LED status display
- Multi-function technology an integrated microprocessor allows for a variety of parameters to be easily configured at the factory or in the field
- 7 VA class 2 power supply transformer sizing
- Electronic throughout stroke overload protection
- Stroke indicator on bracket position indication
- 3/16 in hex, 5 mm hex, phillips screwdriver manual override
- 1000 N closing and 800 N Inhibiting actuator force
