| Amperage Rating | : | 9.3 A |
| CFM Rating | : | 3100 cfm |
| Compressor Type | : | Single Stage |
| Control Type | : | Temperature |
| Cooling BTU Rating | : | 57000 Btu |
| Cooling Capacity | : | 57000 Btu |
| Dimensions | : | 92.88 in H x 42 in W x 25.52 in D |
| EER Rating | : | 11.4 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Material | : | Aluminum/Stainless Steel |
| Number of Speeds | : | 5 |
| Number of Stages | : | 1 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-454B |
| Series | : | WA Series |
| Voltage Rating | : | 460 VAC |

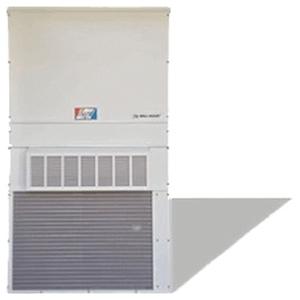

The Bard WA Series Wall-Mount Air Conditioner is an energy efficient self contained system that is designed to offer maximum indoor temperature control. Installed on an exterior wall surface, the WA Series provides cooling and heating without using valuable indoor floor space or outside ground space. This unit is the ideal product for versatile applications such as: modular buildings, light commercial, mobilebuildings, schools, mining, petro-chemical, telecom, industrial, energy storage, and data centers. Factory or field installed accessories are available to meet specific job requirements for your unique application.
Bard® Air Conditioner, WA Series, 57000 Btu Cooling Capacity, 57000 Btu Cooling, 460 VAC, 9.3 A, 3/4 hp, 60 Hz, 3 ph Phase, Single Stage Compressor, 3100 cfm, 11.4 EER Rating, 5 Speed, 1 Stages, R-454B Refrigerant, Temperature Control, Aluminum/Stainless Steel, 92.88 in H x 42 in W x 25.52 in D
- High Efficiency Rifled Copper Tubing
- Copeland scroll compressor
- Twin Blower Assembly
- ECM Indoor Blower Motor
- Phase Rotation Monitor
- High & Low Pressure Switches are Auto Reset
- Compressor Control Module
- Time Delay Relay
- Diagnostic Light
- Full-Length Mounting Brackets
- Slope Top / Rain Flashing
- Lockable Hinged Disconnect Door
- Liquid Line Filter Dryer
- Green Fin Hydrophilic Evaporator Coil
- Foilfaced Recycled Denim Insulation (no fiberglass)
- Aluminum Finned Copper Coils
- Galvanized 20 Gauge Zinc Coated Steel Cabinet
- Galvanized 16 Guage Zinc Coated Unit Base
- Up to 5 year limited parts warranty (restrictions apply)
- Front access control panel
