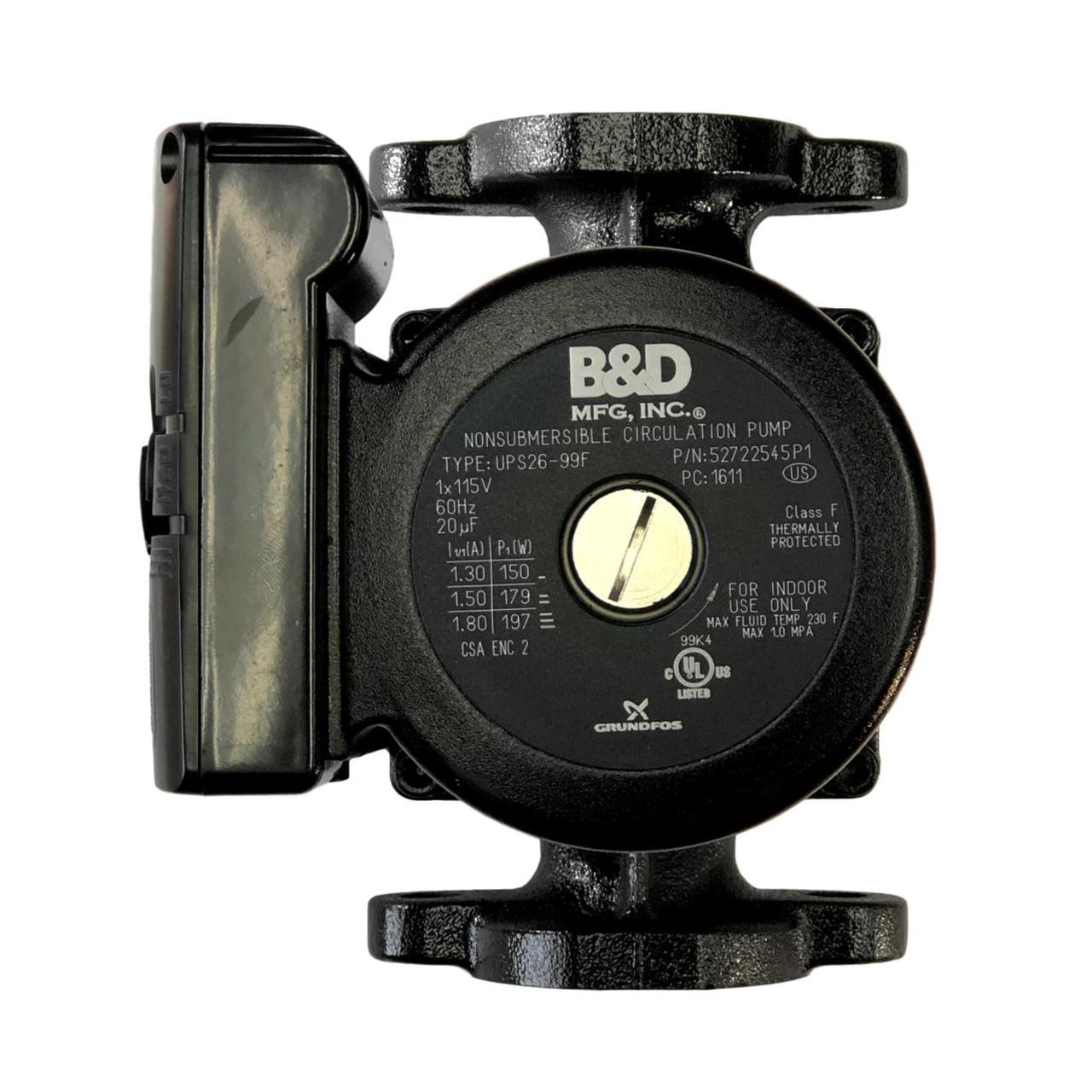

B&D Mfg 26-99 Grundfos UPS 26-99 Circulator Pump, 0-33 GPM, 29' Maximum Head, 1/6 HP, 115 V, 1 Phase, Flange Connection Type, GF 15/26 Flange Inlet Size

Amperage Rating	:	1.3 A (Speed 1); 1.5 A (Speed 2); 1.8 A (Speed 3)
Case Pressure	:	145 PSI
Connection Type	:	Flange
Dimensions	:	6" L x 6-1/2" H x 5-3/16" W
Flow Rate	:	0-33 GPM
Frequency Rating	:	60 Hz
HP Rating	:	1/6 HP
Inlet Size	:	GF 15/26 Flange
Material	:	Cast Iron
Maximum Head	:	29 '
Maximum Pressure	:	145 PSI
Model	:	Grundfos UPS 26-99
Mounting Type	:	In-Line Flanged
Number of Poles	:	2
Outlet Size	:	GF 15/26 Flange
Phase	:	1
Power Rating	:	150 W (Speed 1), 179 W (Speed 2), 197 W (Speed 3)
Series	:	26-99
Temperature Rating	:	36-230 °F
Voltage Rating	:	115 V

B&D Mfg Circulator Pump, Model: 26-99, 0-33 GPM, 29' Maximum Head, 1/6 HP, 115 V, 1 Phase, Flange Connection Type, GF 15/26 Flange Inlet Size, GF 15/26 Flange Outlet Size, In-Line Flanged, 145 PSI, 36-230 °F Temperature Rating, 2 Poles, Cast Iron, 150 W (Speed 1), 179 W (Speed 2), 197 W (Speed 3), 1.3 A (Speed 1); 1.5 A (Speed 2); 1.8 A (Speed 3), 60 Hz, 6" L x 6-1/2" H x 5-3/16" W Dimensions

Three speed settings provide operational flexibility for various heating applications.Durable cast iron construction ensures longevity in hydronic systems.Handles fluid temperatures from 36°F up to 230°F and pressures up to 145 PSI.Delivers a flow range of 0-33 GPM with a maximum head of 29 feet.Powered by a 1/6 HP, 115V single-phase, 2-pole motor.Features GF 15/26 flanged connections for installation.UL Listed for safety assurance.Compatible With: B&D HSS® Buffer Tank systems.
