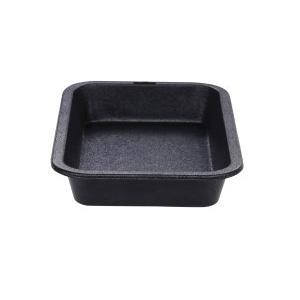

Asurity™ CP-PAN Ducted Drain Pan, 16-1/2 in L, 10.8 in W, 2-1/2 in D, Plastic, For Use With: Condensate Tank Pumps

Asurity™ CP-PAN Ducted Drain Pan, 16-1/2 in L, 10.8 in W, 2-1/2 in D, Plastic, For Use With: Condensate Tank Pumps

Brand: Asurity™
Part #: 98264
Customer Part #:
Depth      :      2-1/2 in
Dimensions      :      16.5 in H x 10.8 in D
Finish      :      Black
Length      :      16-1/2 in
Material      :      Plastic
Suitable For Use With      :      Condensate Tank Pumps
Width      :      10.8 in

The Asurity™ CP-PAN condensate pump pan provides extra redundancy needed in a condensate management system to prevent catastrophic water damage. While best practice is to place a condensate pump in the secondary drain pan, some situations occur where that is not possible. Now you don't have to compromise. The Asurity™ condensate pump pan is perfectly sized to fit most condensate pumps and is designed specifically with room for a safety overflow switch, such as Asurity™ CS-3, to help minimize the possibility of water damage due to condensate overflow.

Asurity™ Ducted Drain Pan, 16-1/2 in Length, 10.8 in Width, 2-1/2 in D, Plastic, Black, 16.5 in H x 10.8 in D, For Use With: Condensate Tank Pumps

  • Vacuum formed from non-toxic ABS plastic
  • Captures pump overflow for extra safety layer
  • Universal fit for most condensate tank pumps
  • Provides space for CS-3 safety switch to prevent system overflow
  • No seams, no rust and no leakage
