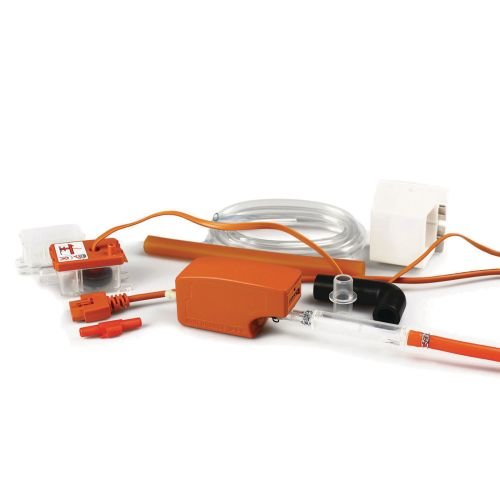

Aspen Manufacturing ASP-MO-UNI Mini Orange Condensate Pump Kit, 100-250 V, 33' Maximum Head, 174-192 GPM (0' Head), 49,500 BTU/hr, Barb Connection, 1/4" Connection Size, Remote Mount

Amperage Rating	:	0.17 A
BTU Rating	:	49,500 BTU/hr
Color	:	Orange
Connection Size	:	1/4 "
Connection Type	:	Barb
Contact Rating	:	3 A (NC, 230 VAC), 5 A (Inductive, 230 VAC)
Cord Size	:	6 '
Dimensions	:	4-1/4" L x 2" H x 1-1/2" W
Discharge Size	:	1/4 "
Enclosure Type	:	Potted
Flow Rate	:	174-192 GPM (0' Head)
Inlet Size	:	5/8 "
Maximum Head	:	33 '
Model	:	ASP-MO-UNI
Mounting Type	:	Remote Mount
Outlet Size	:	1/4 "
Power Rating	:	16 W
Shut-Off Head	:	33 '
Sound Level	:	26 dBA
Suction Lift	:	5 '
Suction Size	:	1/4 "
Suitable For Use With	:	Mini-Split Systems Or Ductless Systems
Temperature Rating	:	104 °F (Maximum)
Voltage Rating	:	100-250 V

Aspen Manufacturing Mini Orange Condensate Pump Kit, 100-250 V, 33' Maximum Head, 174-192 GPM (0' Head), 49,500 BTU/hr, Barb Connection, 1/4" Connection Size, Remote Mount, 5' Suction Lift, 104 °F (Maximum), 5/8" Inlet Size, 26 dBA, Potted Enclosure, 16 W, 0.17 A, 3 A (NC, 230 VAC), 5 A (Inductive, 230 VAC) Contact Rating, 4-1/4" L x 2" H x 1-1/2" W Dimensions, 6' Cord Size, Orange

Designed for flexible installation above false ceilings, inside lineset covers, or within mini-split evaporator units.Kit includes both inline and pan-mount reservoir options for versatility.Self-priming pump simplifies setup and ensures reliable condensate removal.Operates quietly at a sound level of 26 dBA.Features universal voltage compatibility from 100V to 250V.Fully potted electronics provide enhanced resistance to moisture, vibration, and shock.Equipped with a 3A normally closed safety switch rated at 5A inductive @ 230V AC.Suitable for mini-split and ductless air conditioning systems up to 49,500 BTU/hr.Provides a maximum head lift of 33 feet and a suction lift of 5 feet.
