| Amperage Rating | : | 50 A |
| Configuration | : | Down Flow |
| Dimensions | : | 33 in H x 19-3/4 in W x 25-1/4 in D |
| Finish | : | Painted |
| Fuse Rating | : | 60 A |
| Material | : | Steel |
| Motor Type | : | ECM |
| Phase | : | 1 ph |
| Power Rating | : | 10 kW |
| Series | : | AEN Series |
| Voltage Rating | : | 208/240 V |

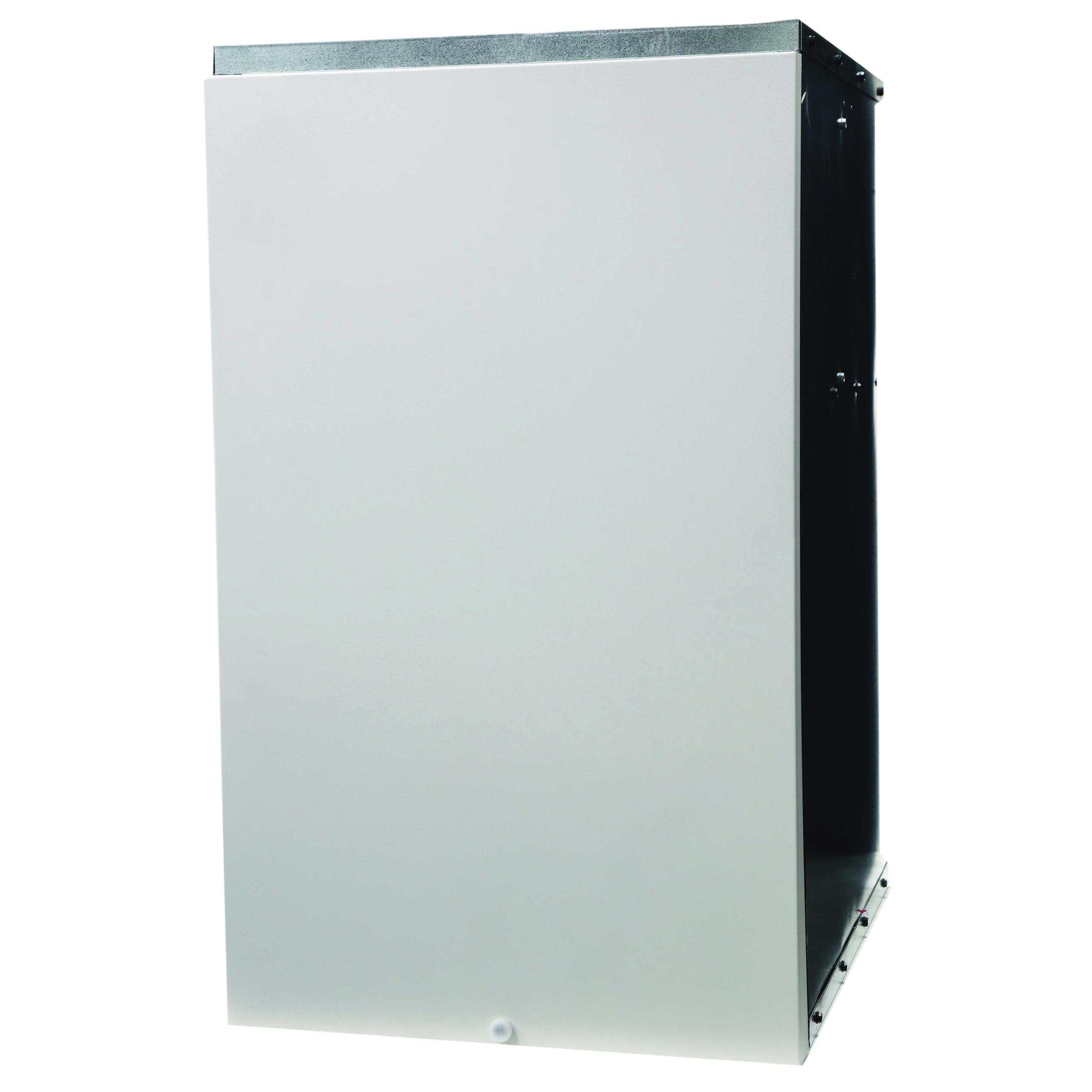

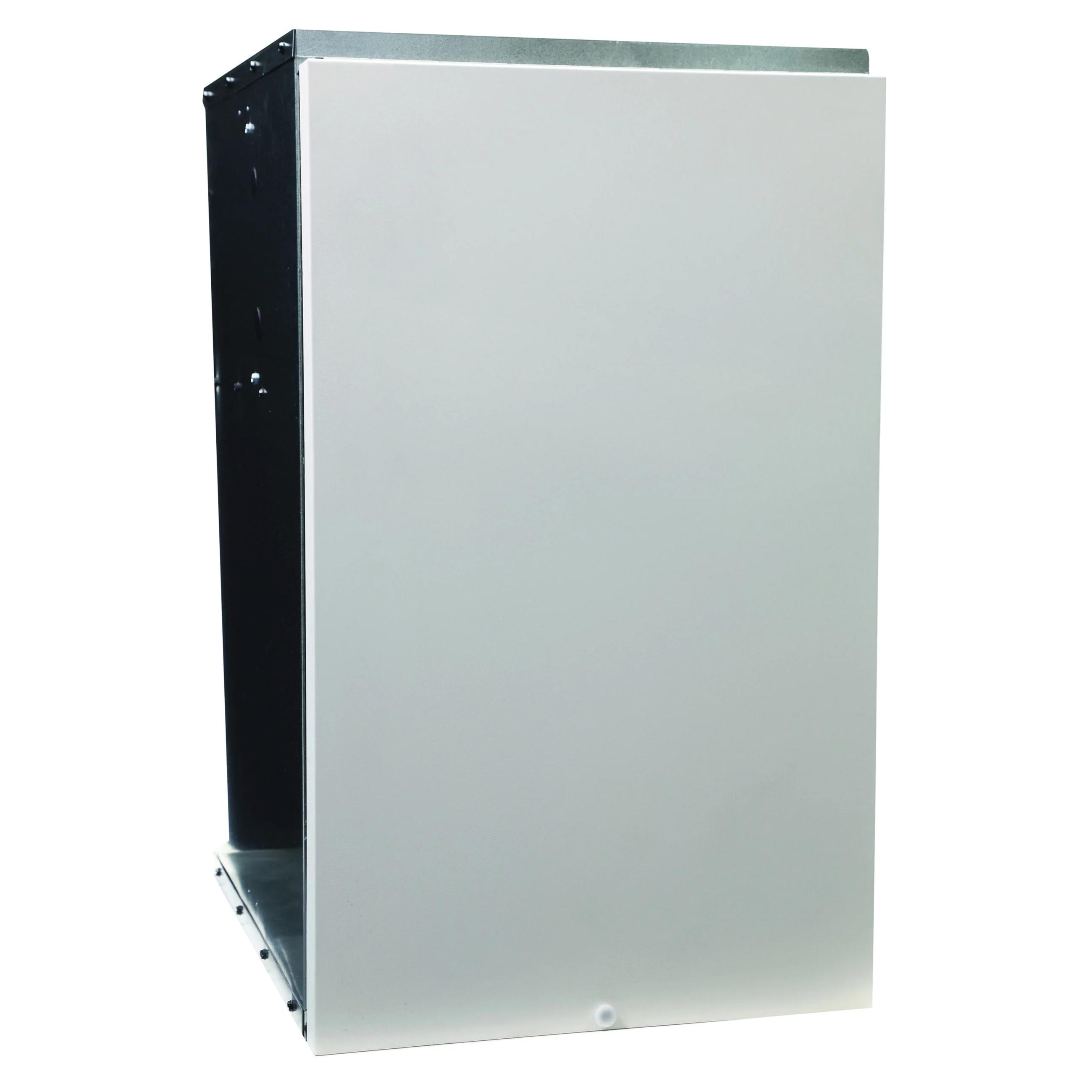

Aspen High-Efficiency Home Electric Furnace, AEN Series, 208/240 V, 50 A, 10 kW, 1 ph Phase, ECM Motor, 60 A Fuse Rating, Down Flow, Steel, Finish: Painted, 33 in H x 19-3/4 in W x 25-1/4 in D
- APPLICATION VERSATILITY - One model that delivers 2 to 5 tons of cooling or heating airflow. Upflow (with MAD coil box) and downflow applications. Can be installed in closet and alcove

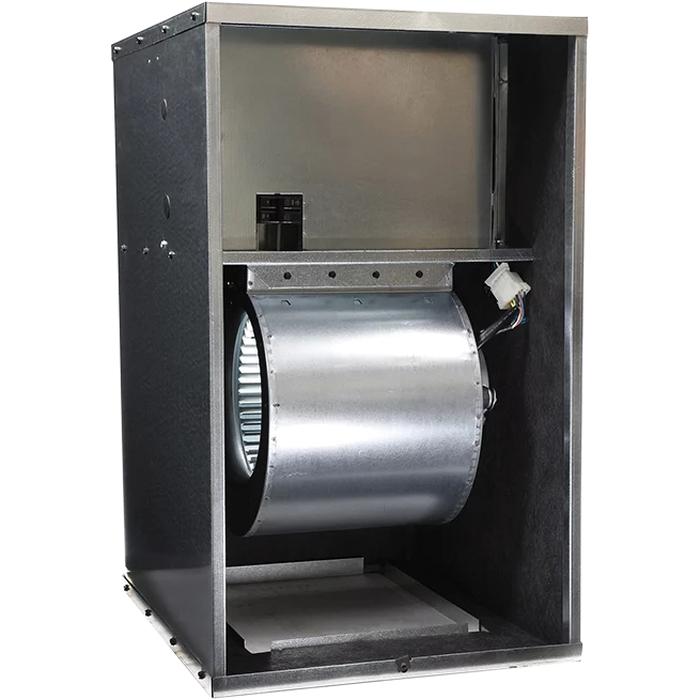

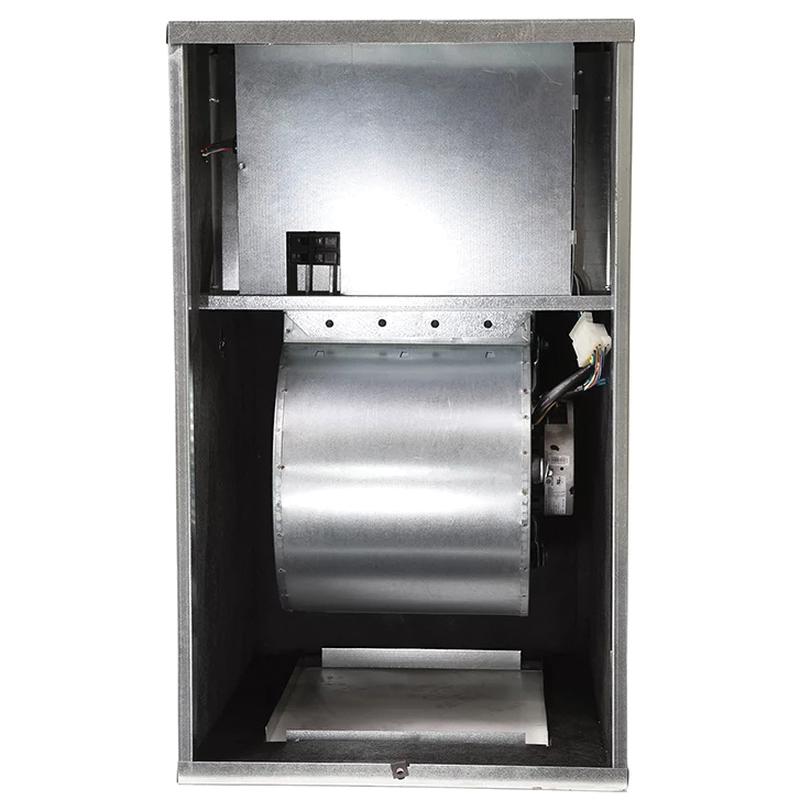

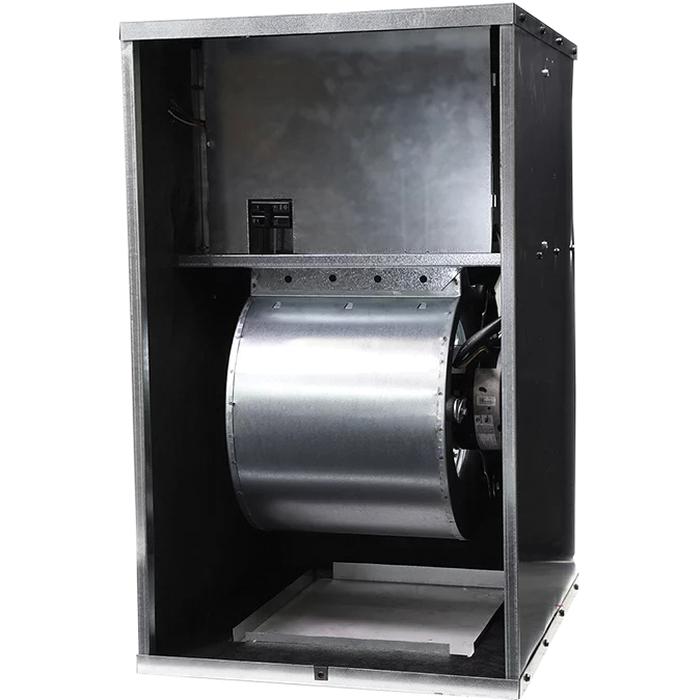

- MOTOR - Constant torque ECM speeds and torques are controlled by software embedded in the motor to maintain constant torque. Motors are pre-programmed at the factory. Direct drive blowers circulate air quietly and efficiently. Motor speeds and torques programmed in the motor. Blowers mounted on rails so they can be easily removed for service
- CABINET - Sturdy, galvanized steel cabinet with painted front panels. Cabinet fully insulated with 1/2" micro mat non-hygroscopic insulation to prevent sweating and mold growth, to encapsulate glass fibers, and to provide excellent R-value. Stick pins ensure insulation remains in place
- MODULAR ELECTRIC HEAT KITS - Heat kits available with either circuit breakers or terminal blocks. Available from 3 to 20 KW. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel
- ELECTRONIC CIRCUIT BOARD - Electronic circuit board provides 30 secs ON/OFF blower time delay extracting more heat/cool from the coil. Automotive pull-style fuse integrated into board for easy diagnosis and replacement of fuse
