| Amperage Rating | : | 15 A |
| Body Material | : | Polycarbonate |
| Color | : | White |
| Contact Material | : | Brass |
| Dielectric Strength | : | 2000 V |
| Frequency Rating | : | 60 Hz |
| Grounding | : | Grounding |
| Height | : | 2.813 in |
| Indicator Type | : | Visual |
| Interrupt Rating | : | 20 A |
| Length | : | 4-5/8 in |
| Mounting Type | : | Flush |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph |
| Short Circuit Rating | : | 10 kA |
| Temperature Rating | : | -35 to 66 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 2 in |
| Wire Size | : | 14 to 10 AWG |

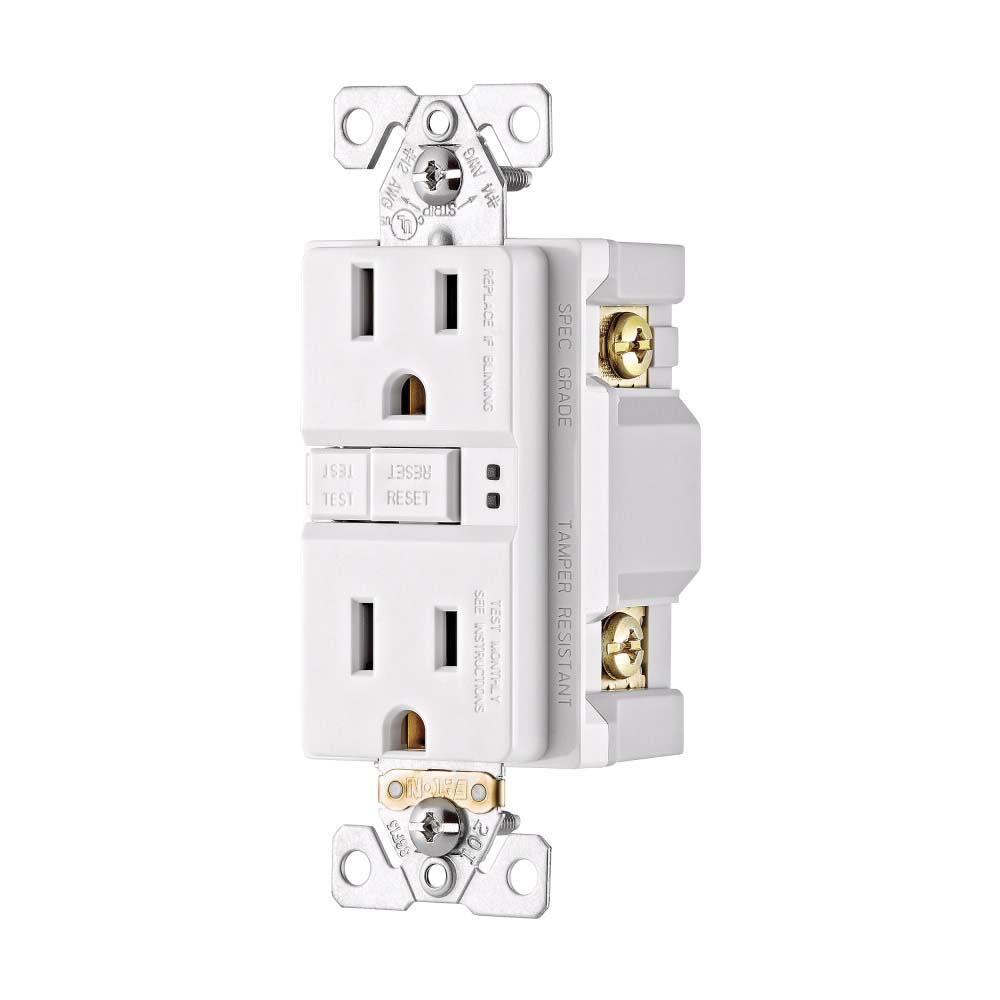

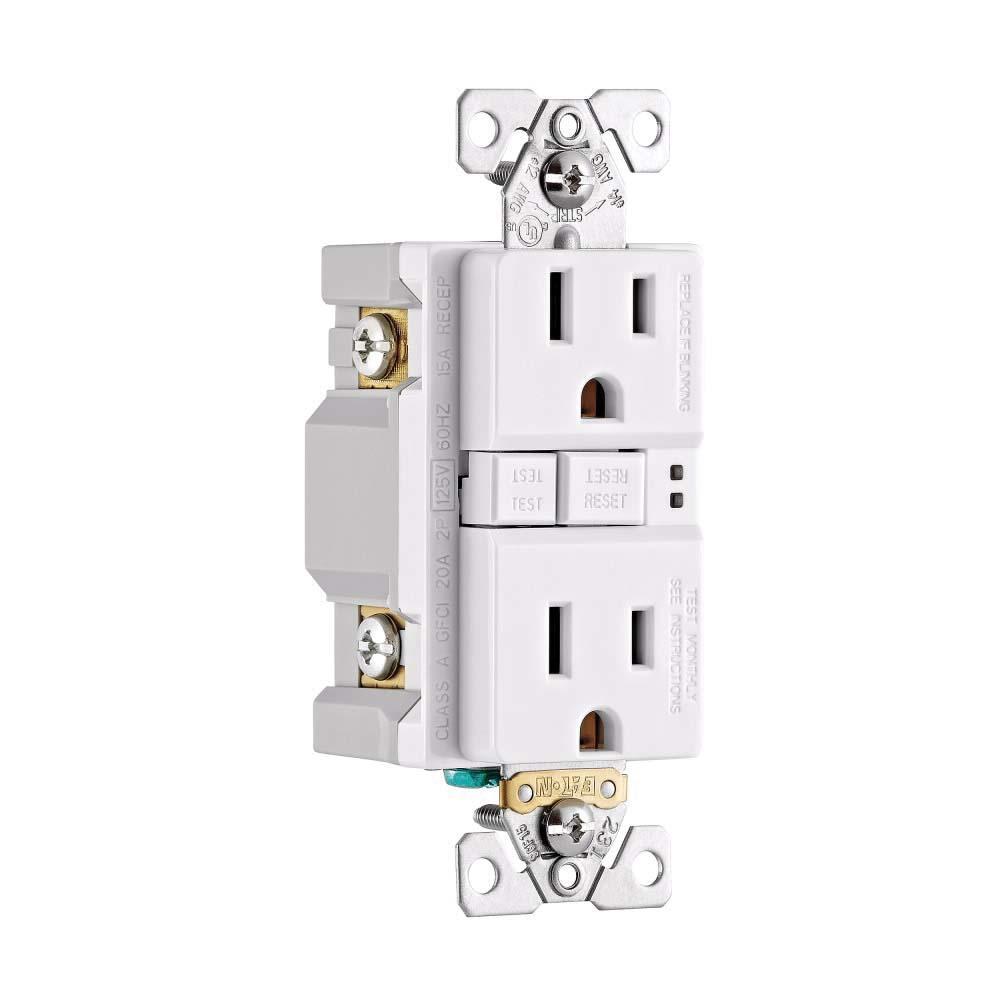

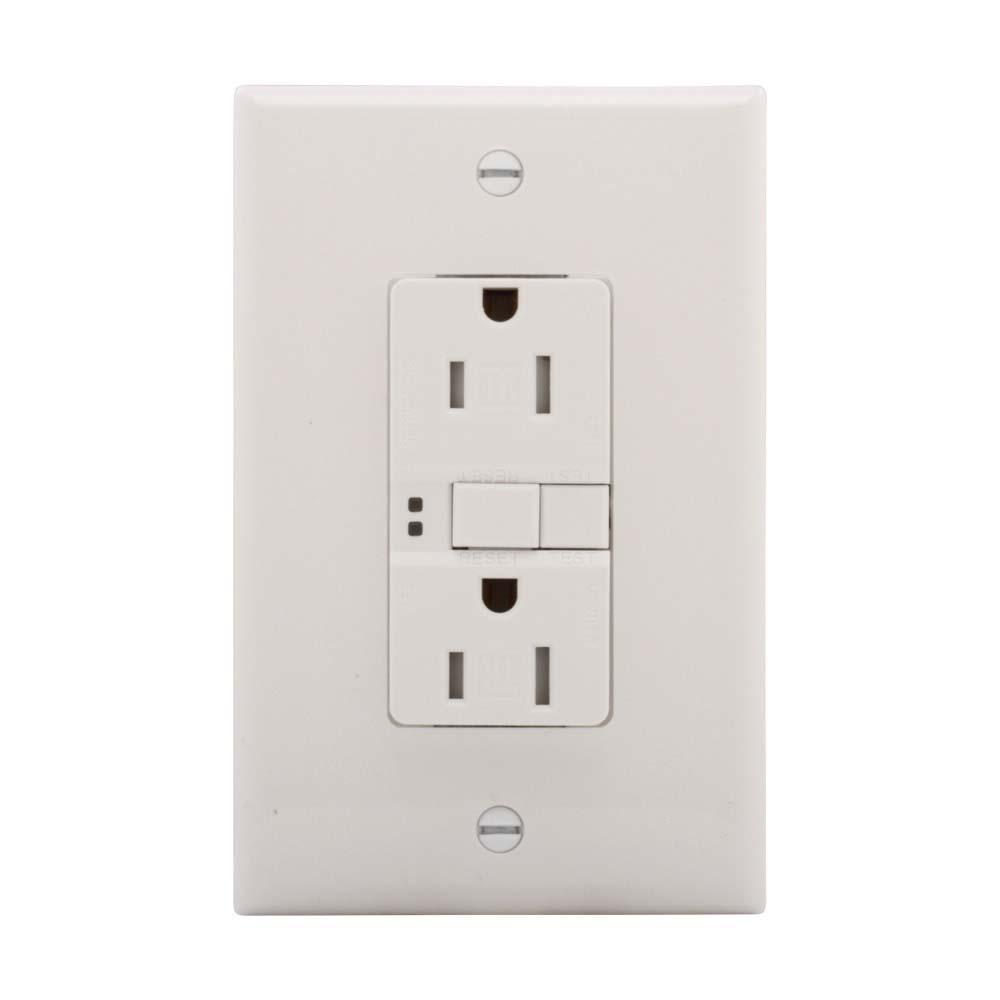

Arrow Hart Receptacle, 125 VAC, 15 A, 60 Hz, 1 ph Phase, 20 A Interrupt Rating, 10 kA Short Circuit, 2 Poles, 3 Wires, 14 to 10 AWG Wire, Grounding Grounding, NEMA Rating: NEMA 5-15R, 2000 V Dielectric Strength, Visual Indicator, Flush Mounting, Back Wired, Side Wired Terminal, Polycarbonate Body, Brass Contact, White, -35 to 66 deg C, 4-5/8 in Length, 2 in Width, 2.813 in Height
