| Amperage Rating | : | 15 A |
| Blade Material | : | Brass |
| Color | : | Black/White |
| Conductor Size | : | 18 to 12 AWG |
| Cord Diameter | : | 0.33 to 0.66 in |
| Dielectric Strength | : | 1000 V |
| Grade | : | Industrial |
| Height | : | 2.1 in |
| Housing Material | : | Nylon |
| Length | : | 2.23 in |
| Mounting Type | : | Screw |
| NEMA Rating | : | NEMA 5-15P |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Screw Material | : | Steel |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 125 V |
| Width | : | 2.59 in |

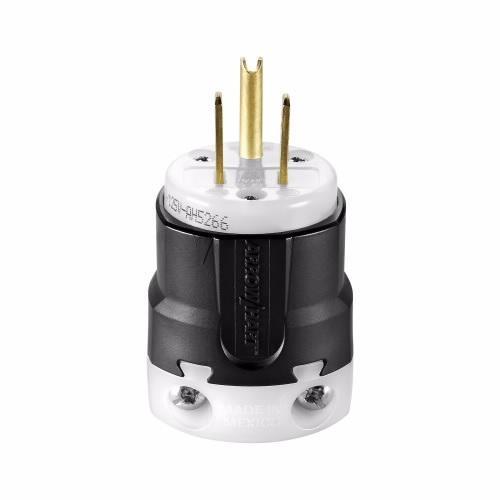

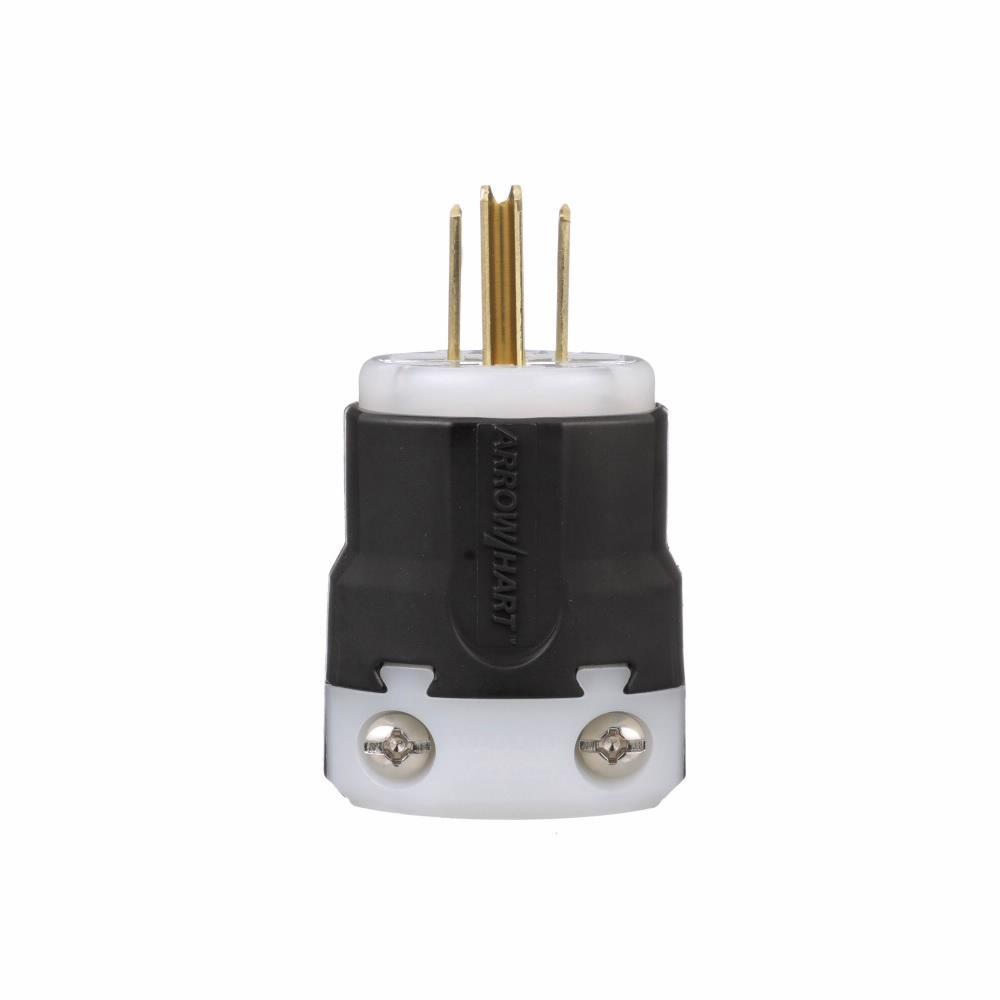

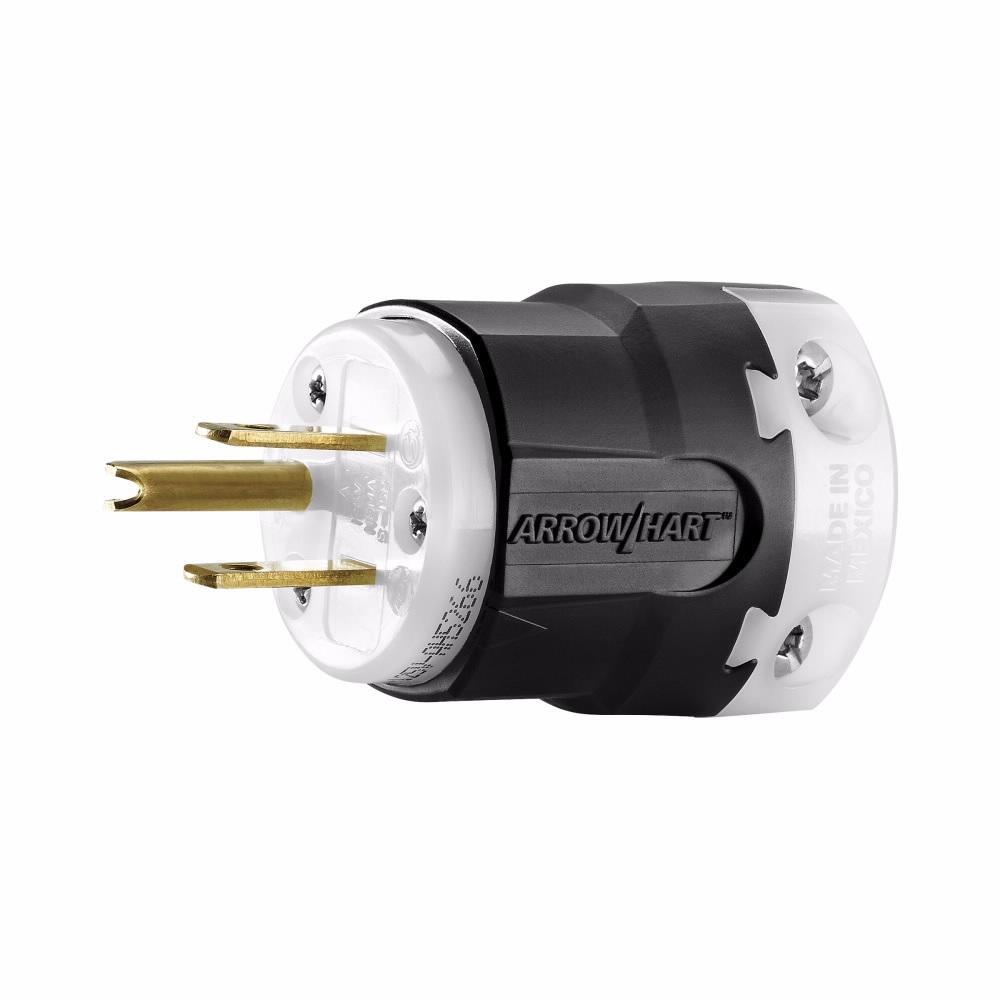

Arrow Hart Blade Plug, 125 V, 15 A, 2 Poles, 3 Wires, 0.33 to 0.66 in Cord Diameter, 18 to 12 AWG Conductor, Industrial Grade, NEMA Rating: NEMA 5-15P, Screw Terminal, 1000 V Dielectric Strength, Screw Mounting, Nylon Housing, Brass Blade, Steel Screw, Black/White, -40 to 75 deg C, 2.23 in Length, 2.59 in Width, 2.1 in Height
- high-impact-resistant thermoplastic housings with easy-grip grooves
- Assembly screws are speed-threaded and captive, reducing installation time

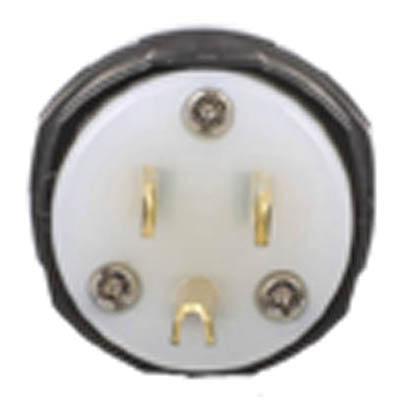

- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Terminal screws backed out and ready for wiring
- Back-wire
- Grounding
