| Additional Information | : | Non-Ferrous Impeller Material |
| Connection Size | : | 1 x 1-1/4 x 1-1/2 in |
| Connection Type | : | NPT Flanged |
| Dimensions | : | 15 in L x 10.26 in H |
| Flow Rate | : | 36 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Material | : | Iron |
| Maximum Head | : | 12 ft |
| Maximum Pressure | : | 125 psi |
| Model | : | H-32 |
| Motor Speed Rating | : | 1800 rpm |
| Mounting Type | : | In-Line |
| Phase | : | 1 ph |
| Series | : | H Series |
| Temperature Rating | : | 225 deg F |
| Voltage Rating | : | 115 V |

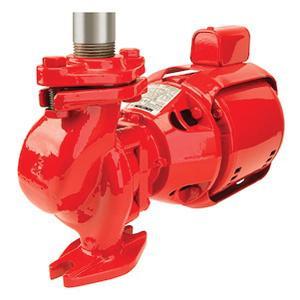

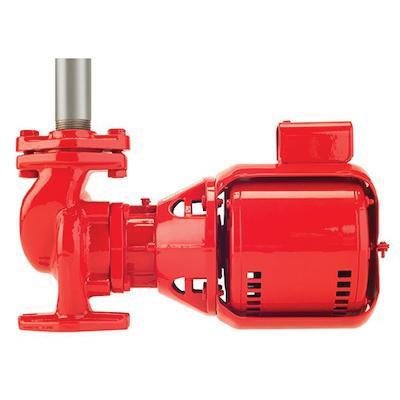

ARMSTRONG Circulator Pump, H Series, Model: H-32, 36 gpm Flow Rate, 12 ft Maximum Head, 115 V, 60 Hz, 125 psi Maximum Pressure, 1800 rpm Motor Speed Rating, 1/6 hp, 1 x 1-1/4 x 1-1/2 in Connection, NPT Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Iron, 15 in L x 10.26 in H, Additional Information: Non-Ferrous Impeller Material
- Standard three-piece design with sleeve - oil lubricated bearing
- Radially split body can be left in-line while servicing pump, eliminating disconnecting of pipes
- Oversized shaft made from special alloy steel
- Balanced centrifugal impeller ensures maximum water delivery in the HVAC system
- Proven seal design made from strong and long-lasting materials for extended operating life
- Three piece modular construction and back pull-out design for easy replacement of wear components
