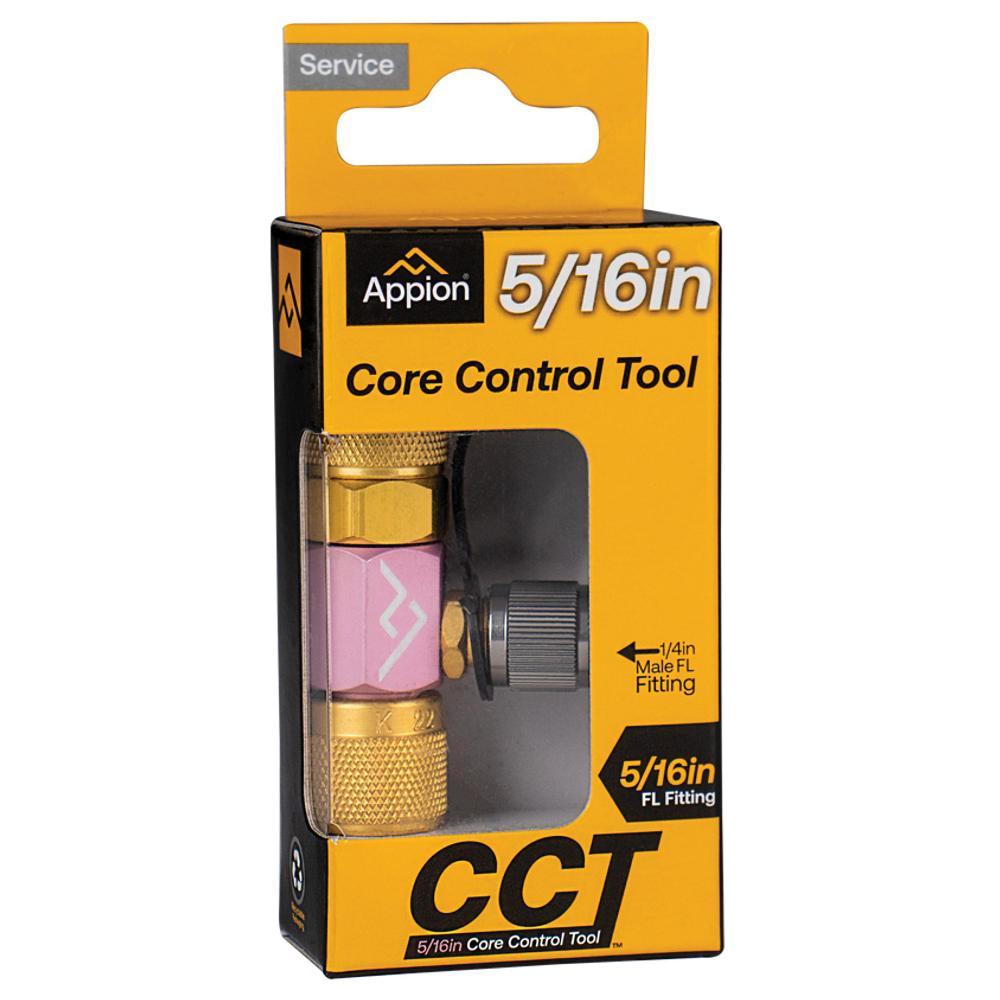

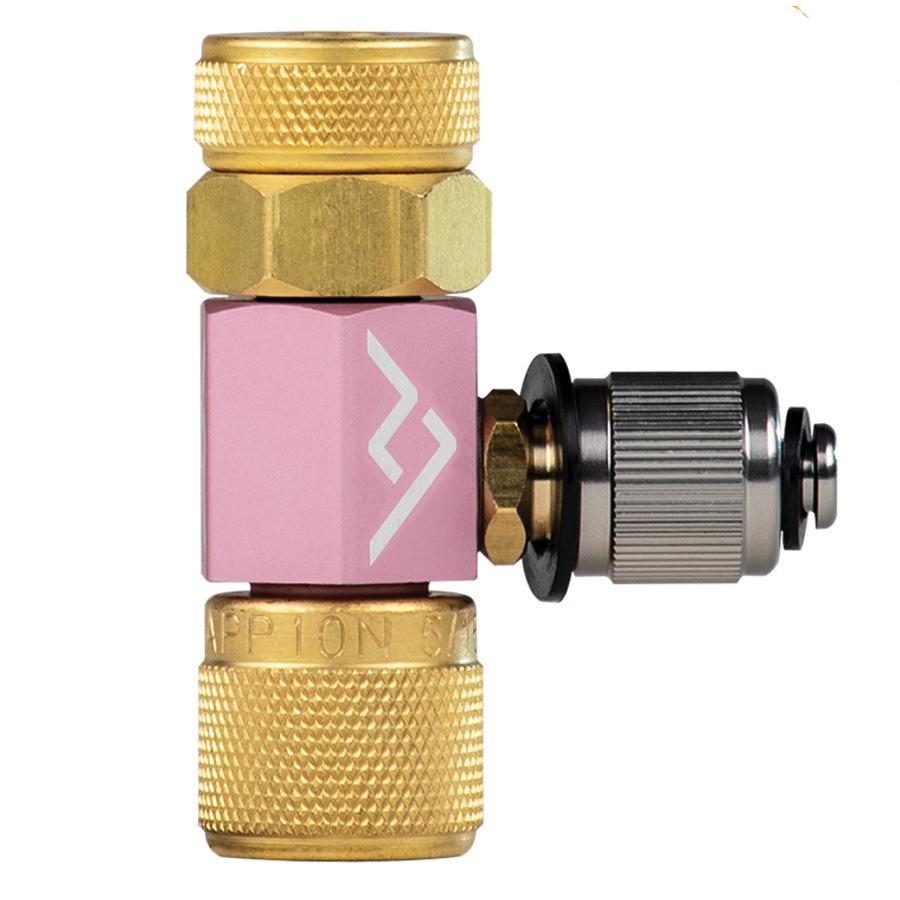

Appion CCT516 Core Control Tool, Aluminum

Appion CCT516 Core Control Tool, Aluminum

Brand: Appion
Part #: 97883
Customer Part #:
Additional Information      :      5/16 in Female Flared x 1/4 in Male Flared Connection
Material      :      Aluminum

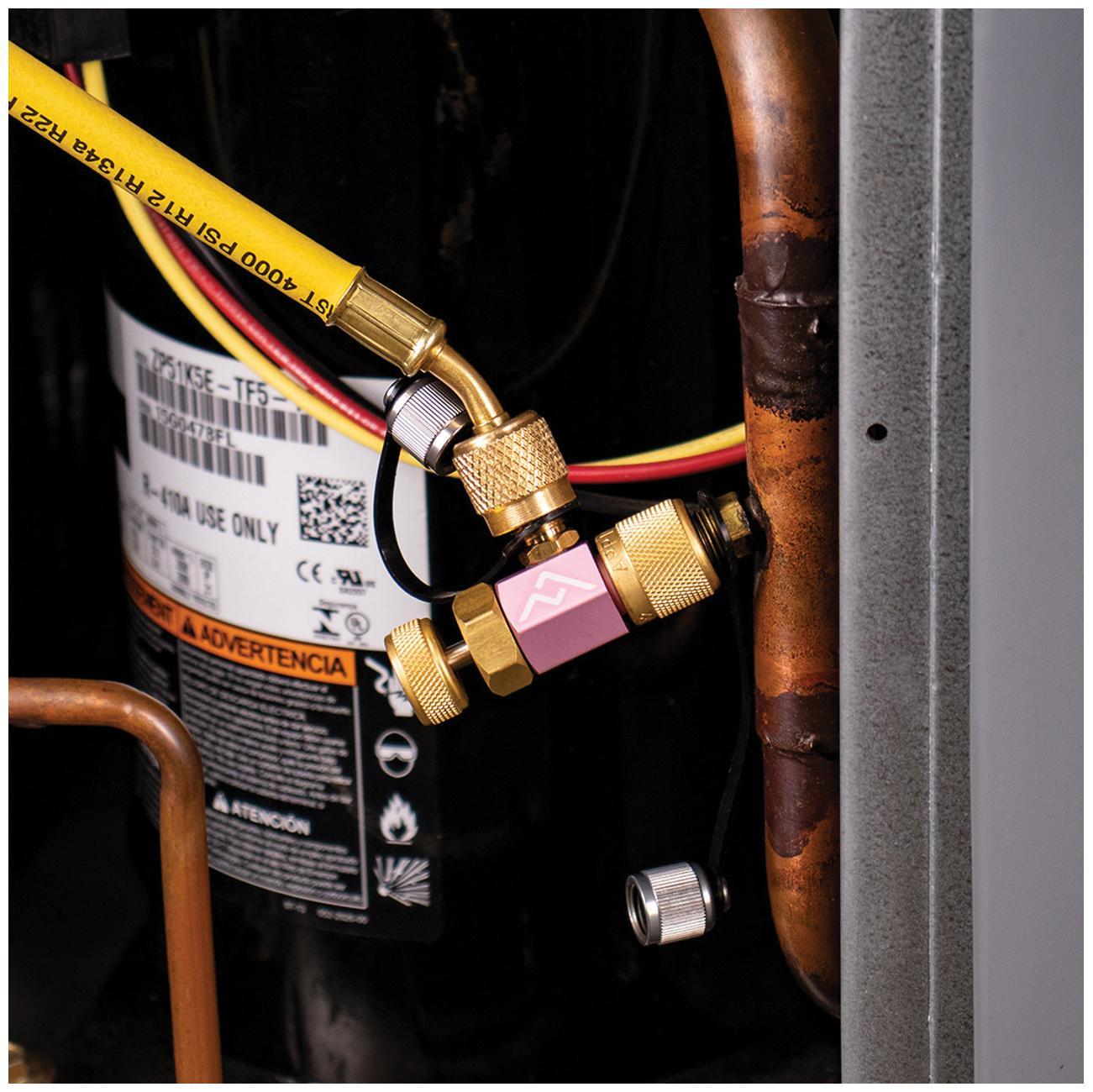

Gain maximum control when depressing a valve core! This low-loss fitting depresses valve cores with ultimate precision, perfect for accurately charging AC systems or servicing high-flow Schrader valves. Quickly connect a digital stub gauge for easy system diagnostics. The advanced back seat seal makes the core control tool perfect for gauge isolation, adding another layer of protection for your vacuum gauge.

Appion Core Control Tool, Aluminum, 5/16 in Female Flared x 1/4 in Male Flared Connection

  • Vacuum rated to 20 um
  • Made from aircraft-grade aluminum for maximum durability
  • Double O-ring design makes for unmatched reliability in high-pressure and a deep vacuum
  • 1/4 in side port for gauge or hose connections
  • Designed for high pressure refrigerants including R410A
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Appion_CCT516_Catalog.pdf
  • Video Link https://youtu.be/F5SmbikCWYk
