| Ball Material | : | RPTFE |
| Body Material | : | Stainless Steel |
| Connection Type | : | FNPT |
| Flow Rate | : | 1.4 gpm |
| Inlet to Outlet Length | : | 2.31 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 125 psi, 400 psi |
| Series | : | 62-100 Series |
| Temperature Rating | : | 350 deg F |

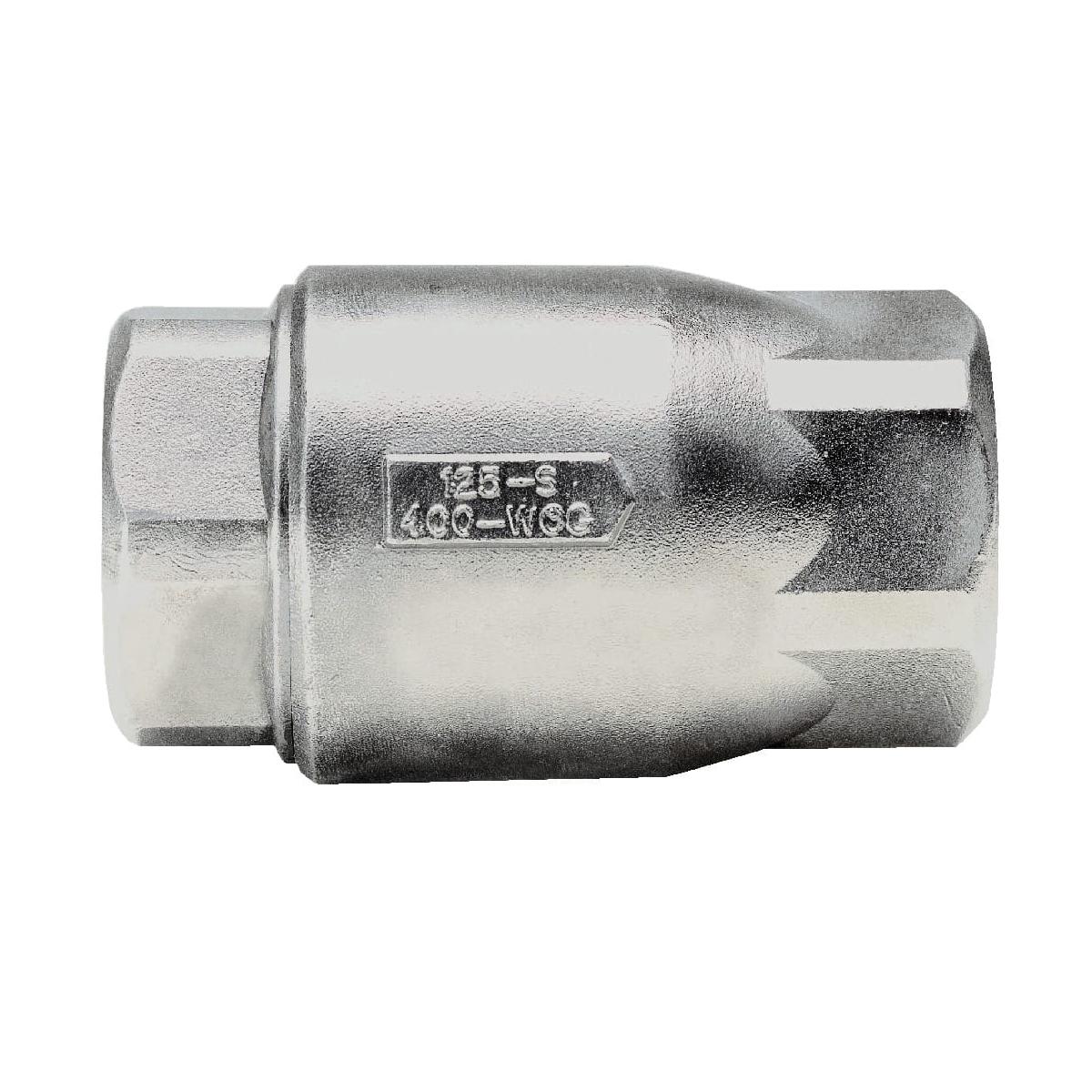

The Apollo® 62-100 series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball Cone® check provide reliable, patented protection against reverse flow.
Apollo® In-Line Check Valve, 62-100 Series, 1/2 in Nominal, FNPT Connection, 125 psi, 400 psi, 350 deg F, 1.4 gpm Flow Rate, 2.31 in Inlet to Outlet Length, Stainless Steel Body, RPTFE Ball, Lead-Free
- Standard 0.5 psi cracking pressure
- Unique design (U.S. Patent # 4172465)
- Spring loaded for fast seating action
- Center guided, radial alignment never needed
- Straight-through flow minimizes pressure loss
