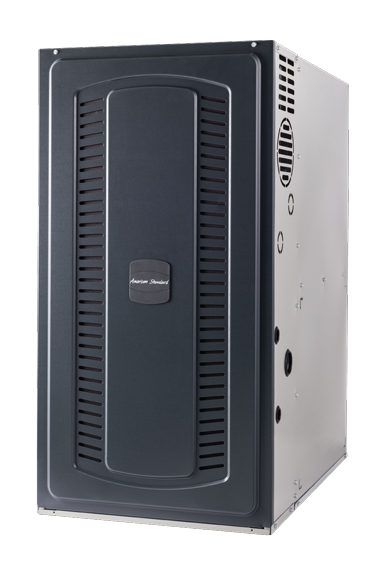

American Standard S Series S8X1A040M3PSCA 3T 80 AFUE Non-Condensing Single Stage Gas Furnace

AFUE Rating	:	80 %
Configuration	:	Multi - Position
Energy Star Compliant	:	No
Frequency Rating	:	60 Hz
Fuel Type	:	Natural Gas
Fuse Rating	:	15 A
Input BTU Rating	:	40,000 Btu/hr
Model Number	:	S8X1
Model	:	S8X1
Motor Type	:	PSC
Number of Stages	:	Single
Phase	:	1 ph
Series	:	S Series
Tonnage	:	3.0 Ton
Voltage Rating	:	115/120 V
Width	:	14.5 in

American Standard S Series - S8X1A040M3PSCA, 3T, 80% AFUE, 40,000 BTU, 120V, PSC Fan Motor, Mutli-Position, Non-Condensing Single Stage Gas Furnace

Efficient airflow design reduces electrical energy use34 inch tall- Lighter, easier to move and fit into tight spaces like short basements or tight closets Works great with larger, high-efficiency coilsImproved airflow efficiency,Single piece belly band/ motor arm assemblyRain shield over IFC keeps condensate off the controlFour–Way Multi-PoiseAt least 400 CFM/ton at 0.5 in. H20 external static pressure
