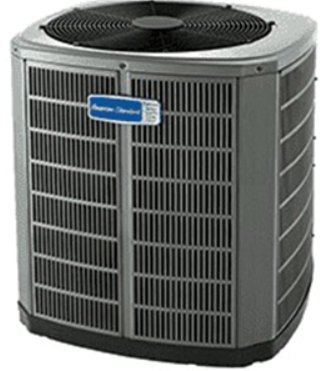

American Standard Platinum Series 4A6V8X36A1000A 3T 18 SEER Variable Speed Heat Pump
American Standard Platinum Series 4A6V8X36A1000A 3T 18 SEER Variable Speed Heat Pump
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385202
MPN: 4A6V8X36A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 25 A |
| BTU Cooling Rating | : | 36,000 Btu/hr |
| Color | : | Gray |
| Compressor Stages | : | Variable Speed |
| Compressor Type | : | Duration™ Variable Speed |
| Dimensions | : | 41 in H x 33 in W x 30 in D |
| EER2 | : | 12.0 |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 35 A |
| HSPF2 Range | : | 10.0 |
| Liquid Line (OD) | : | 3/8 in |
| Material | : | Steel |
| Max Fuse | : | 35 amps |
| Min SEER | : | 18.0 |
| Model | : | 4A6V8X |
| Number of Stages | : | Variable Speed |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 18 |
| SEER2 Range | : | 10.0 |
| Series | : | Platinum |
| Sound Level | : | 70 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3 |
| Tonnage | : | 3.0 Ton |
| Volts | : | 208/230 V |
American Standard Platinum Series 4A6V8X36A1000A, 3T, 18 SEER, 36,000 BTU, 10.0 HSPF, 208/230V, Variable Speed Heat Pump
G60 galvanized steel and painted with a weather-resistant powder paint on all louvered panelsInverter driven scroll compressor with 25 to 100% output capacity on heat pumpsThe Spine Fin outdoor coilLowAmbientCoolingA factory supplied, field installed filter is standard.This outdoor unit contains the American Standard Link or AccuLink
