| Additional Information | : | 0.3778 hp at 0 in Static Pressure, 0.4625 hp at 0.3 in Static Pressure, 4-5/16 in D Dimensions, 4169 cfm at 0.3 in Static Pressure, 5301 cfm at 0 in Static Pressure, Wing Blade |
| Blade Diameter | : | 22 in |
| Blade Material | : | Aluminum |
| Number of Blades | : | 3 |
| Pitch | : | 27 deg |
| Rotation Type | : | CW |
| Speed Rating | : | 1140 rpm |
| Suitable For Use With | : | Air Cooled Condensers, Power Roof Ventilators, Residential Air Conditioner Units, Heaters, Heat Pumps, Fan Coil Units, Roof Top Air Conditioners |

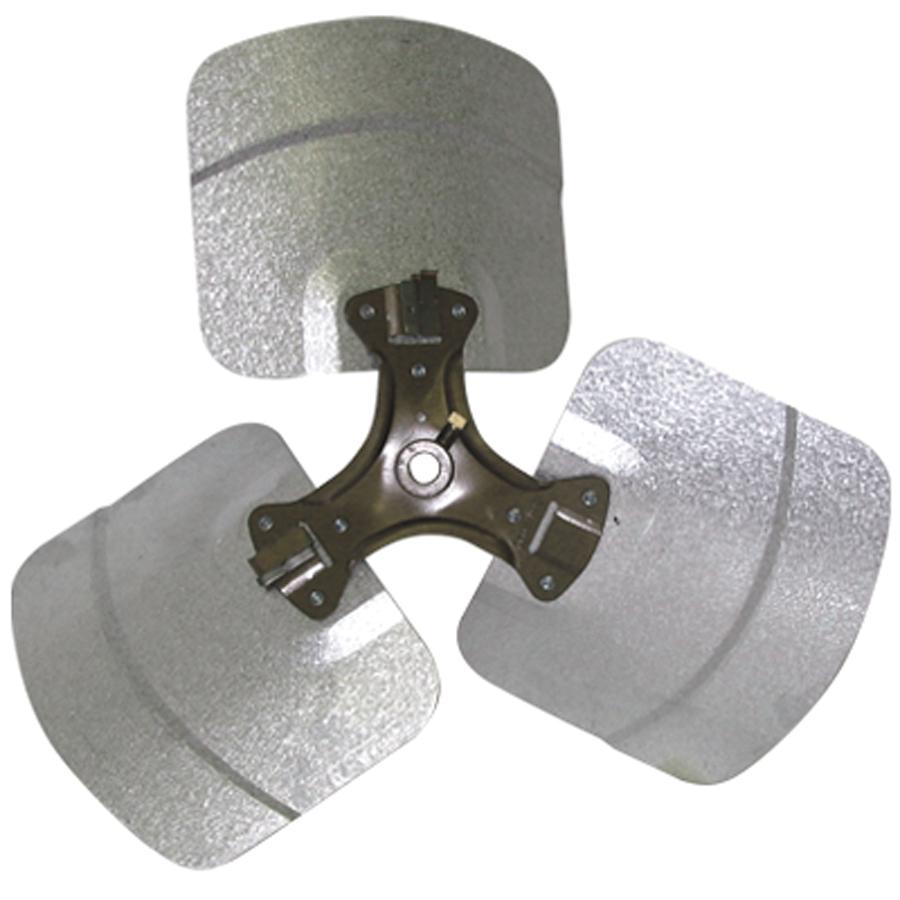

airMARS 3 wing adapter, heavy duty condenser fan blades are designed for rigorous R/HVAC low pressure applications. They will accommodate universal hex/round adapter hubs. airMARS adapter fan blades are durable, efficient & quiet. They are manufactured using high strength aluminum alloy for the blades & sturdy steel for the blade spiders. Blade depths and pitches specified for airMARS adapter fan blades allow for the replacement of a broad range of commonly used fan blades.
airMars® Fan Blade, 22 in Blade Dia, 27 deg Pitch, 3 Blades, CW, 1140 rpm Speed Rating, Aluminum Blade, For Use With: Air Cooled Condensers, Power Roof Ventilators, Residential Air Conditioner Units, Heaters, Heat Pumps, Fan Coil Units, Roof Top Air Conditioners, Additional Information: 0.3778 hp at 0 in Static Pressure, 0.4625 hp at 0.3 in Static Pressure, 4-5/16 in D Dimensions, 4169 cfm at 0.3 in Static Pressure, 5301 cfm at 0 in Static Pressure, Wing Blade
- Uses universal hex/rnd adapter hubs
- Designed for rigorous R/HVAC low pressure app
- Durable, efficient & Quiet
- High strength aluminum alloy
