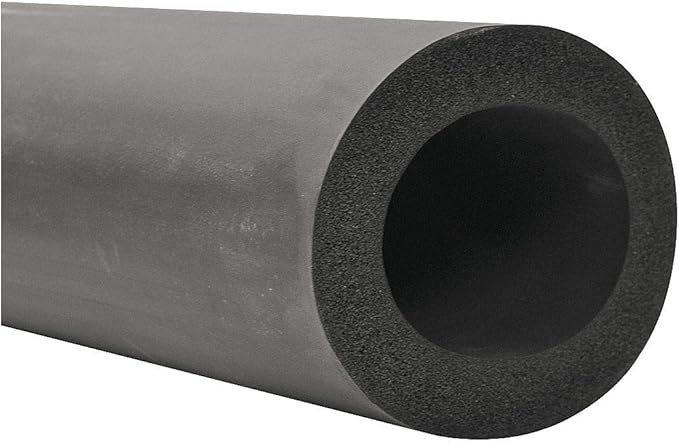

Aeroflex Aerocel AC 404-AC5834 Elastomeric Pipe Insulation, 5/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, 4.1 R-Value, -297-257 °F, Unslit, Unfaced

Color	:	Black
Connection Type	:	Unslit
Construction	:	Closed Cell, Flexible
Domestic/Import	:	Domestic
Facing Type	:	Unfaced
For Pipe Size	:	5/8" (Copper Tube)
For Pipe Type	:	Copper, Iron Pipe, Stainless Steel
Inside Diameter	:	5/8 "
Length	:	72 "
Material	:	EPDM
Model	:	404-AC5834
Nominal Size	:	5/8 "
Outside Diameter	:	2-1/8 "
R-Value	:	4.1
Series	:	Aerocel AC
Style	:	Unslit Tube
Temperature Rating	:	-297-257 °F
Thermal Conductivity	:	0.245 BTU·in/h·ft²·°F (At 75°F)
Thermal Resistance	:	R-4.1
Wall Thickness	:	3/4 "

Aeroflex Elastomeric Pipe Insulation, Model: Aerocel AC, 5/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, 4.1 R-Value, -297-257 °F, Unslit, Unfaced, EPDM, For Copper, Iron Pipe, Stainless Steel Pipe, 0.245 BTU·in/h·ft²·°F (At 75°F), Closed Cell, Flexible Construction, Unslit Tube, 2-1/8" Outside Diameter, Black, Domestic

Constructed from flexible, closed-cell EPDM rubber for efficient thermal insulation.Naturally UV resistant, reducing the need for additional coatings or protection.Suitable for a wide service temperature range from -297°F to +300°F.Features low thermal conductivity (0.245 BTU·in/h·ft²·°F) to minimize energy loss.Rated 25/50 for flame spread and smoke developed (ASTM E84).Resists moisture absorption and supports system longevity.Versatile use across HVAC, refrigeration, plumbing, chilled water, and heating applications.
